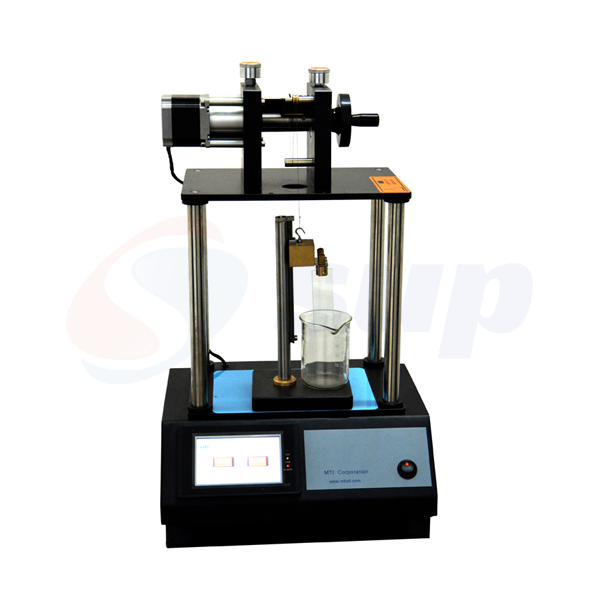

Color Touchscreen Programmable Spin Dip Coater for Precision Thin Film Application

Product Name: Color Touchscreen Programmable Dip Spin Coater for Precision Thin Film Application

Product Model: PTL-MM02

Product Description: The PTL-MM02 Programmable Dip Spin Coater utilizes a lifting wire to vertically immerse the sample, allowing it to soak in liquid film material for a set period before lifting it out. This process enables a certain thickness of film to grow on the sample's surface.

With its compact design, the PTL-MM02 saves valuable laboratory space and features simple operation, making it suitable for beginners. Its easy cleaning process further enhances usability. Consequently, this machine is widely used in laboratories across universities, research institutions, and corporate facilities.

EMAIL

Product Description

The PTL-MM02 Programmable Spin Dip Coater features PLC program control, allowing users to set parameters such as lifting speed, immersion time of the sample in the liquid film material, entry speed of the sample into the liquid, the number of cycles for immersion and extraction, and drying time for the sample.

Additionally, the machine can be equipped with a constant temperature drying oven, ensuring that the film growth process occurs at a stable temperature as needed.


Product Features

1. Features a color touchscreen for easy parameter setting and adjustment.

2. Certified with CE standards.

3. Utilizes suspended motor technology for vibration reduction.

4. Incorporates a high-precision stepper motor.


Product Parameters

Product NameColor Touchscreen Programmable Spin Dip Coater for Precision Thin Film Application
Product ModelPTL-MM02

Installation

Requirements

This equipment is required to operate under the following conditions: temperature 25°C ± 15°C and humidity 55% RH ± 10% RH.

1. Water: Not required.

2. Power: AC 220V, 50Hz, must have good grounding.

3. Gas: Not required.

4. Workbench: Dimensions 800 mm x 600 mm x 700 mm, with a load capacity of over 200 kg.

5. Ventilation: Not required.


Main

Parameters

1. Power Supply: 220V

2. Power: 50W

3. Lifting Speed: 1 mm/min to 200 mm/min

4. Effective Immersion Length: 60 mm

5. Immersion and Drying Time Settings: 1-999 seconds

6. Number of Lifts: 1-20 times

7. Sample Dimensions: 75 mm x 25 mm x 2.5 mm


Product

specifications

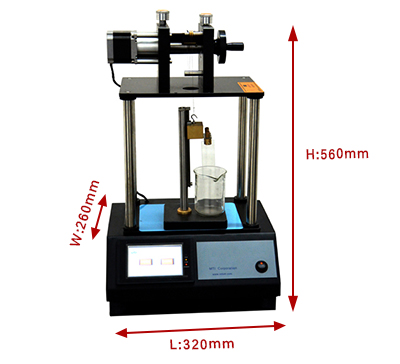

Dimensions: 320mm×260mm×560mm

Weight: 17 kg



Standard Accessories

Item No.Product Name
Qty
1

Anti-Swing Control Base

1 set
2Sample Fixture1 set
3Loading Cup1 set
4Lifting Wire3 set


Optional Accessories

Item No.Product NameQty
1

Quick Sample Fixture

Optional
2

Lifting Wire

Optional
