Element Symbol:GaAs
CAS:1303-00-0
Model:Sup-GaAs

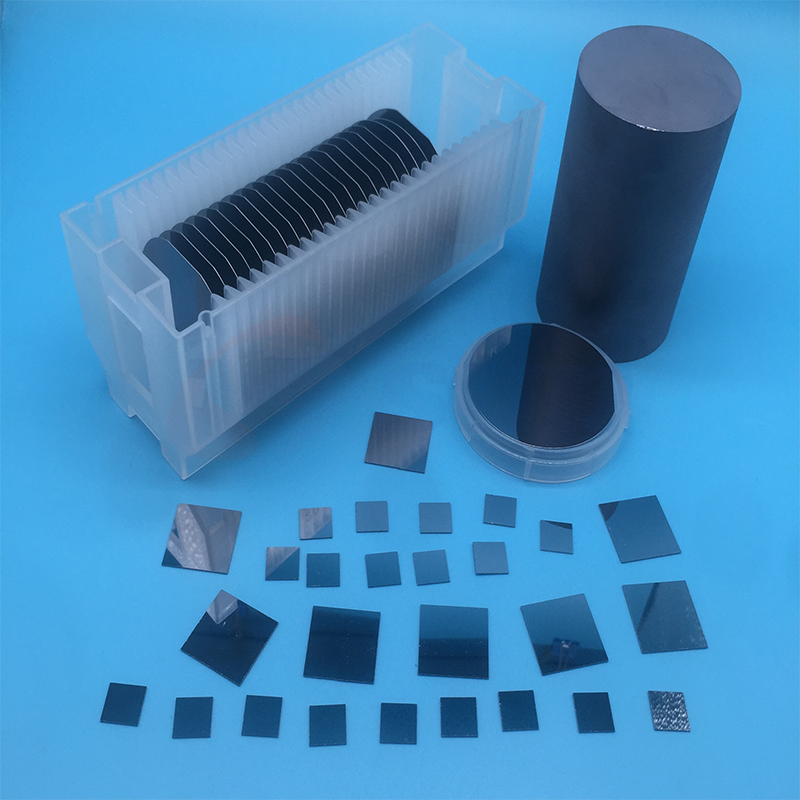

Shape:Wafer, Disc or ingot
Thickness:[N/A]
Dimension:[N/A]
(Note: Purity, shape, thickness, and dimensions can all be customized)
Gallium arsenide (GaAs) is an important semiconductor material composed of gallium and arsenic. It exhibits excellent electronic and optoelectronic properties, particularly in high-frequency and high-power applications. The bandgap of GaAs is approximately 1.43 eV, making it widely used in photodetectors, lasers, solar cells, and microwave devices. Compared to silicon, GaAs has higher electron mobility and a smaller energy bandgap, making it suitable for high-speed communications and optoelectronic devices.
Note: Purity, shape, thickness, and dimensions can all be customized,Please feel free to contact us for more details.
Main Property Parameters | |||||||
Single Crystal | Doping | Conductivity Type | Carrier Concentration cm-3 | Dislocation Density cm-2 | Growth Method | Standard Substrate | |
GaAs | None | Si | / | <5×105 | LEC HB Dia3″ | Dia3″×0.5 Dia2″×0.5 | |
Si | N | >5×1017 | |||||
Cr | Si | / | |||||
Fe | N | ~2×1018 | |||||
Zn | P | >5×1017 | |||||
Dimension(mm) | 25×25×0.5mm、10×10×0.5mm、10×5×0.5mm、5×5×0.5mm According to customer needs, substrates with special orientation and size can be customized. | ||||||
Surface Roughness | Surface roughness(Ra):<=5A | ||||||
Polishing | One side or two sides | ||||||
Packaging | Clean bag (100), Super clean room (1000) |
