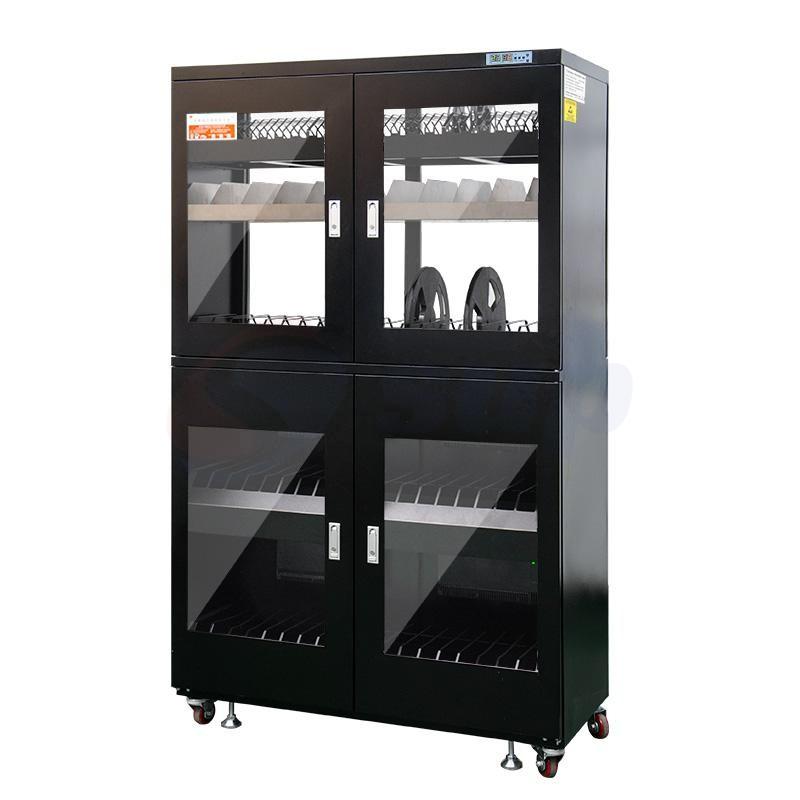

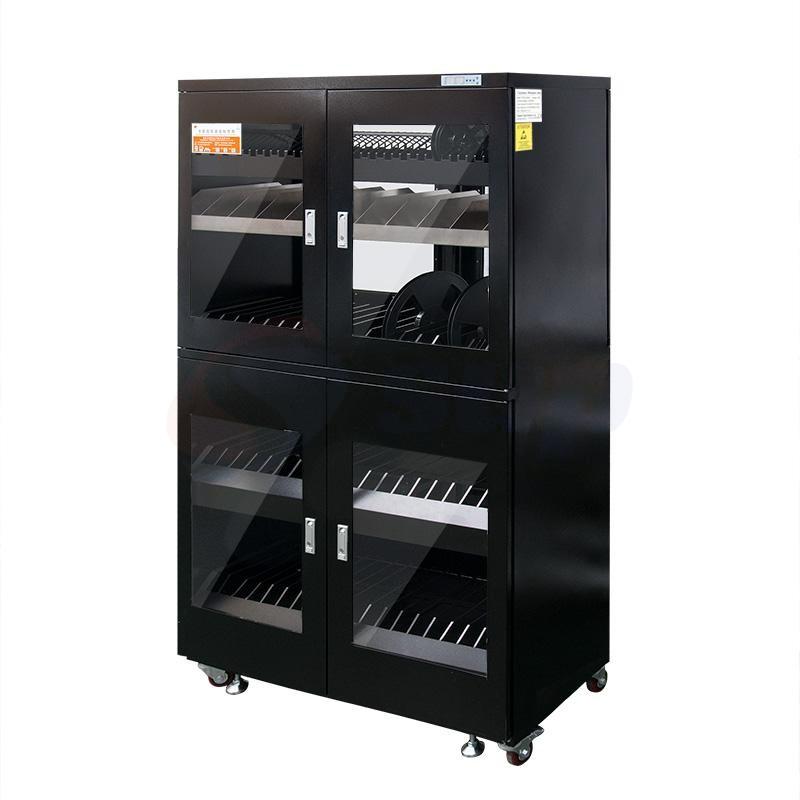

Nitrogen Dehumidification Dry Cabinet for IC Chips SMT

Product Description

1. Humidity Sensor

The product adopts a high-precision sensor from the Swedish brand Sensirion, with an error margin of less than ±2%RH.

2. Temperature and Humidity Display

The LED ultra-bright digital screen independently displays temperature and humidity. Temperature range is -9℃ to 99℃, with an accuracy of ±1℃. Humidity range is 0% to 99%RH, with an accuracy of ±3%RH. It also supports power-off memory function, so there is no need to reset the humidity after a power outage.

3. Power System

The product is equipped with a UL and CE certified Switching Power supply, ensuring safety and reliability.

4. Cabinet Structure

Material: Made of 1-1.2mm high-quality steel plate, featuring high-strength sealing design and excellent load-bearing capacity.

Surface treatment: Overall powder coating provides excellent corrosion resistance.

Mobility: The bottom is equipped with 360° rotating brake casters for easy movement.

Anti-static version: Adopts conductive powder coating, with a surface resistivity of 10⁶-10⁹Ω.

5. Cabinet Door Window

The cabinet door is fitted with 5.0mm high-strength tempered glass and a flat pressurized integrated anti-theft lock.

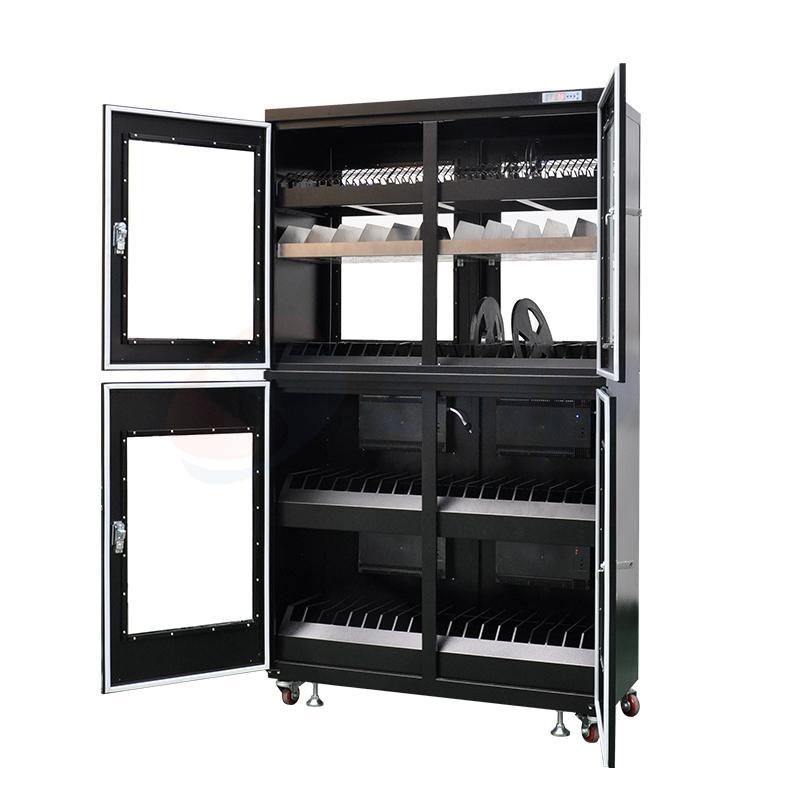

6. Load-bearing Shelf

Design: The shelf features a perforated design to accelerate air circulation.

Load capacity: Single-layer uniform load capacity is 100kg.

Adjustable height: Allows for optimized space utilization.

7. nitrogen cabinet Function

Intelligent nitrogen control: Automatically cuts off nitrogen supply when humidity reaches the set standard, and resumes supply when it exceeds, saving 70% of nitrogen consumption.

Uniform nitrogen distribution: Equipped with over 30 multi-point jet structures to ensure even nitrogen distribution.

Expandability: Can be expanded into a nitrogen moisture-proof combination cabinet, compatible with electronic moisture-proof box functions.

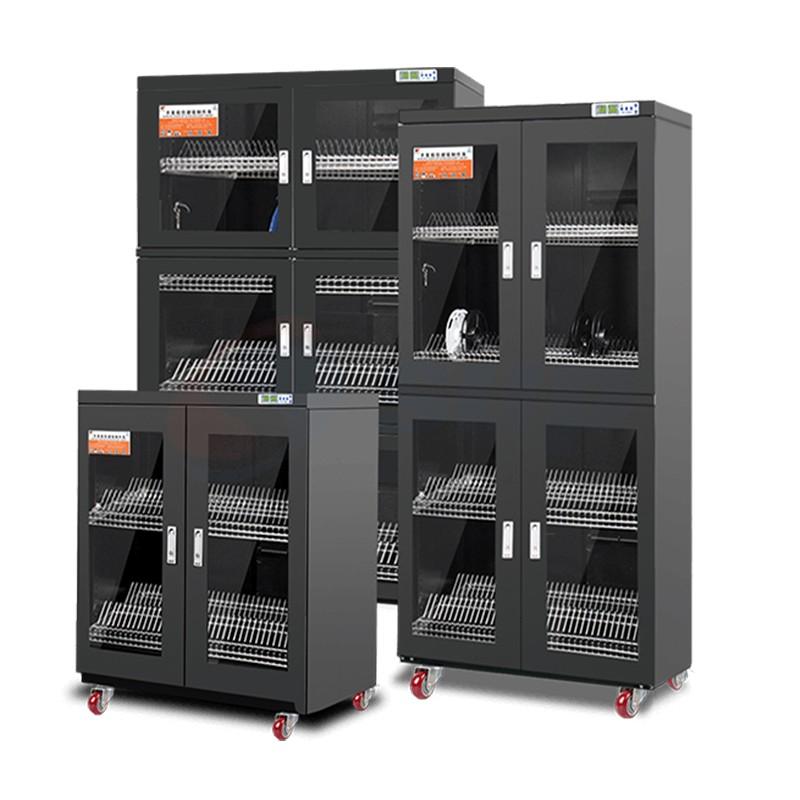

You can choose cabinets of different sizes based on your needs:
