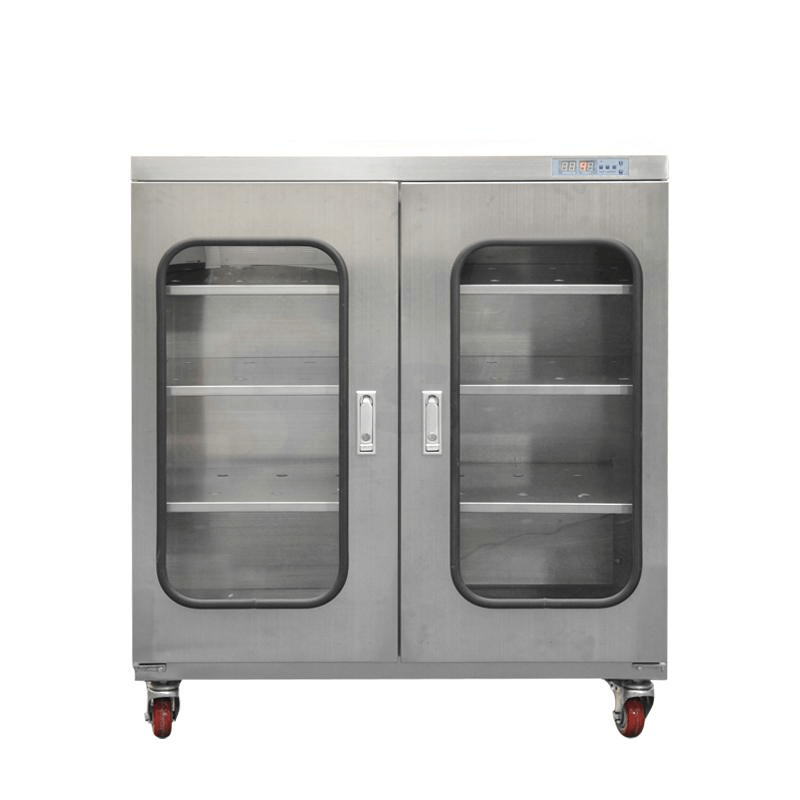

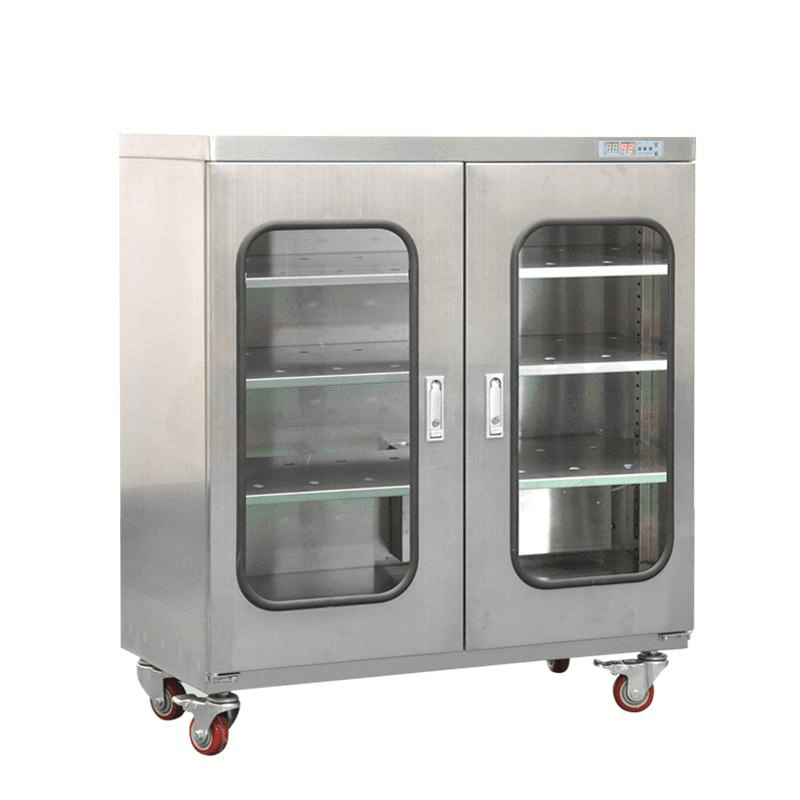

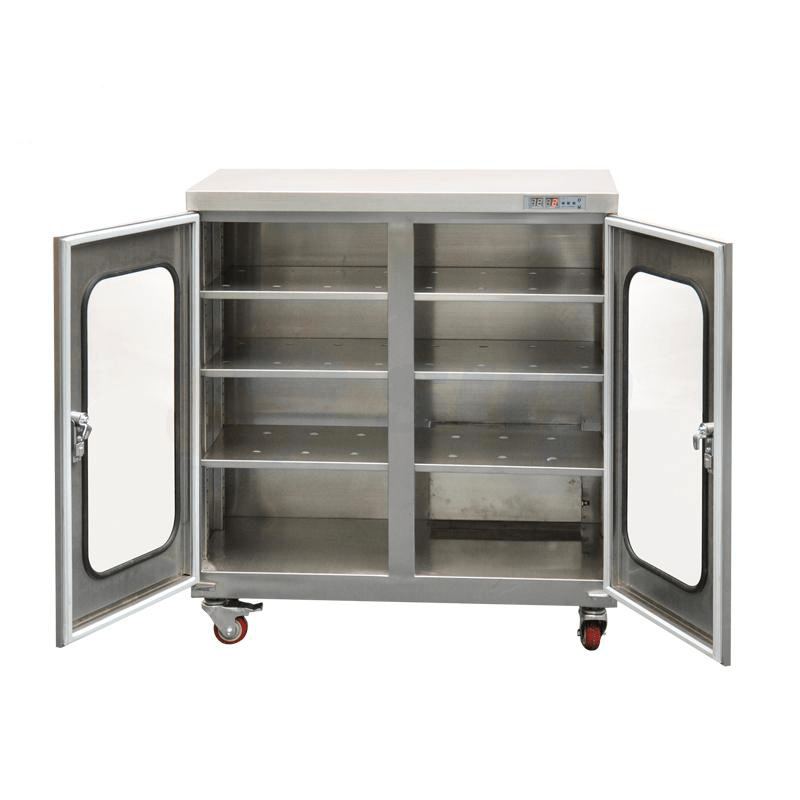

320L Stainless Steel Nitrogen Cabinet Storage

320L Stainless Steel Nitrogen Cabinet Storage

Product Name: Nitrogen Desiccator Cabinet

Product Model: SUP-320S1

The ‌Nitrogen Cabinet‌ is constructed from 1-1.2mm high-quality 304 or 316 stainless steel plates, featuring an LED display for immediate visibility of internal temperature and humidity. The high-precision humidity sensor has an error margin of less than ±2% RH, with a humidity increase not exceeding 10% within 24 hours. It is moisture-resistant, heat-free, and drip-free, offering energy efficiency and a long service life. This nitrogen cabinet is widely applicable in laboratories of enterprises, universities, and research institutions for storing samples, materials, and other items that require dry storage.

Product Description

This nitrogen cabinets constructed from 1-1.2mm high-quality 304 or 316 stainless steel plates, featuring an LED display for immediate visibility of internal temperature and humidity. The high-precision humidity sensor has an error margin of less than ±2% RH, with a humidity increase not exceeding 10% within 24 hours. It is moisture-resistant, heat-free, and drip-free, offering energy efficiency and a long service life. This nitrogen cabinet is widely applicable in laboratories of enterprises, universities, and research institutions for storing samples, materials, and other items that require dry storage.

Product Features

1. Error is less than ±2%RH, high accuracy and stability

2. Built-in intelligent temperature and humidity upper and lower limit alarm, safe and intelligent

3. Save 70% of nitrogen consumption, greatly reduce usage costs

4. Low power consumption, no noise, no heat effect, no frost formation, no water droplets, long lifespan.

5. The humidity range can be set from 1-60%Rh.

Choose the corresponding product based on different humidity levels:

1. Nitrogen Cabinet

Full humidity range DG1-60 percent RH

Fully automatic nitrogen controller with customizable settings for 1-60 percent RH humidity range

2. Electronic Dry Cabinet

Ultra-low humidity FCDE1-10 percent RH

Suitable for precision IC chips wafers PCB-SMT precision electronics industrial precious metals and special chemical products

3. Low humidity FCD10-20 percent RH

Suitable for metal materials chemical raw materials chemical reagents electronic components printed circuit boards and precision electronic instruments

4. Medium humidity FCM20-60 percent RH

Suitable for pharmaceuticals food DSLR cameras optical lenses LED optical lenses and various common household items

You can choose cabinets of different sizes based on your needs:

Desiccant Nitrogen Cabinets Specifications
Capacity	Humidity Range	Number of Shelves/Layers	Dimensions
100L	FCM 20-60%RH FCD 10-20%RH FCDE 1-10%RH DG 1-60%R	2 adjustable shelves (up and down)	External : W400 * D400 * H700 MM Internal : W398 * D375 * H685 MM
160L		3 adjustable shelves (up and down)	External: W450 * D450 * H1030 MM Internal : W448 * D442 * H848 MM
240L			External: W600 * D400 * H1265 MM Internal : W598 * D370 * H1083 MM
320L			External: W900 * D450 * H1030 MM Internal : W898 * D420 * H848 MM
435L			External: W900 * D600 * H1030 MM Internal : W898 * D570 * H848 MM
540L			External: W600 * D750 * H1500 MM Internal : W598 * D720 * H1318 MM
728L		5 adjustable shelves (up and down)	External: W600 * D710 * H1920 MM Internal : W598 * D680 * H1738 MM
870L			External: W900 * D600 * H1880 MM Internal : W898 * D570 * H1698 MM
1428L			External: W1200 * D710 * H1920 MM Internal : W1198 * D680 * H1738 MM
Optional functionalities	1 Humidity Alarm 2 Temperature and Humidity Control Dashboard 3 Nitrogen Flow Interface 4 Rapid Dehumidification System 5 Temperature and Humidity Network Monitoring System (repeated, so just "Temperature and Humidity Network Monitoring System" is sufficient) 6 Heating Function

Product Parameters

Product Name	Stainless Steel Nitrogen Cabinet Storage
Product Model	SUP-320S1

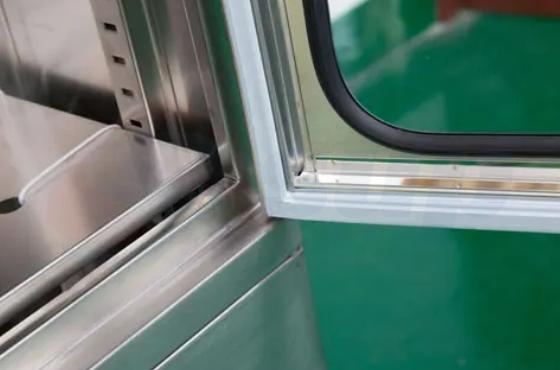

Features	1. Magnetic Seal Strip Door gap strips use an internal magnetic seal strip, which differs from traditional methods and solves the problem of aging and detachment after long-term use.

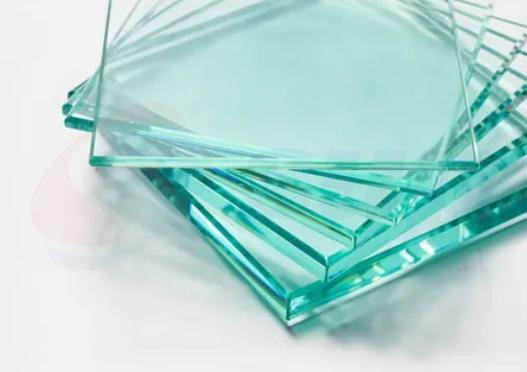

	2. High Transparency Glass The TongRun moisture-proof cabinet uses thickened 5MM high-transparency tempered glass.

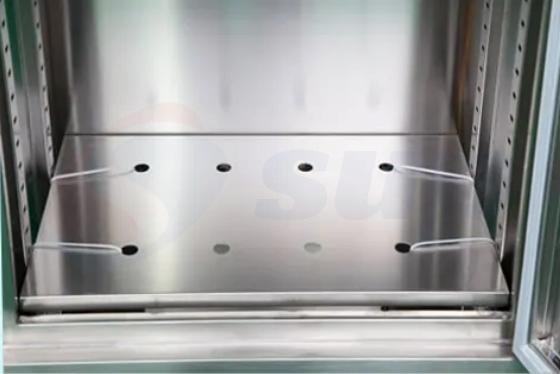

	3. Movable Partition The partition can be freely adjusted up and down, with strong load-bearing capacity and customizable number of partition layers. Each layer partition can bear 100KG weight.

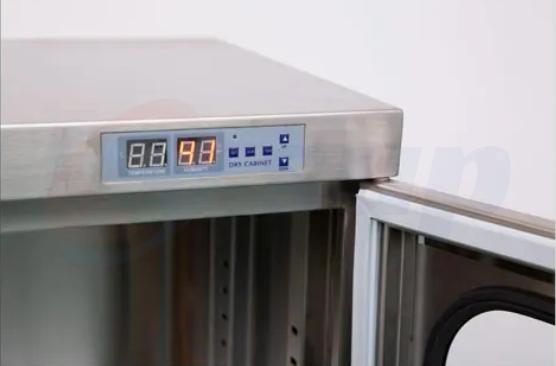

	4. LED Display Screen Temperature display, humidity freely controlled, can also set upper and lower limit temperature and humidity alarms

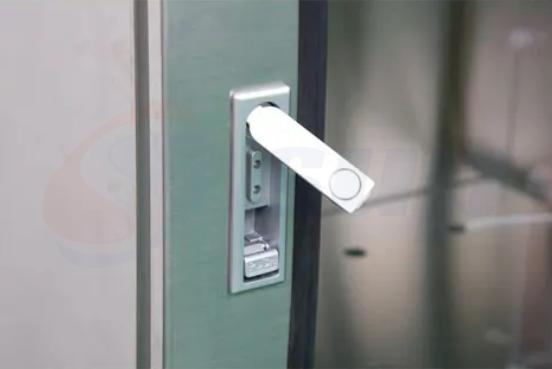

	5. Flat Lock Integrated flat lock, press and rotate to open, comes with 2 keys for convenient management
