Precision CNC Corner Rounder Punch​ for Cylinder Sample with Diamond Hollow Core Drill Bits

Product Name: Precision CNC Corner Rounder Punch​ for Cylinder Sample with Diamond Hollow Core Drill Bits

Product Model: SUP-SYJ-30QY

Product Description: The SUP-SYJ-30QY circular hole sampling machine is specifically designed for drilling cylindrical or ring-shaped samples from solid materials. It can be operated manually for sampling or controlled automatically via a controller for both feeding and retracting during the sampling process. The sampling precision can be maintained within a specified range.

EMAIL

Product Description

The SYJ-30QY circular hole sampling machine is specifically designed for drilling cylindrical or ring-shaped samples from solid materials. It can operate in manual mode for sampling or be controlled automatically via a controller for both feeding and retracting during the sampling process, with sampling precision maintained within a specified range.

The SYJ-30QY can sample a wide variety of materials, including wafer, crystals, ceramics, metals, glass, rocks, core samples, plastics, PCBs, refractory materials, and composite materials. It can handle sample sizes ranging from Ø3mm to Ø30mm, with no specific requirements for sample shape or surface condition. For brittle materials, the minimum sampling size is Ø3mm, making it suitable for preparing samples for electron microscopy.


Product Features

1. Different specifications of samplers can be used to obtain cylindrical and ring-shaped samples, as well as to drill holes in materials.

2. The obtained samples are neat and have high precision.

3. The Z-axis is driven by a stepper motor, while the X and Y axes are adjusted manually.

4. Equipped with quick clamps and a cooling water tray.

5. Easy to use, simple to operate, and elegantly designed.


Product Parameters

Product NameCNC Corner Rounder Punch for Cylinder Sample with Diamond Hollow Core Drill Bits
Product ModelSUP-SYJ-30QY

Installation

Requirements

1. Temperature and Humidity: 10-85% RH (at 25℃, no condensation) Temperature: 0-45℃.

2. No strong vibration sources or corrosive gases around the equipment.

3. Power Supply: AC 220V, 50Hz standard three-pin socket, must have a good grounding wire.

4. Cooling Water: The equipment is equipped with an inlet and outlet for water, which needs to be connected to a water supply and drainage system by the user.

5. Air Source: No requirement for standard equipment.

6. Workbench: Recommended size: 1000mm × 600mm × 700mm, with a load capacity of over 100kg.

7. Ventilation: A good ventilation environment is required, with no special ventilation device requirements.


Main

Parameters

1. Power Supply Port: AC 220V , 50Hz  (110V,60Hz opptional)

2. Spindle Speed: Effective value: 70-3000 rpm, stepless speed regulation

3. Spindle Drive Power: 180W

4. X-axis Slide Stroke: Manual: 200mm

5. Y-axis Slide Stroke: Manual: 80mm

6. Z-axis Slide Stroke: Manual/Automatic: 100mm

7. Z-axis Drive Motor: High-precision stepper motor

8. Stepper Motor Positioning Accuracy: 0.01mm

9. Quick Clamp Holding Force: 27kg

10. Sample Holder Size: 300×100×10mm

11. Stainless Steel Sample Plate Size: 100×75×0.5mm

12. Sampler Installation Size: Optional: Ø3~Ø30 (inner diameter size)


Product

specifications

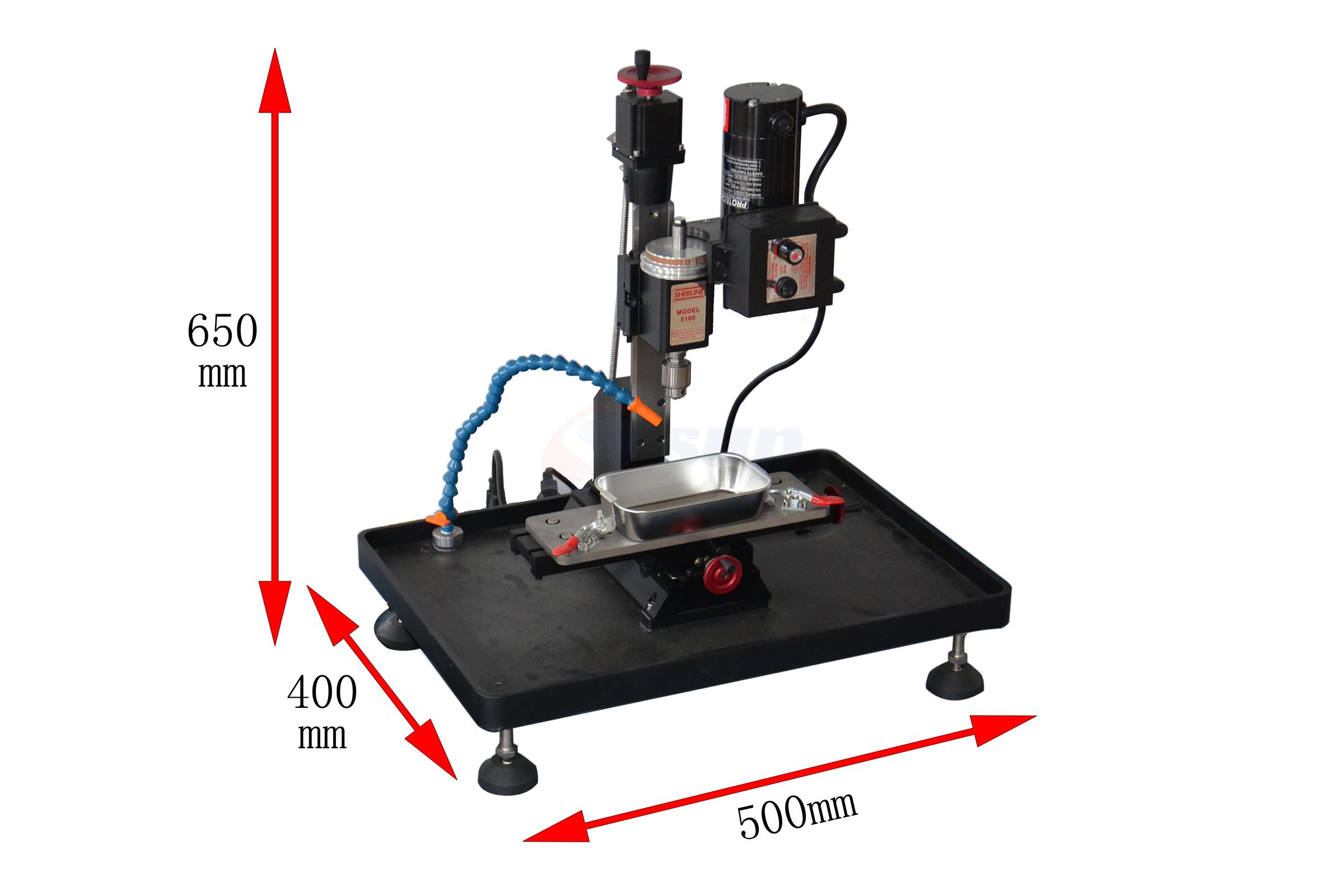

Dimensions: 580mm×445mm×620mm

Weight: 35kg

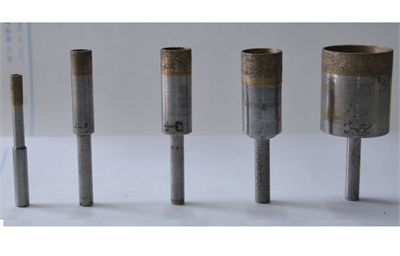

Diamond Hollow

Core Drill Bits

1. Diamond edge sintering hollow drill for precision cutting

2. Two sets of Diamond Hollow Core Drill Bits with ID 27mm are included.  Please determine the drill ID before the order

3. Diamond drills with ID: 3, 5, 7, 8, 9, 10, 11, 13, 15, 17, 18, 20, 21, 25, 27, and 30 mm are available. Any other special sizes could be customized upon request as well.

Note: Please don't use the cheaper diamond plated drill for brittle sample


Motor

1. Brushless magnetic DC motor (90V) with variable speed up to 2750 rpm.

2. Power consumption: 180W

Accuracy

0.0025 mm moving resolution and 0.01 mm position accuracy

Control unit

1. Separated unit with touchscreen control

2. Setting parameters, rotation speed, cutting depth, and cutting speed

3. Max. cutting depth: 50 mm


Standard Accessories

Item No.Product Name
Qty
1

Sampler φ25*φ27mm

1 set
2

Sampler φ27*φ29mm

1 set
3Sample Holder1 set
4Quick Clamp2 set
5

Water Tray

1 set
6

Resin Ceramic Block

2 set
7Paraffin Rod4 set



Optional Accessories

Item No.Product NameQty
1

Samplers in various specifications

Optional

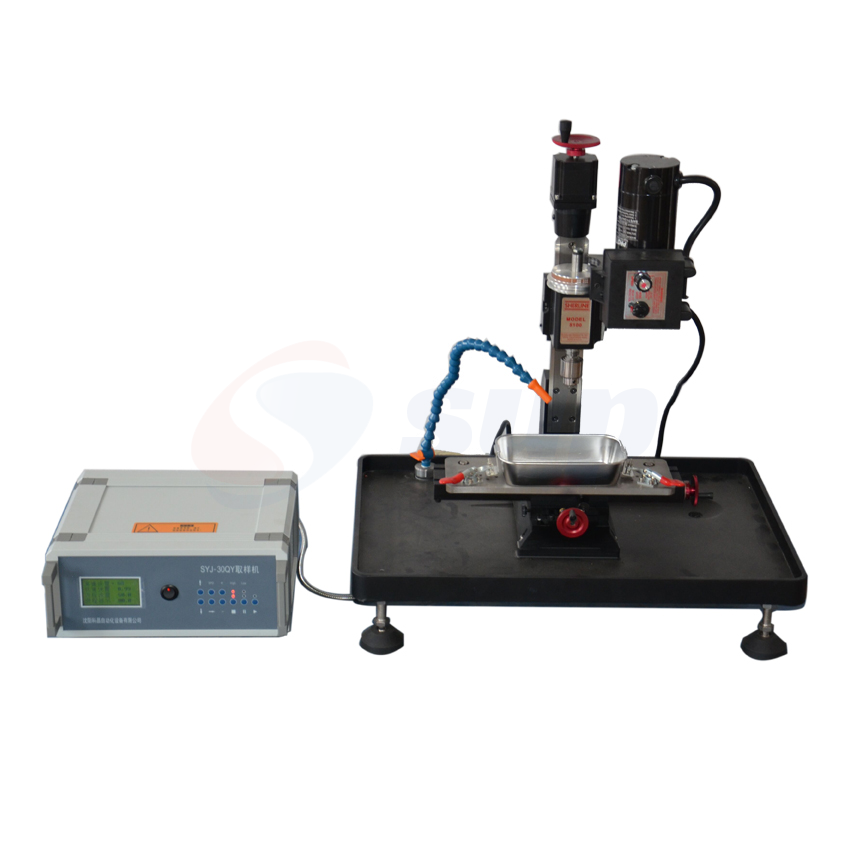

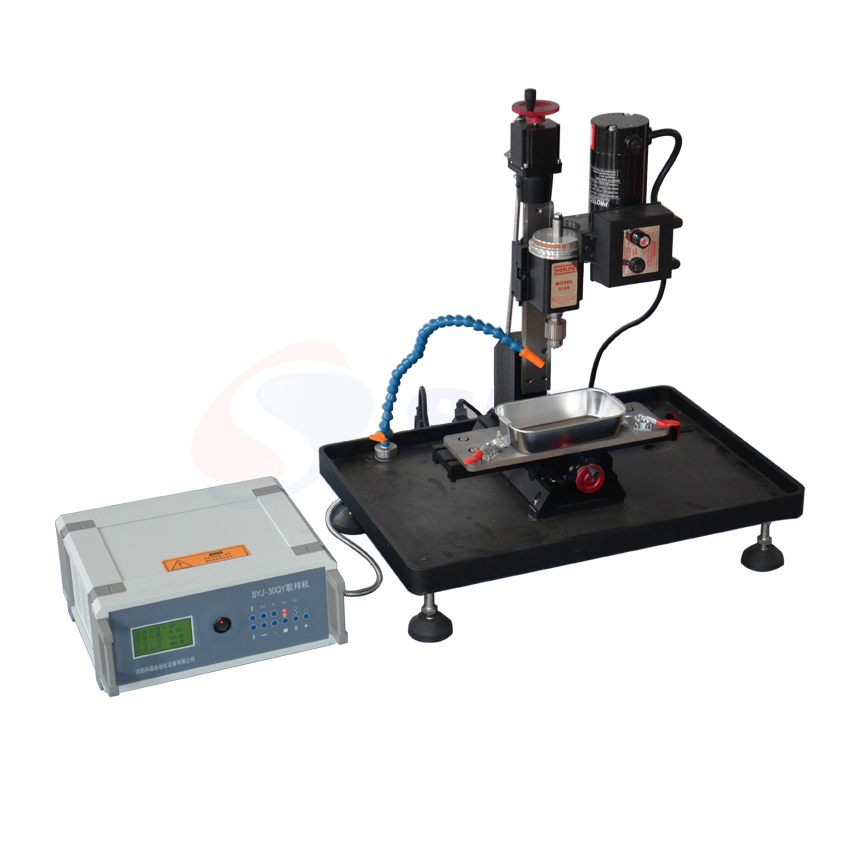

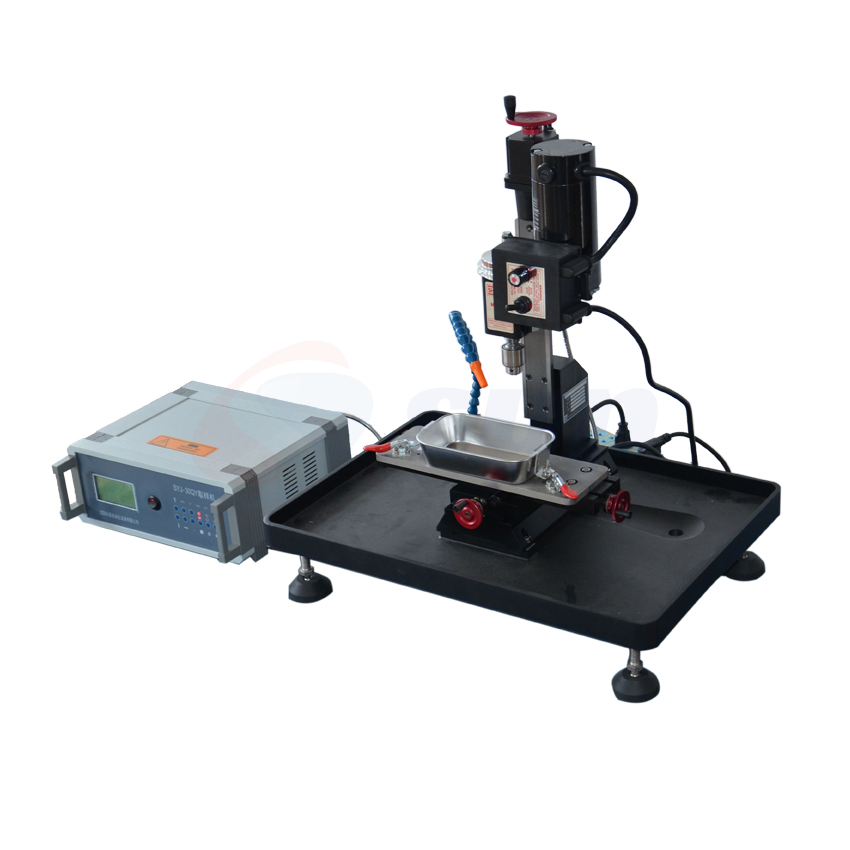

Corner Rounder Punch.png
