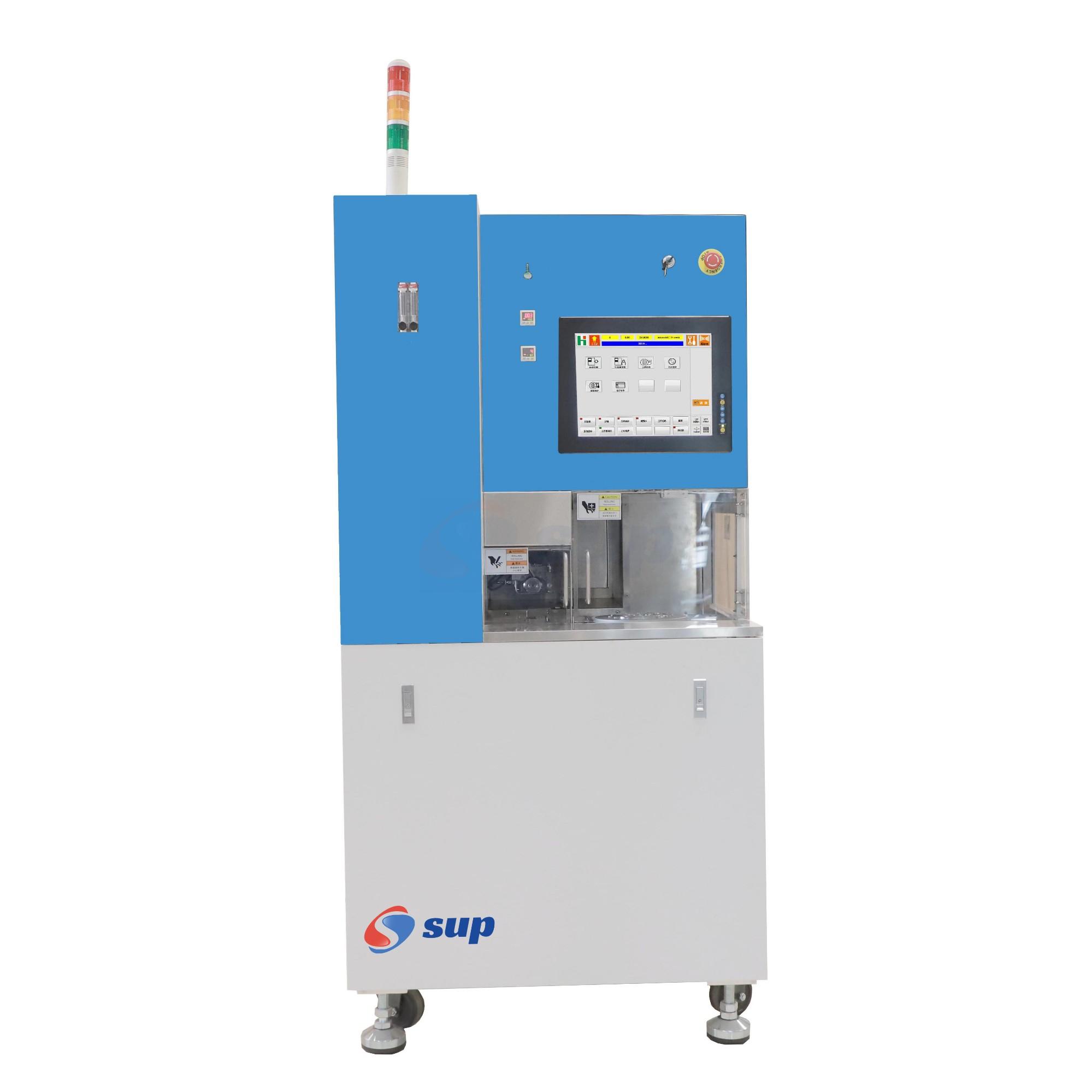

SYJ-3310型精密划片机

产品名称：12英寸高精度硅片切割锯

产品型号：SYJ-3310

产品描述：适用于12英寸硅片、LED封装、QFN、DNF、BGA、光学和光电子器件、通信、PCB、陶瓷、玻璃、铌酸锂、氧化铝、石英等。加工尺寸：Φ12或280mm。槽深：≤4mm或可定制。

产品描述

UV系列粘合剂去除剂专为切割后剥离与UV薄膜粘合的产品而设计，如晶片、QFN、玻璃、基板、移动模块和陶瓷。该系列采用LED冷光源，具有可编辑控制器和全彩触摸屏作为操作系统，增强了设备性能的稳定性，使操作更加方便。

产品特征

1.大尺寸切割加工，最大加工尺寸为φ12。

2.配备进口气动主轴和标准2.4KW高扭矩主轴。

3.可选非接触式高度测量（NCS）。

4.可选刀片破损检测（BBD）。

5.θ轴采用直驱DD电机，精度高，速度快。

6.两套高倍率和低倍率显微镜系统可实现高速图像识别、多种对齐模式和快速边缘查找，显著提高效率。

产品参数


Product Name	High-Precision Wafer Dicing Saw for 12-Inch Wafers QFN quartz etc
Product Model	SYJ-3310
Product Applications	12-inch silicon wafers, LED packaging, QFN, DNF, BGA, optical and optoelectronic devices, communication, PCB, ceramics, glass, lithium niobate, alumina, quartz.
Configuration Performance	Processing Size	Φ12 or 280mm
Configuration Performance	Groove Depth	≦4mm or customizable
Spindle	Speed	6000～60000rpm
Spindle	Output Power	DC, 2.4KW
X-axis	Cutting Stroke	MAX280mm
X-axis	Speed Setting Range	0.1～500mm/s
Y-axis	Cutting Stroke	Max280mm
	Single Step Accuracy	≦0.003mm/5mm
	Maximum Overall Error	≦0.005mm/280mm
Z-axis	Effective Stroke	Max40mm
	Repeatability Accuracy	0.001mm
	Tool Application Size	φ50mm～φ60mm
θ-axis	Angle Range	320°
θ-axis	Resolution	0.0002°
Alignment System	Light Source + Ring Light Industrial Camera
Display Monitor	Industrial-grade 15" Color LCD Touchscreen

Subject		Parameters
Operating System	Control System	PC Base+Windows
Operating System	Operating System	Windows Language: English / 中文 (Chinese)
Usage Conditions	Power Supply	Single-phase, AC 380±5%, 4.0kVY
	Compressed Air	Pressure: 0.5–0.6Mpa, Maximum Consumption: 260L/min
	Cutting Fluid	Pressure: 0.2–0.3Mpa, Maximum Consumption: 4.0L/min
	Cooling Water	Pressure: 0.2–0.3Mpa, Maximum Consumption: 1.5L/min
	Exhaust Volume	5.0m³/min (ANR)
	Ambient Temperature	20–25°C
	Humidity	<80%
	1. Please set the machine in an environment of 20-25°C (with fluctuations controlled within ±1°C); indoor humidity should be <80% and free from condensation. 2. Please use clean compressed air with an atmospheric pressure dew point below -15°C, residual oil content of 0.1ppm, and a filtration level of 0.01um/99.5 or higher. 3. Please control the temperature of the cutting fluid to room temperature +2°C (with fluctuations within ±1°C), and the cooling water temperature should match room temperature (with fluctuations controlled within ±1°C). 4. Please avoid subjecting the equipment to gravitational impacts or any external vibration threats. Additionally, do not place the equipment near blowers, ventilation openings, high-temperature devices, or sources of oil contamination. 5. Install the equipment on a waterproof floor and in a location with smooth drainage.
Installation Parameters	Overall Dimensions W × D × H	910mm×1100mm×1860mm
Installation Parameters	Weight	1500kg
