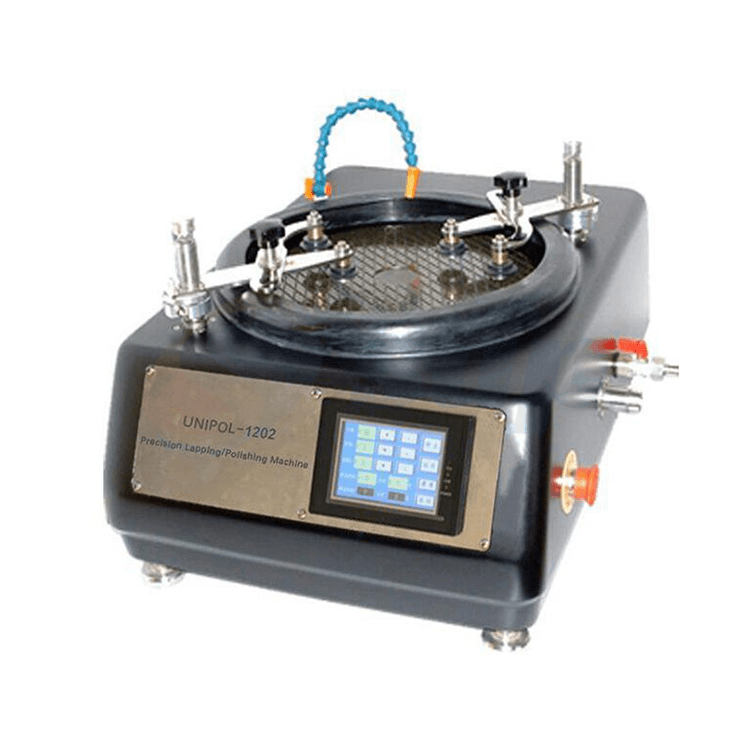

Product Model: Unipol-1202
Product Description: UNIPOL-1202 machine is equipped with a 12" super flat lapping plate. A high-precision lapping machine for polishing crystal components, semiconductor wafers, and ceramic substrates up to 4" in diameter. It can also be used as a standard grinding and polishing machine for preparing metallographic samples.
Product Description
UNIPOL-1202 machine is equipped with a 12" super flat lapping plate. A high-precision lapping machine for polishing crystal components, semiconductor wafers, and ceramic substrates up to 4" in diameter. It can also be used as a standard grinding and polishing machine for preparing metallographic samples.
Product Parameters
Power | • AC 208-240V (50/60Hz) • (110V version is available with a 750W transformer at an extra cost) • 24VDC motor is optional to operate in Ar gas glovebox at the extra cost |
Lapping Plates | • Two 12" diameter flat lapping plates are included with flatness< 0.25 micron/Inch² • One is made of cast iron with growing for lapping • One is made of Aluminum for holding polishing pads • Two rocking workstations with wafer holders and condition rings, which can be controlled independently for polishing 2 pcs of 4" wafers at the same time • Complete accessories are included for immediate use |
Precision Rotating Plate Run-off | < 5 micron |
Heavy Duty Cast Aluminum Case with Bright Painting | • Color: Black or White |
Two Workstations with 8° Rocking and adjustable speed | • 8" rocking with 0- 9 rocking/minute adjustable |
Flat Sample Holders | Two Flat Holders: 105 Dia. x 35 T mm, which can carry 2 samples up to 4" in diameter |
Condition Rings | Two condition rings: 120 O.D. x 110 I.D. x 32 T mm, which ensures the polished surface flat |
Variable Speed of Master Plate with Digital Display | 0 ~ 125 rpm |
Adjustable Timer for Auto-Stop | 0 - 99 hours |
Optional Parts | The multi-sample polishing fixture is available up to 2 x 8 pcs for 1" dia. samples per batch 4" Polishing Fixture for Precision / Automatic Thinning and Polishing |
Dimension | 700mm L x 550mm W x 350mm H |
Net Weight | 154 lbs |
Warranty | • One year limited warranty with lifetime support • Rusting and damage due to improper storage condition or maintenance are not covered by warranty |
STANDARD PACKAGE
No. | Item Name | Qty |
1 | Unipol 1202 Polishing Machine | 1 unit |
2 | 12" Polyamide Foam Polishing Pad | 1 pc |
3 | 12" Poromeric Polishing Pad | 1 pc |
4 | Conditioning Rings | 2 pcs |
5 | Sample Holder | 2 pcs |
6 | 12" Cast Iron Plate | 1 pc |
7 | 12" Aluminum Plate | 1 pc |
8 | Wax | 1 pack |
9 | Power Cord | 1 pc |
10 | Hex Wrench & Screwdriver | 1 set |
11 | Fuse(10A) | 2 pcs |
12 | Input Tube & Output Tube | 1 piar |
