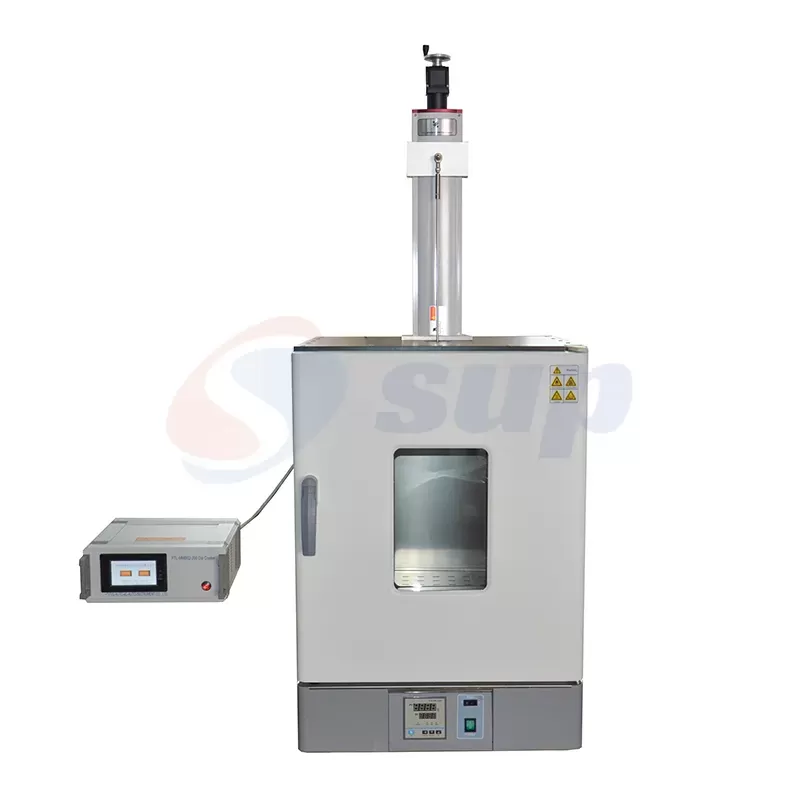

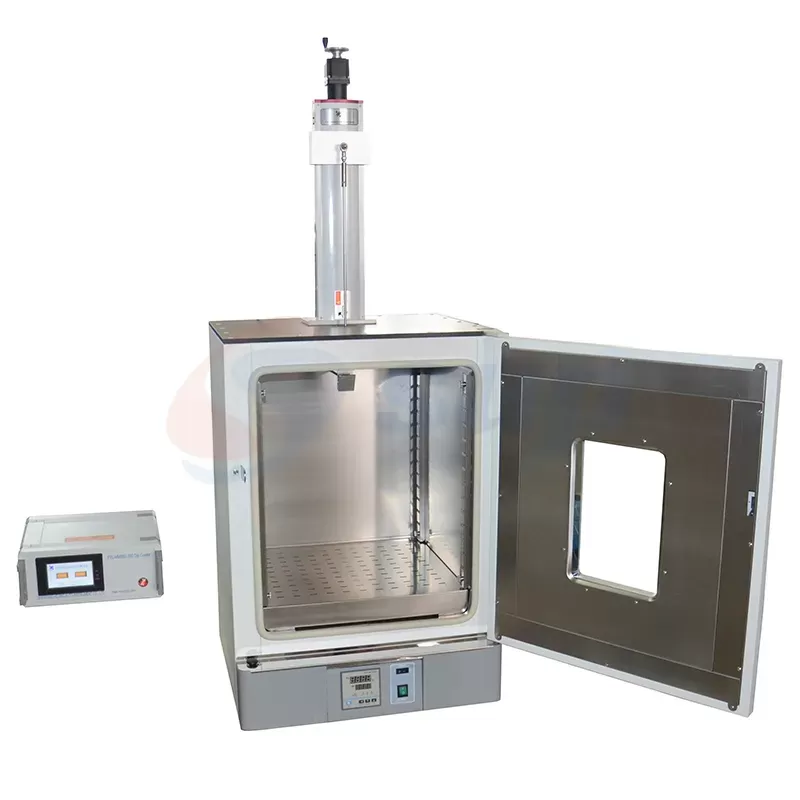

Constant Temperature Vertical Dip Coater for Laboratory Thin Film Research

Product Name: PLC Controlled Dip Coating Machine for Thin Film Research

Product Model: PTL-MMB02-200

Product Description: The PTL-MMB02-200 constant temperature vertical lifting coating machine is a precision device designed for studying liquid phase thin film growth. In a constant temperature field, the film is grown by vertically lifting the sample in the liquid phase. This machine adopts a high-precision speed control system and a touch screen parameter input terminal to realize automatic control of the whole process of lifting and coating. The stepping angle of the two-phase hybrid stepper motor is subdivided by the driver.

Product Description

The PTL-MMB02-200 constant temperature vertical lifting coating machine is a precision device designed for studying liquid phase thin film growth. In a constant temperature field, the film is grown by vertically lifting the sample in the liquid phase. This machine adopts a high-precision speed control system and a touch screen parameter input terminal to realize automatic control of the whole process of lifting and coating. The stepping angle of the two-phase hybrid stepper motor is subdivided by the driver.

Product Parameters

Product Name	Constant Temperature Vertical Dip Coater for Laboratory Thin Film Research
Product Model	PTL-MMB02-200
Main Parameters	1. Power supply: 220V 50Hz
	2. Heating power: 2.3KW
	3. Lifting speed: 1mm/min-200mm/min
	4. Stroke: 250mm
	5. Temperature: 80°C-200°C
	6. Temperature accuracy: ±1.5°C
	7. Fuse: 15A
	8. Sample size: 407mm × 229mm, thickness 1mm-10mm
	9. Lifting load: ≤5kg

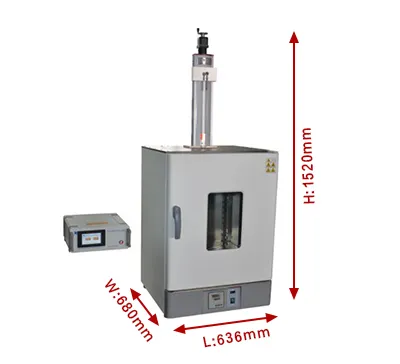

Product specifications	Dimensions: 636mm×680mm×1520mm
