Precision 4 Position Multi-Angle Tilting Dip Coater with 4 Beakers Laboratory

Precision 4 Position Multi-Angle Tilting Dip Coater with 4 Beakers Laboratory

Product Name: Multi-Angle Laboratory Dip Coating Machine with 4 Beakers

Product Model: PTL-AADC

Product Description: The PTL-AADC Multi-angle Tilting Dip Coater enables precise nanocoating with adjustable angles (0–45°), 4 independent beakers for simultaneous material testing, and customizable parameters (immersion speed, time, lift speed, drying). Achieve varying coating thicknesses on both sample sides in a single step, reducing layers and saving time. Ideal for advanced lab research and efficient nanomaterial development.

Product Description

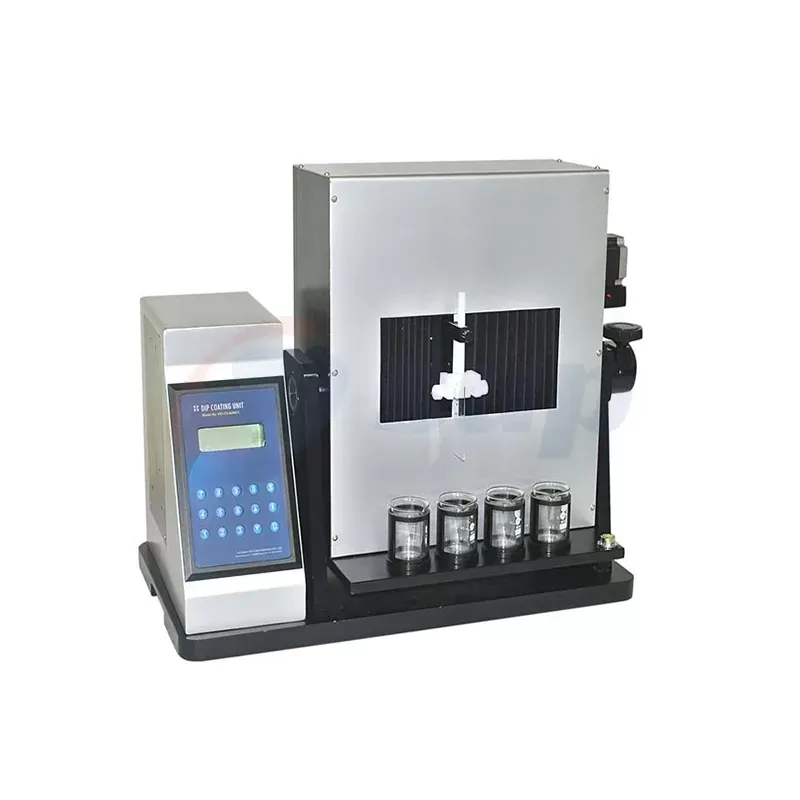

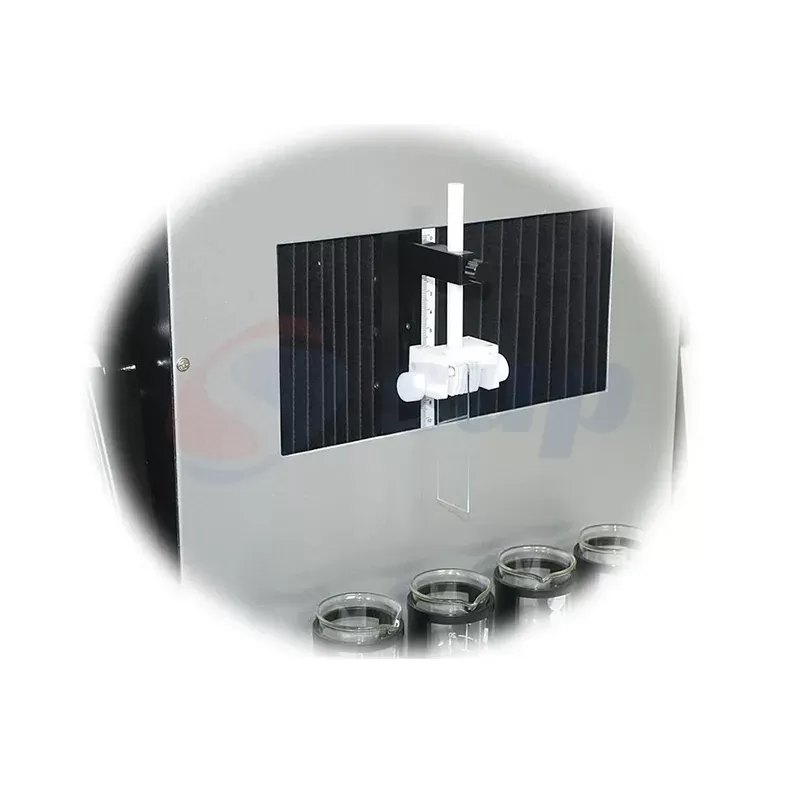

The PTL-AADC Multi-angle Tilting Dip Coater is a dip coating machine equipped with a tilting angle, designed to perform nanocoating on samples by immersing them into beakers containing coating materials. The tilting angle of the samples can be adjusted as needed within the range of 0–45°. The machine is equipped with 4 lifting rods and 4 beakers, allowing simultaneous use of 4 different coating materials. The immersion speed, immersion time, lifting speed, and drying time for each beaker can be individually configured. During operation, the PTL-AADC Multi-angle Tilting Dip Coater lifts the samples out of the coating material at an optimal angle, enabling different coating thicknesses to be achieved simultaneously on both sides of the sample. One key advantage of this machine is its ability to achieve desired coating performance by reducing the number of coating layers or steps required.

Product Parameters

Product Name	Precision Laboratory Multi-Angle Tilting Dip Coater
Product Model	PTL-AADC
Main Parameters	1. Drive Motor: Servo Motor
	2. Drive Mechanism: Lead Screw
	3. Immersion Time: 0–99 s/min/hour
	4. Cycle Count: 1–999
	5. Input Power: 208–240V AC, 50/60Hz
	6. Power Consumption: ≤800W
	7. Lifting Stroke Limit: 75mm
	8. Control Unit: Speed control with an LED touch screen, capable of storing 5 curves
	9. Control Panel: Equipped with an RS232 interface
	10. Optional: Control software for computer operation (compatible with Windows 8)
Product specifications	Dimensions: 570 x 300 x 475 mm Weight: 23kg
