Precision Mini Spin Coater for Laboratory Glove Box Use

Product Name: Compact Laboratory Spin Coating Machine

Product Model: VTC-50PA-DC

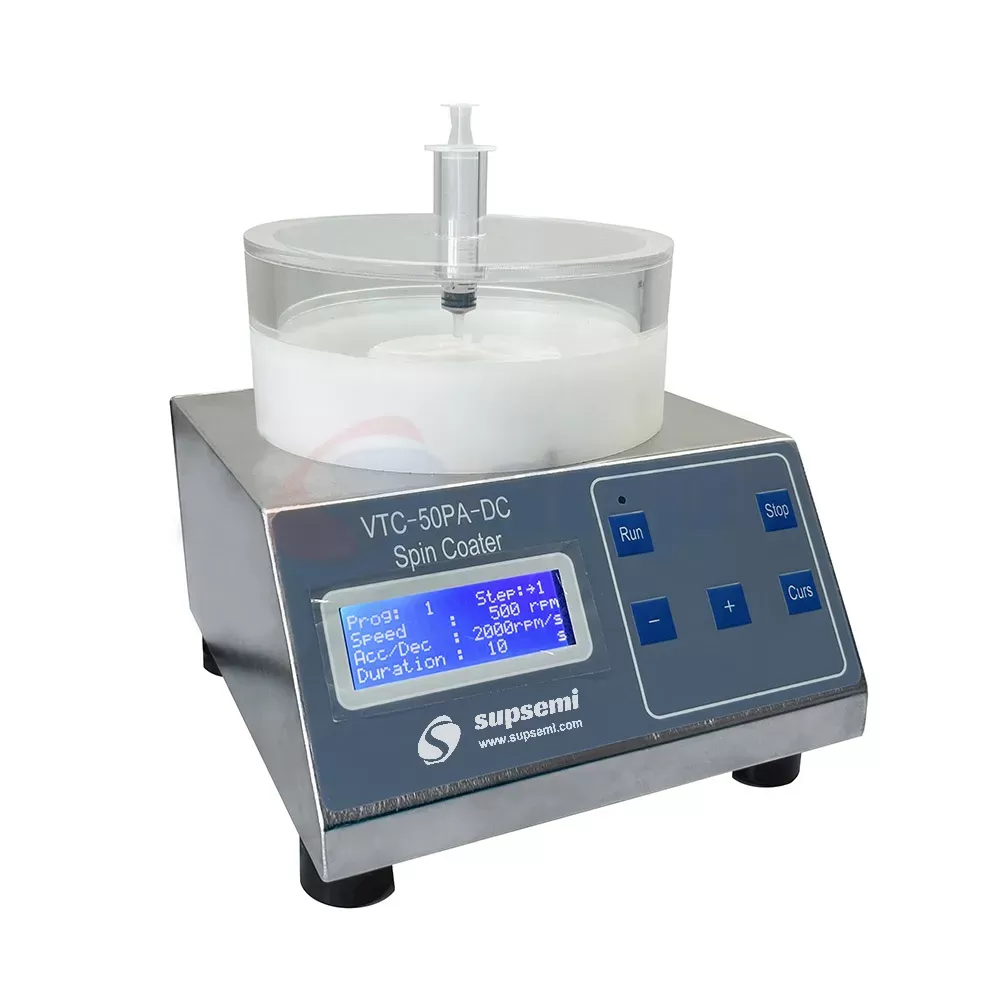

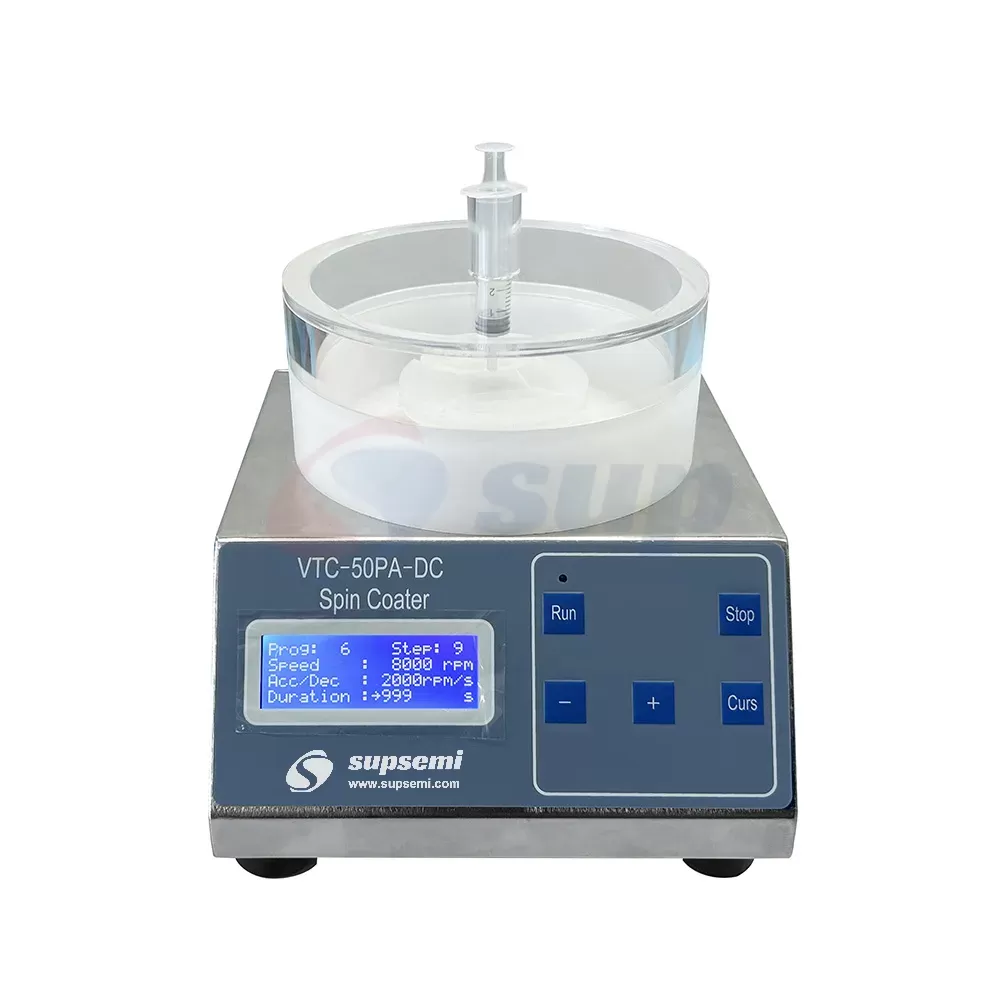

Product Description: VTC-50PA-DC Mini Spin Coater is primarily designed for the application of thin film materials such as liquids, gels, and flowable pastes. The equipment features a stainless steel exterior structure, making the product lightweight and corrosion-resistant. The transparent acrylic cover allows for clear observation of the entire coating process. The sample fixation system utilizes a grooved polypropylene sample chuck combined with a template that self-adjusts to the shape and size of the sample, ensuring secure and convenient fixation of the substrate. The design ensures ease of operation, effortless sample handling, and protects the substrate from any damage.

Product Description

VTC-50PA-DC Mini Spin Coater is primarily designed for the application of thin film materials such as liquids, gels, and flowable pastes. The device features a stainless steel exterior structure, making it lightweight and corrosion-resistant. The transparent acrylic cover allows for clear observation of the entire coating process. The sample fixation system utilizes a grooved polypropylene sample chuck combined with a template that self-adjusts to the shape and size of the sample, ensuring secure and convenient fixation of the substrate. This design ensures ease of operation, effortless sample handling, and protects the substrate from any damage.

The VTC-50PA-DC Mini Spin Coater is powered by a safer DC24V power supply, making it suitable for use inside a glove box. The rotating spindle is driven by a high-speed DC brushless motor, controlled by a highly anti-interference microcontroller. The rotational speed can reach up to 8000 rpm, with fast and stable motor startup and smooth acceleration, enabling precise control of high-speed rotation. This allows liquids, gels, and other materials to quickly and evenly form thin films on the substrate. The device can store up to 6 programs, with each program containing 9 operational stages. Each stage's parameters can be independently configured, allowing the device to gradually increase speed to its maximum. The coating and leveling processes are segmented, facilitating uniform film formation on the sample surface while minimizing material waste.

The VTC-50PA-DC Mini Spin Coater is compact, easy to operate, and simple to clean, making it widely used in laboratories of universities and research institutions for thin film generation processes.

Product Features

- The device adopts a stainless steel exterior structure, providing corrosion resistance; the acrylic cover allows clear observation of the coating process.

- A customizable heated cover is available, with heating temperatures up to 80°C.

- It is controlled by a highly anti-interference microcontroller, ensuring stable operation even at high speeds.

- Sample fixation is achieved using a dedicated polypropylene sample chuck, eliminating the need for vacuum adsorption or adhesive fixation. The fixation method is simple, preventing substrate deformation and ensuring no damage to the substrate. Slots of different shapes and sizes can be created at the center of the template to accommodate substrates of various shapes and dimensions.

- The coating and leveling processes are segmented, ensuring the uniformity of the film layer after coating.

Product Parameters

Product Name

Precision Mini Spin Coater for Laboratory Glove Box Use

Product Model

VTC-50PA-DC

Installation

Requirements

1. Temperature and Humidity: 10-85%RH (at 25℃, non-condensing), Temperature: 0-45℃

2. Environment: No strong vibration sources or corrosive gases around the equipment.

3. Water: Not required

4. Electricity: Single-phase: AC220V 50Hz, national standard three-prong socket 10A, must have good grounding.

5. Gas: Not required

6. Workbench: Recommended size 500X500X500mm, load-bearing capacity of 20KG or more.

7. Ventilation: No special requirements

Main

Parameters

1. Power Interface: DC24V 5A (standard configuration: "power adapter")

2. Total Power: ≤100W

3. Coating Main Unit Chamber (Material): Polypropylene

4. Sample Holder (Chuck): Φ90mm polypropylene chuck, 1 piece (with two-inch and 10×10mm sample slots)

5. Operation Mode: Can store 6 programs, each program containing 9 operational stages

6. Coating Rotation Speed: 100rpm-8000rpm effective

7. Ramp Rate: Ramp rate setting range per segment: 100 rpm – 2000 rpm

8. Coating Time: Time range per segment: 0-999s

9. Rotation Speed Stability: ±1%

10. Control Method: PCB microcontroller, button control, LMC LCD display

Note:

1. The standard "power adapter" specifications are: IN: AC100-240V 50/60Hz OUT: DC-24V 5A. The actual power supply of the equipment is subject to the label on the rear of the product.

2. The control program and display of this equipment are in English.

Product

specifications

Dimensions: 200(L)mm × 225(D)mm × 235(H with cover)mm / 170mm (H with cover open)

Weight: 3kg

Standard Accessories

Item No.	Product Name	Qty
1	Polypropylene sample holder (with φ90mm and 10×10mm sample slots)	1 set
2	pipette	1 set
3	stencil	5 set

Optional Accessories

Item No.	Product Name	Qty
1	Viscometer with temperature measurement	Optional
2	Pipette	Optional
3	Precision spin coater	Optional
4	Compact high-precision reflectometer for film thickness measurement	Optional
5	Syringe pump	Optional
6	24V infrared heating cover (maximum heating temperature 80℃)	Optional
