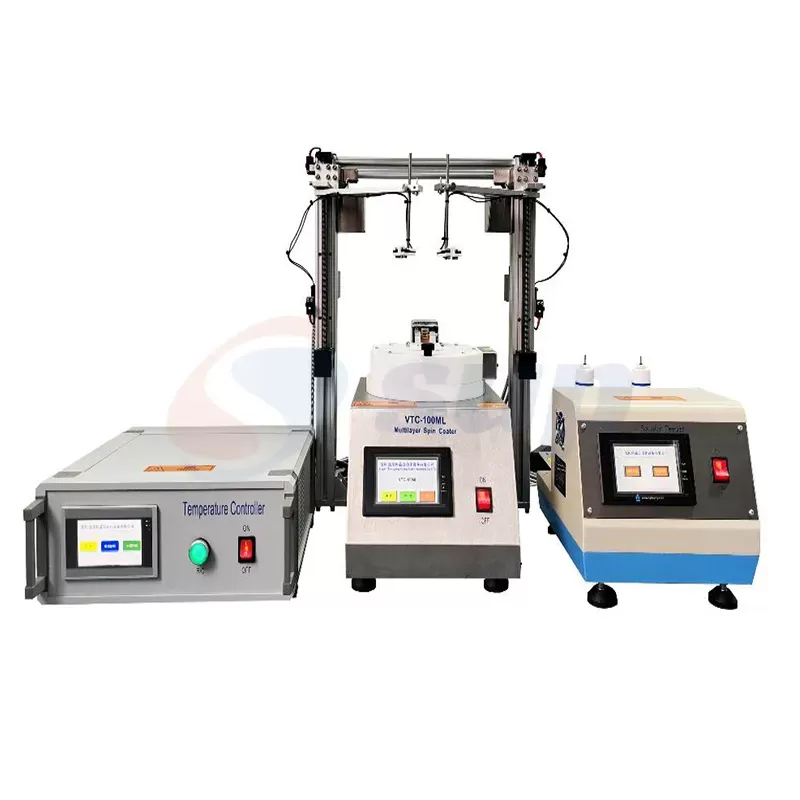

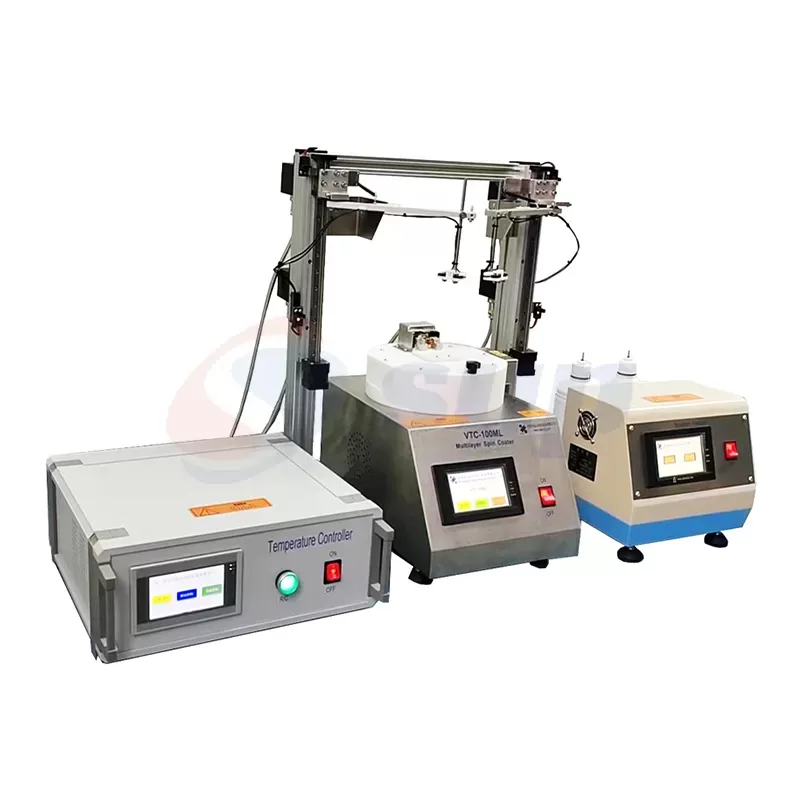

Product Name: Automatic Multilayer Perovskite Spin Coating Machine

Product Model: VTC-100ML

Product Description: The VTC-100ML fully automatic multilayer perovskite spin coater is suitable for coating perovskite materials, as well as surfaces for semiconductors, crystals, optical discs, and film production processes. This machine automates the entire process of dispensing, spinning, and drying; it can simultaneously alternate coating two types of films, allowing for up to 500 alternating applications of each liquid, enabling the coating of thousands of layers.

Product Description

The VTC-100ML fully automatic multilayer perovskite spin coater is suitable for coating perovskite materials, as well as for surface coating processes in semiconductors, crystals, optical discs, and film production. This machine automates the entire process of dispensing, spinning, and drying. It can simultaneously alternate between coating two types of films, allowing for up to 500 alternating applications of each liquid, enabling the coating of thousands of layers. The machine is capable of preparing films using acidic and basic coating solutions. It comes standard with vacuum suction cups of different sizes, allowing users to choose the appropriate suction cup based on the sample size, using vacuum adsorption to secure the substrate. This machine is primarily used in laboratories of universities and research institutions for the film generation process.

Product Features

1. The sample is secured using a vacuum adsorption method, making operation simple.

2. Different suction cups can be used based on the specifications of the sample, and they can be easily and conveniently replaced.

3. The motor is a 24V DC brushless motor, which offers high reliability, strong adaptability, easy maintenance, low noise, minimal vibration, smooth operation, quick and stable startup, and steady running after acceleration, ensuring consistency and uniformity in coating thickness.

4. An oil-free vacuum pump is used, which is compact, simple in structure, easy to operate, convenient to maintain, and environmentally friendly.

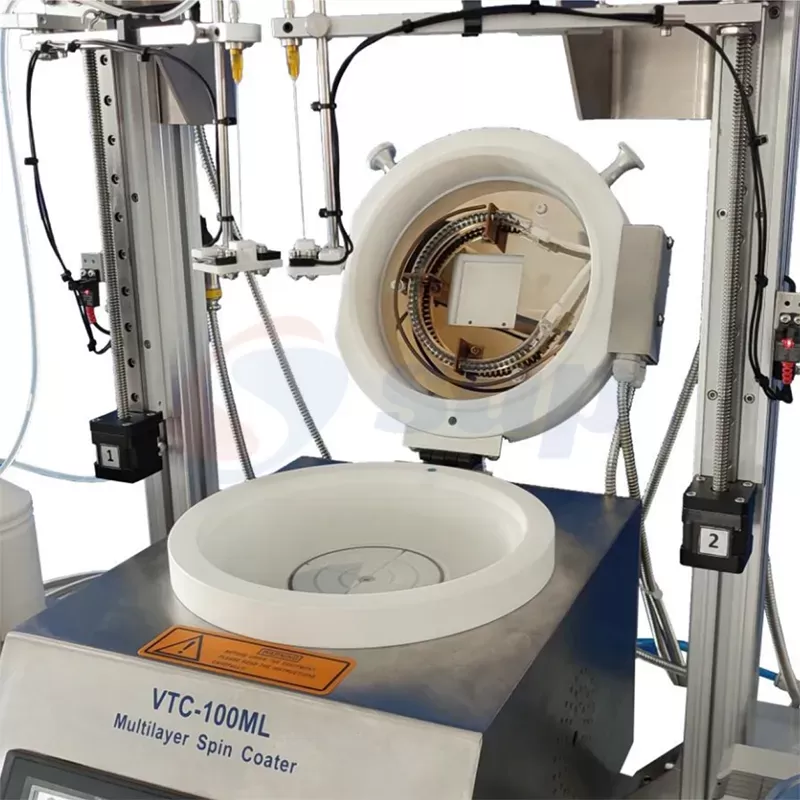

5. The chamber is made of polytetrafluoroethylene (PTFE), providing a longer lifespan, resistance to chemical corrosion, and excellent anti-stress cracking performance. The machine body is constructed of sheet metal, making it sturdy, durable, and lightweight.

6. Quick cooling can be achieved by introducing gas after heating.

7. The machine features a Chinese operating interface (an all-English operating system is available as an option).

8. It has a cover protection function; when the cover is opened during or after the coating process, the machine immediately slows down quickly until it stops.

9. The control interface uses a touchscreen, making operation simple and convenient, with intuitive display.

10. The coating process is fully automatic: automatic dispensing, automatic gas introduction, automatic spinning, and automatic drying.

11. It can alternate between coating with two liquids, allowing for a maximum of 1,000 layers of film.

Product Parameters

Product Name

Precision Automated Multilayer Perovskite Spin Coater for Laboratory

Product Model

VTC-100ML

Installation

Requirements

1. Temperature and Humidity: 10-85% RH (at 25°C, no condensation); Temperature: 0-45°C.

2. Environment: No strong vibration sources or corrosive gases in the vicinity of the equipment.

3. Water: Must have drainage for wastewater.

4. Power: Single-phase: AC 220V, 50Hz, national standard three-prong socket, 10A, with good grounding required.

5. Gas:

- Sample Plate: Vacuum negative pressure (vacuum pump) with a pumping flow rate of no less than 70L/M.

- Cooling: Compressed air or inert gas as specified.

6. Worktable: Recommended dimensions are 1500X600X700mm with a load capacity of over 100KG (solid concrete table is preferred).

7. Ventilation: No special requirements.

Main

Parameters

1. Power Supply for coating machine: DC 24V, 15A (includes standard "power adapter").

2. Power Supply for Dispensing Device: DC 24V, 15A (includes standard "power adapter").

3. Heating Power Supply: Independent power supply: AC 220V, 50Hz.

4. Total Power Consumption: ≤350W (excluding heating and external vacuum pump).

5. Heating Power: 1350W.

6. Heating Temperature: Maximum temperature: RT to 200°C.

7. Temperature Control Accuracy: ±2°C.

8. Heating Method: Radiation baking heating (carbon fiber heating tube).

9. Control Method: PLC programmer + touchscreen.

10. Coating Machine Chamber Material: Polytetrafluoroethylene (PTFE).

11. Sample Holder (Suction Cups): One set each of PTFE vacuum suction cups and aluminum suction cups (1 inch, 2 inches, 4 inches). (Use PTFE suction cups during heating; avoid using aluminum suction cups as they conduct heat quickly.)

12. Vacuum Pressure Display: Electronic digital pressure sensor (digital vacuum pressure gauge), low-pressure type: -100 to 100 kPa.

13. Coating Operation Mode: Includes two sets of programs: A and B, with up to 500 cycles; each program is divided into six operation segments.

14. Coating Rotational Speed: 500 to 10,000 rpm (set to any integer value, minimum increment of 1 rpm).

15. Acceleration and Deceleration Rate: Each segment's acceleration and deceleration range: 10 to 2000 rpm (increments in multiples of 10).

16. Speed Stability: ±1%.

17. Material Feeding Method: Dispensing device—precise quantitative liquid dispensing: paired with a flat-tip needle.

Product

specifications

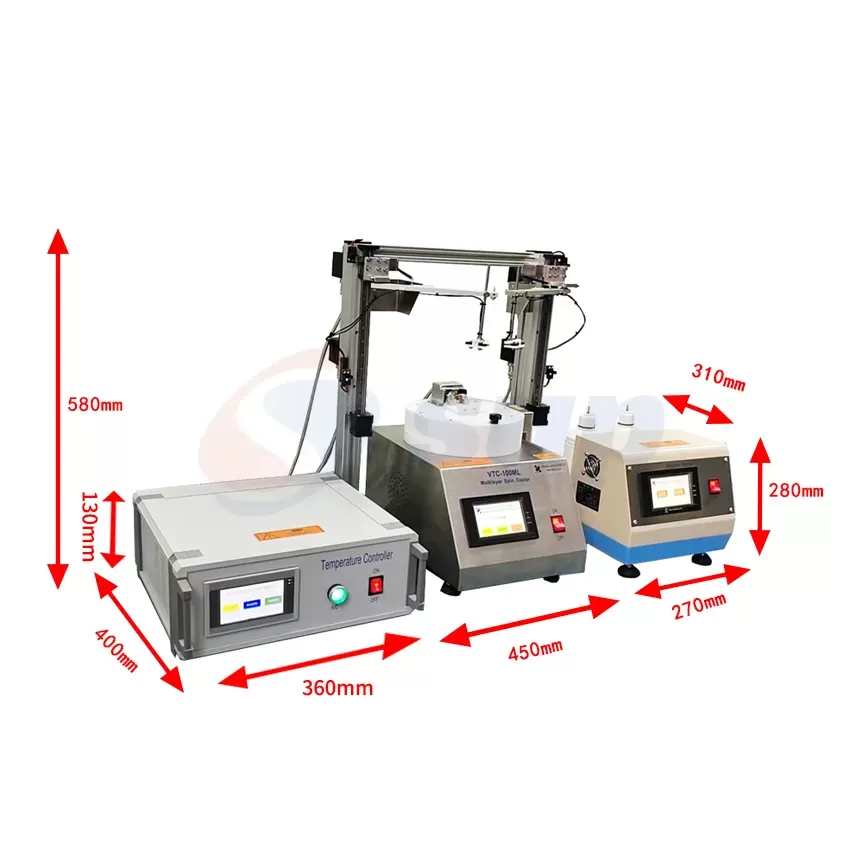

1. Dimensions:

- Main Unit: 450mm x 400mm x 580mm

- Heating Control Box: 360mm x 400mm x 130mm

- Dispensing Device: 270mm x 310mm x 280mm

2. Weight: 40kg.

Multilayer Spin Coater.webp

Standard Accessories

Item No.	Product Name	Qty
1	Vacuum Suction Cup (including O-ring)	6 pieces (Ø25.4mm, Ø50.8mm, Ø101.6mm)
2	Centering Device	3 set
3	Precision Goniometer	1 set
4	Oil-free Vacuum Pump	1 set
