Laboratory Precision Constant Temperature Dip Coater for Thin Films

Product Name: Constant Temperature Dip Coating Machine Precision Lab Thin Film Coater

Product Model: PTL-MMB01

Product Description: The PTL-MMB01 Constant Temperature Dip Coating Machine utilizes a cable-driven wire to vertically lift and immerse samples. This process involves submerging the sample in a liquid thin-film material for a specific duration and then withdrawing it, resulting in the growth of a thin film with a defined thickness on the sample surface.

Product Description

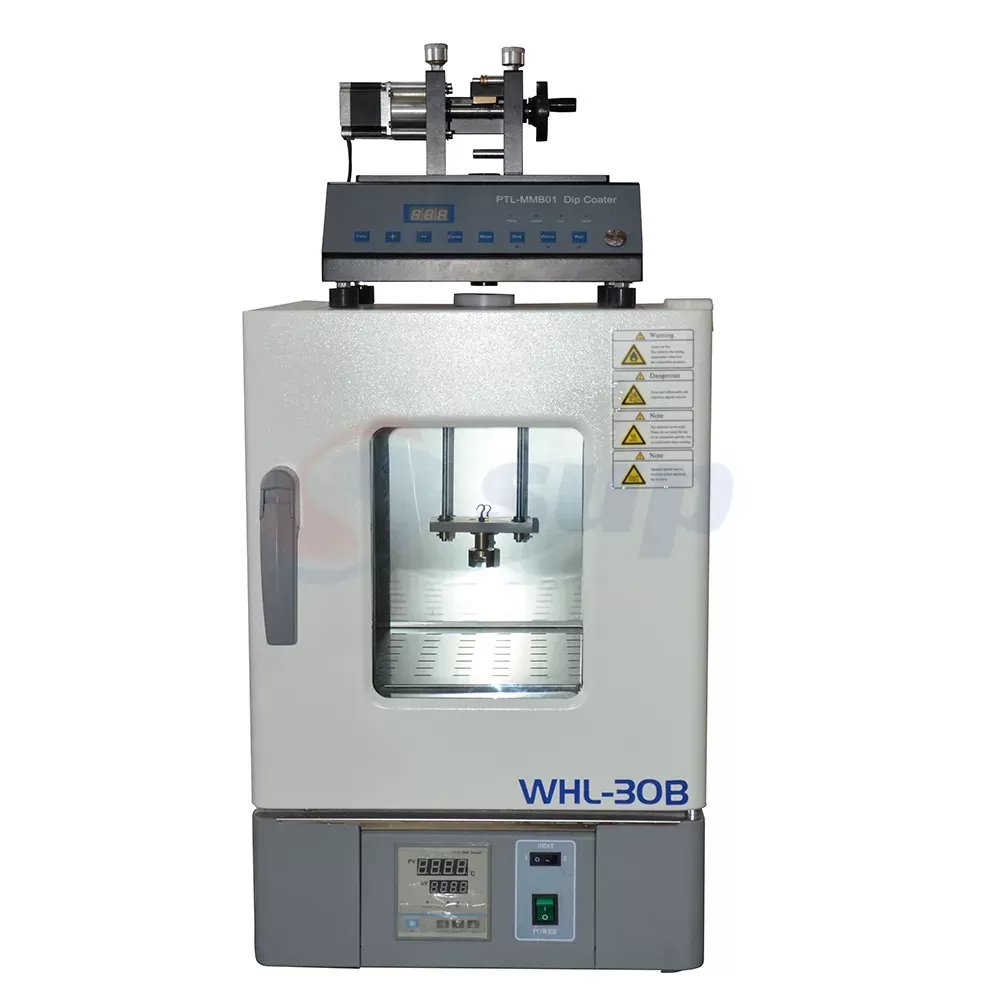

The PTL-MMB01 Constant Temperature Dip coating machine is a millimeter-scale precision dip coating equipment developed by our company for research on liquid phase thin film growth on substrates. It is a CE-certified product and an essential piece of equipment for research institutes and universities engaged in liquid phase thin film preparation.

The machine's control system is based on a self-developed, high-precision microcontroller system that controls the execution mechanism. The lifting direction is manually switchable via buttons, and the lifting speed and stroke are adjustable. The lifting and lowering process is smooth, stable, and accurate. The PTL-MMB01 Constant Temperature Dip Coating Machine employs a cable-driven wire to vertically lift samples, immersing them in a liquid thin-film material for a period of time before withdrawing them. This process allows for the growth of a thin film with a defined thickness on the sample surface.

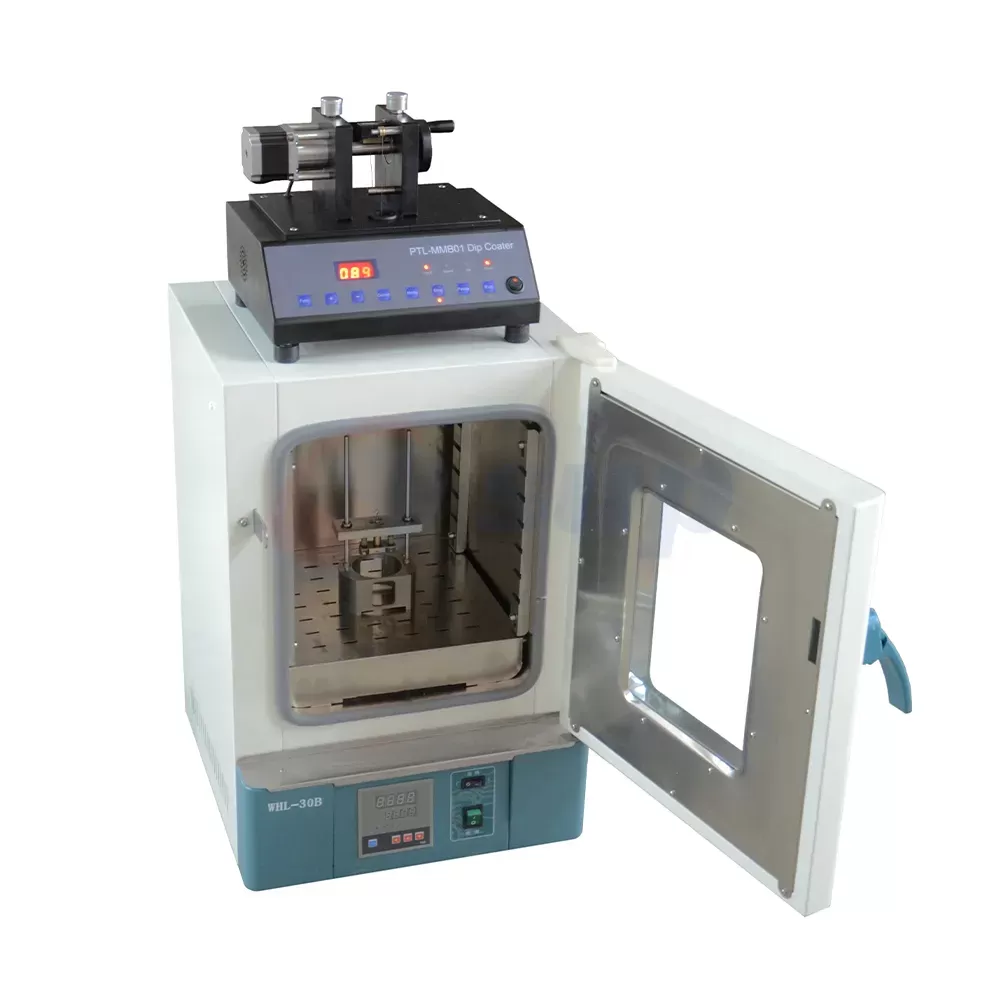

The machine offers flexible operation modes: it can be manually controlled to immerse samples in the liquid thin-film material, followed by automatic retrieval, or automatically controlled for sample immersion with manual retrieval. Furthermore, this unit is equipped with a built-in constant temperature drying oven capable of reaching up to 100℃. This feature ensures that the thin film growth process is conducted under a precisely maintained and stable temperature environment. This series of machines is compact in size, simple to operate, and easy to move, making it widely applicable in laboratories across universities, research institutes, and corporate units.

Product Features

1. Provide a stable constant temperature dip coating environment.

2. The entire process of dip coating is carried out within a constant temperature field, which is beneficial for film formation and solidification.

3. This machine is simple and convenient to operate and easy to clean, making it suitable for beginners.

4. This machine is small in size and cost-effective, saving laboratory space.

5. It adopts a high-precision stepper motor drive and wire-driven lifting technology for vibration reduction.

Product Parameters

Product Name	Laboratory Precision Constant Temperature Dip Coater for Thin Films
Product Model	PTL-MMB01
Installation Requirements	1. Power Supply: AC220V 50/60Hz National Standard 10A Socket, reliable grounding is mandatory. 2. Operating Environment: Temperature 25℃±15℃, Humidity 55%Rh±10%Rh.
Main Parameters	1. Lifting Host Operating Voltage: DC24V 3.75A (Standard configuration: "Power Adapter")
	2. Lifting Host Power: 50W
	3. Type: Constant Temperature Type (with constant temperature oven)
	4. Drive Motor: High-precision stepper motor
	5. Speed Setting Range: 1-200mm/min
	6. Maximum Sample Holder Sliding Stroke: 75mm
	7. Effective Immersion Length: 60mm
	8. Maximum Lifting Load: <100g
	9. Substrate Size: 75mm×25mm×2.5mm
	Constant Temperature Oven Parameters: 1. Operating Voltage: AC220V 50/60Hz 2. Rated Current: 3.6A 3. Rated Heating Power: 0.8KW 4. Temperature Range: RT Room Temperature ~ +100℃ 5. Temperature Control/Setting Method: Dual Digital Tube PID / Touch-sensitive four-button setting 6. Heating Operation Timer: 0~9999 minutes or hours 7. Internal Dimensions (Volume): 310mm×310mm×310mm (30L) 8. External Dimensions: 428mm×500mm×723mm

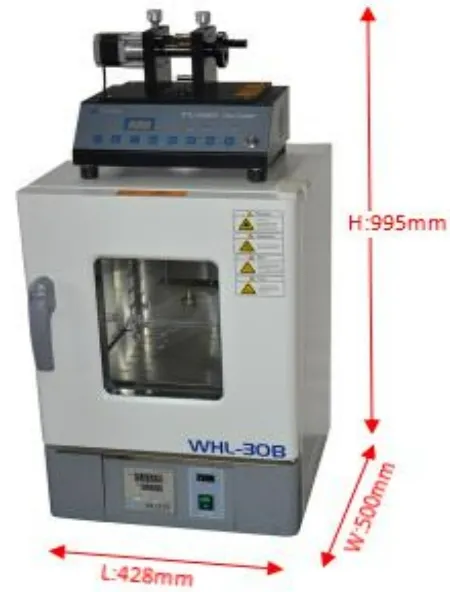

Product specifications	Dimensions: 428mm×500mm×995mm Weight: 50kg
Note: 1. The standard configuration of the "power adapter" is: IN: AC100-240V 50/60Hz OUT: DC-24V 3.75A. The actual power supply of the equipment is subject to the label affixed to the rear of the product; 2. Customizable AC110V 50/60Hz constant temperature drying oven;
