Precision Millimeter-Scale Constant Temperature Programmable Dip Coating Machine for Laboratory Thin Film Research

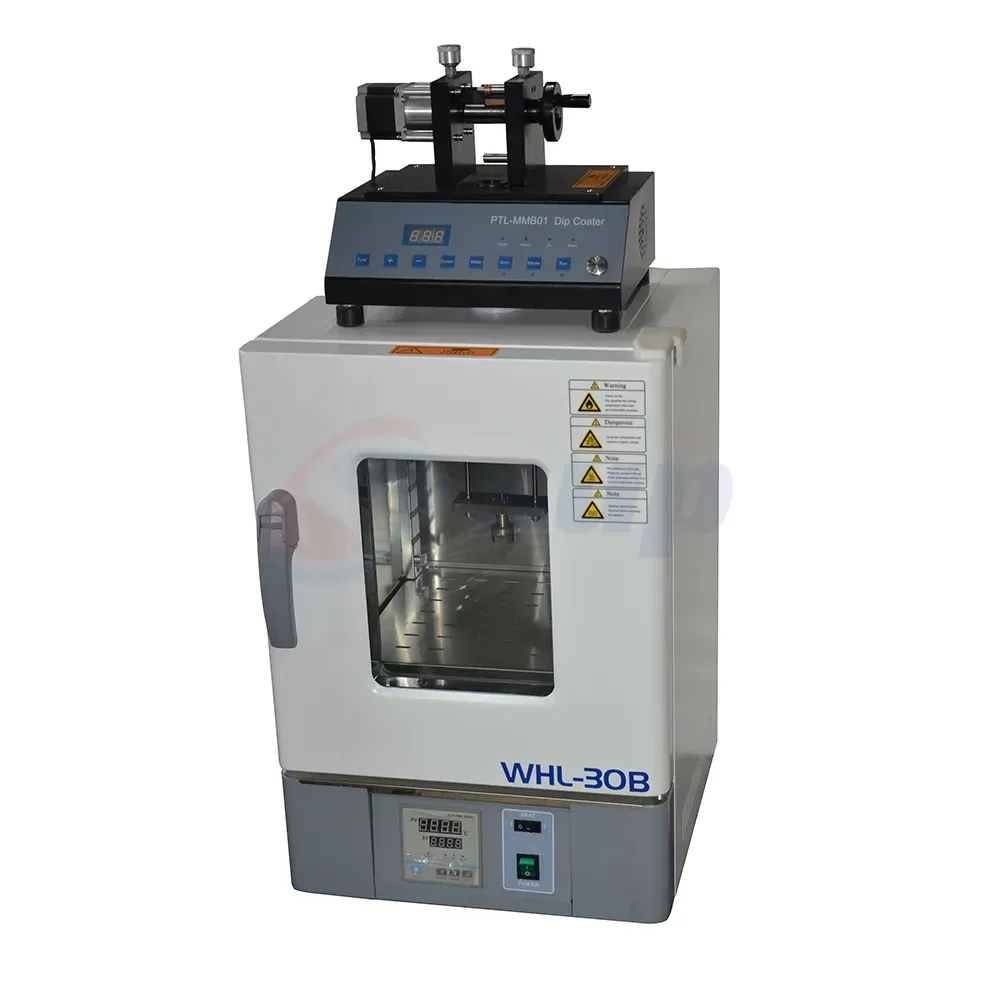

Product Name: Precision Constant Temperature Programmable Dip Coater

Product Model: PTL-MMB02

Product Description: The PTL-MMB02 This series of models adopts a PLC program control system, which controls the high-precision stepping motor to cooperate with the control mechanism and the lifting wire for lifting and lifting operation. The lifting process runs smoothly and accurately. Through vertical dipping and lifting of the sample, the sample is immersed in the liquid thin film material for a period of time and then lifted out, so that a thin film of a certain thickness grows on the surface of the sample.

Product Description

PTL-MMB02 Programmable Dip coating machine is a CE-certified product, a millimeter-scale precision lifting device specially designed by our company for liquid-phase dipping and lifting coating experiments. It is an indispensable product and equipment for research institutes and laboratories engaged in liquid-phase film growth. This series of models adopts a PLC program control system, which controls the high-precision stepping motor to cooperate with the control mechanism and the lifting wire for lifting and lifting operation.

The lifting process runs smoothly and accurately. Through vertical dipping and lifting of the sample, the sample is immersed in the liquid thin film material for a period of time and then lifted out, so that a thin film of a certain thickness grows on the surface of the sample. Two program running modes of "single run" and "full run" can be selected. The program can independently set the lifting speed of the sample, the lowering speed into the liquid, the immersion time of the sample in the liquid thin film material, the drying time of the sample, and the number of cycles of the sample entering and exiting the liquid thin film material.

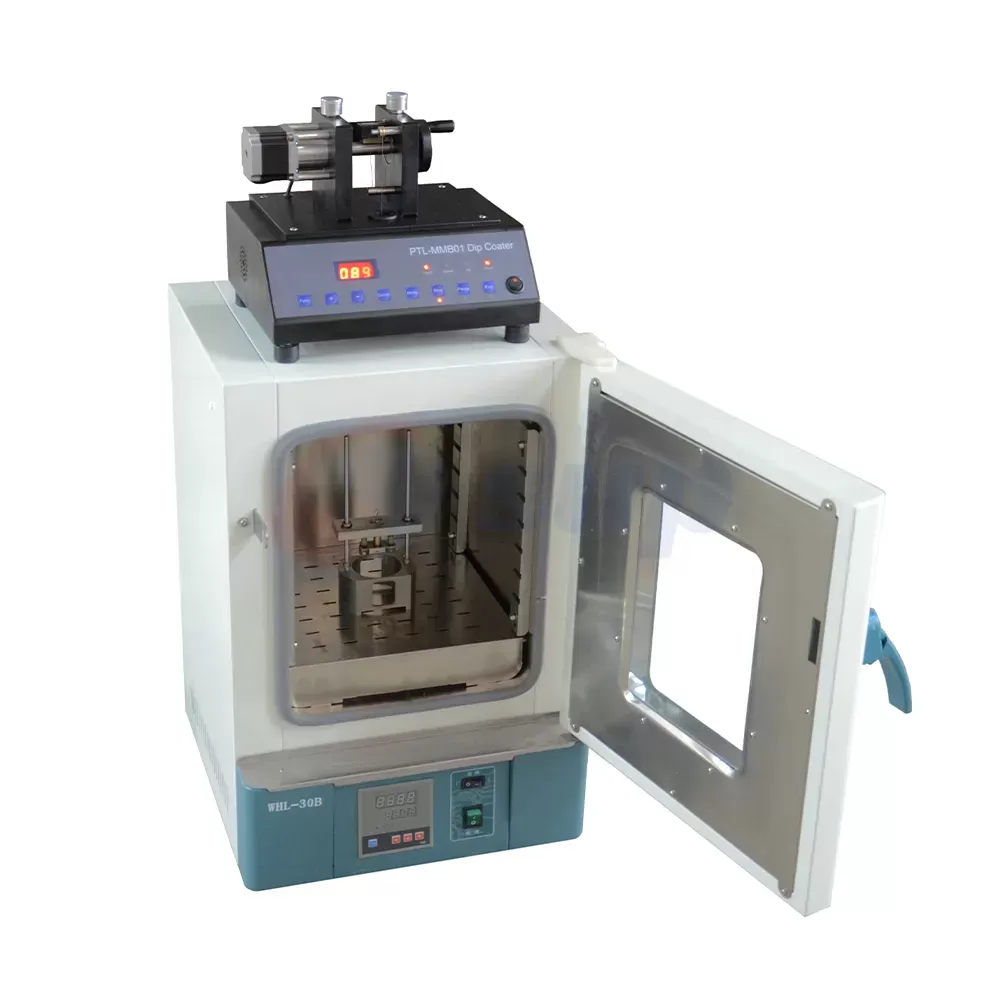

This series of programmable lifting coating machines is divided into PTL-MM02 normal temperature type (i.e. room temperature) and PTL-MMB02 constant temperature type with a constant temperature heating drying box. You can choose the appropriate model according to the process temperature requirements for lifting and coating film growth. This series of models has a small volume, simple operation, convenient handling, and is widely used in laboratories of universities, research institutes and enterprises.

Product Features

1. Equipped with a 4.3-inch color touch screen, the control interface is simple and clear, making it suitable for beginners.

2. This series of models is small in size and cost-effective, saving laboratory space.

3. It adopts PLC program control, high-precision stepper motor drive, and a suspended wire transmission lifting technology for vibration reduction.

Product Parameters

Product Name	Precision Millimeter-Scale Constant Temperature Programmable Dip Coating Machine
Product Model	PTL-MMB02
Installation Requirements	1. Power Supply: AC220V 50/60Hz National Standard 10A Socket, reliable grounding is mandatory. 2. Operating Environment: Temperature 25℃±15℃, Humidity 55%Rh±10%Rh.
Main Parameters	1. Power Supply: DC24V 3.75A (Standard: AC100~240V Power Adapter)
	2. Power: 50W
	3. Type: Programmable Constant Temperature (with heated chamber)
	4. Drive Motor: High-precision stepper motor
	5. Speed Setting Range: 1-200mm/min
	6. Dwell Time: 1-999s
	7. Drying Time: 1-999s
	8. Stroke: 1-75mm
	9. Cycles: 1-20 times
	10. Effective Immersion Length: 60mm
	11. Maximum Lifting Load: <100g
	12. Substrate Size: 75mm × 25mm × 2.5mm
	13. Display & Control: 4.3-inch color touch screen
	Constant Temperature Oven Parameters: 1. Operating Voltage: AC220V 50/60Hz 2. Rated Current: 3.6A 3. Rated Heating Power: 0.8KW 4. Temperature Range: RT Room Temperature ~ +100℃ 5. Temperature Control/Setting Method: Dual Digital Tube PID / Touch-sensitive four-button setting 6. Heating Operation Timer: 0~9999 minutes or hours 7. Internal Dimensions (Volume): 310mm×310mm×310mm (30L) 8. External Dimensions: 428mm×500mm×723mm

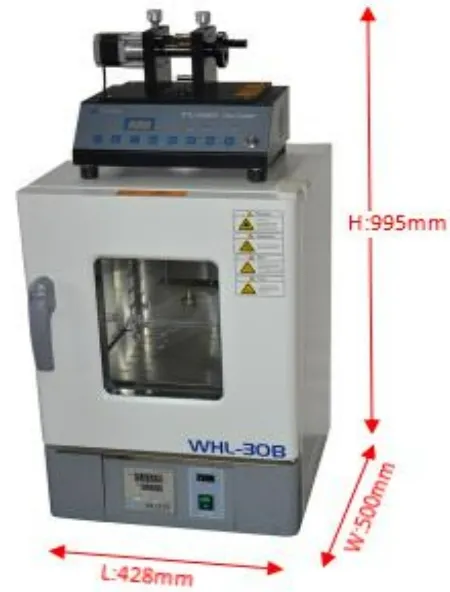

Product specifications	Dimensions: 428mm×500mm×995mm Weight: 50kg
Note: 1. The standard configuration of the "power adapter" is: IN: AC100-240V 50/60Hz OUT: DC-24V 3.75A. The actual power supply of the equipment is subject to the label affixed to the rear of the product; 2. Customizable AC110V 50/60Hz constant temperature drying oven;
