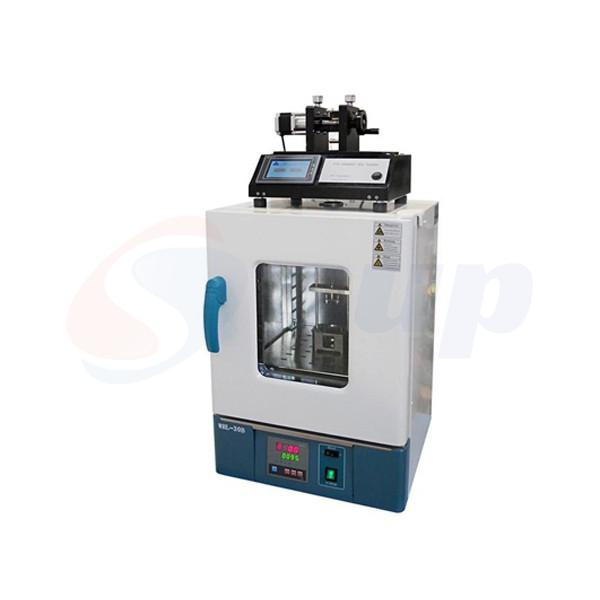

Product Name: Nano-Level Constant Temperature Dip Spin Coater for Precision Film Deposition and Coating Applications
Product Model: PTL-NMB
Product Description: The PTL-NMB Nano-Level Constant Temperature Dip Spin Coater is designed for nano-level measurement and specifically for dip coating in liquid phases. By vertically lifting the samples immersed in the liquid phase, a film is grown on the surface.
This machine is primarily used for the research of nanomaterials, surface treatment, and other material coatings, making it an ideal device for universities and research institutions.
Product Description
The PTL-NMB Nano-Level Constant Temperature Spin Dip Coater utilizes a PLC control system, with a color touchscreen serving as the data input and output interface to display parameters such as lifting speed, lifting height, number of lifts, immersion time, and drying time. The machine is equipped with a constant temperature drying oven, ensuring that the film growth process occurs at a stable temperature, which aids in the curing of the films.
The PTL-NMB is compact in design, saving valuable laboratory space, and features simple operation, making it suitable for beginners. Its easy cleaning process further enhances usability.
Product Features
1. Features a color touchscreen with a clear interface for easy parameter setting.
2. The entire immersion and dip coating process occurs within a constant temperature environment, which is beneficial for film formation and curing.
3. Utilizes suspended motor technology for vibration reduction.
4. Incorporates a high-precision stepper motor.
5. Safe and reliable operation, with a straightforward user interface.
6. Certified with CE standards.
Product Parameters
| Product Name | Nano-Level Constant Temperature Dip Spin Coater for Precision Film Deposition and Coating Applications |
| Product Model | PTL-NMB |
Installation Requirements | This equipment is required to operate under the following conditions: temperature 25°C ± 15°C and humidity 55% RH ± 10% RH. 1. Water: Not required. 2. Power: AC 220V, 50Hz, must have good grounding. 3. Gas: Not required. 4. Workbench: Dimensions 800 mm x 600 mm x 700 mm, with a load capacity of over 200 kg. 5. Ventilation: Not required. |
Main Parameters | 1. Power Supply: 220V, 850W 2. Lifting Speed: 1 nm/s to 500 nm/s 3. Effective Immersion Length: 60 mm 4. Immersion and Drying Time Settings: 1-999 seconds 5. Number of Lifts: 1-20 times 6. Temperature: RT-100°C 7. Sample Dimensions: 75 mm x 25 mm x 2.5 mm **Constant Temperature Chamber Technical Parameters:** 1. Temperature Range: Room Temperature +5 to 100°C 2. Temperature Fluctuation: ±1.5°C 3. Dimensions: 460 mm x 510 mm x 695 mm |
Product specifications | Dimensions: 450 mm x 500 mm x 970 mm |
Standard Accessories
| Item No. | Product Name | Qty |
| 1 | Coating Fixture | 1 set |
| 2 | Loading Cup | 1 set |
| 3 | Lifting Wire | 3 set |
