Precision multi-station vertical dip coating machine for thin film growth

Product Name: Precision multi-station dip coater for thin film research

Product Model: PTL-MM02-8P

Product Description:

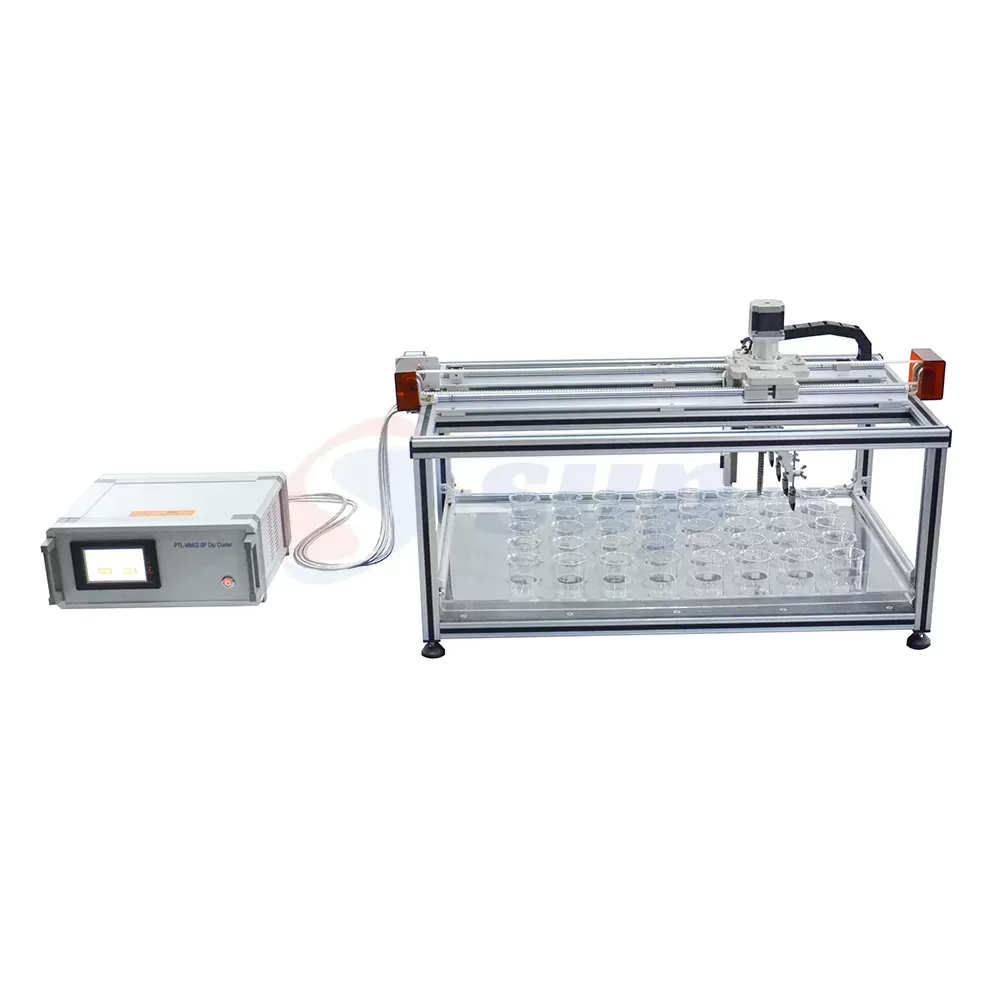

PTL-MM02-8P dip coating machine is a precision instrument designed for studying liquid phase thin film growth. It grows thin films on the surface of samples by vertically lifting the samples immersed in the liquid phase. The PTL-MM02-8P dip coating machine adopts a high-precision speed control system and a touch screen parameter input terminal, and realizes the fully automatic control of lifting and coating 5 samples at the same time.

Product Description

The PTL-MM02-8P dip coating machine is a precision instrument designed for studying liquid phase thin film growth. It grows thin films on the surface of samples by vertically lifting the samples immersed in the liquid phase. The PTL-MM02-8P dip coating machine adopts a high-precision speed control system and a touch screen parameter input terminal, and realizes the fully automatic control of lifting and coating 5 samples at the same time.

The speed of sample entering and leaving the liquid phase thin film material, the immersion time in the liquid phase thin film material, and the number of lifting cycles of the sample can be set by the control box. The PTL-MM02-8P dip coating machine is small in size and saves laboratory space; it is easy to operate and suitable for beginners; and it is easy to clean. Therefore, the machine is widely used in laboratories of universities, research institutes and enterprises.

Product Features

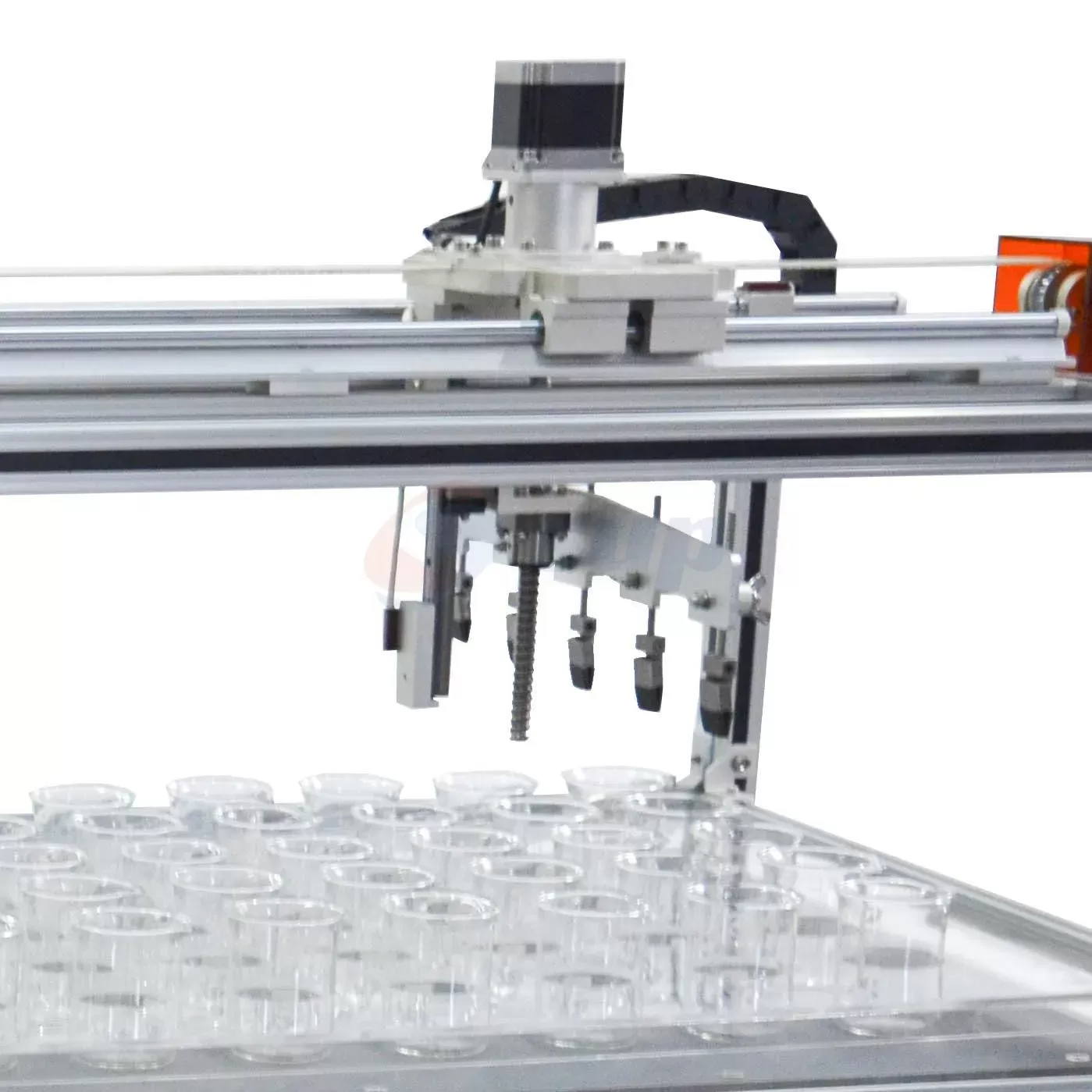

1. Up to 5 groups of samples can be lifted at a time, with 8 stations per group.

2. Each of the 8 stations can be set with different lifting speeds, immersion times, and drying times.

3. High-precision stepper motor is adopted.

4. Wide range of applications.

5. Has passed CE certification.

Product Parameters

Product Name	Precision multi-station vertical dip coating machine for thin film growth
Product Model	PTL-MM02-8P
Installation Requirements	This equipment is required to be used at a temperature of 25℃±15℃ and humidity of 55%Rh±10%Rh. 1. Water: Not required 2. Electricity: AC220V 50Hz, must have good grounding 3. Gas: Not required 4. Workbench: Dimensions 800mm×600mm×700mm, bearing capacity over 200kg 5. Ventilation device: Not required
Main Parameters	1. Power supply: 220V 50Hz
	2. X-axis speed: 500mm/min-5000mm/min
	3. Z-axis speed: 1mm/min-200mm/min
	4. Effective immersion length: 65mm
	5. Sample size: 75mm×25mm×2.5mm
	6. Number of samples lifted simultaneously: 5
	7. Lifting stations per sample: 8
	8. Immersion and drying time setting: 1-999s
	9. Cycle times: 1-999 times

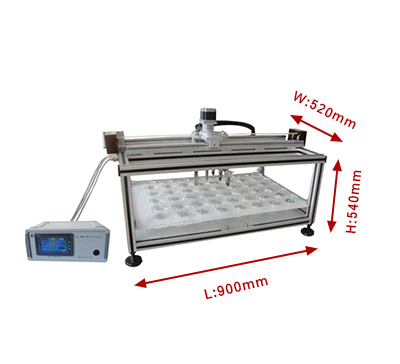

Product specifications	Dimensions: 900mm × 520mm × 540mm Weight: 20kg

Standard Accessories

Item No.	Product Name	Qty
1	Fixture plate for sample carrier	1 set
2	Fixture plate for clips	1 set
3	Sample carrier	40 set
4	Clip	5 set
5	Protective cover	2 set

Optional Accessories

Item No.

Product Name

Qty

Different sizes of sample carriers and sample carrier

fixtures can be customized according to your needs.

Optional

Constant Temperature Water Bath (Power: 800W; Constant Temperature: RT-70℃; Temperature Accuracy: ±1℃ without environmental influence; Volume: 25L)

Optional
