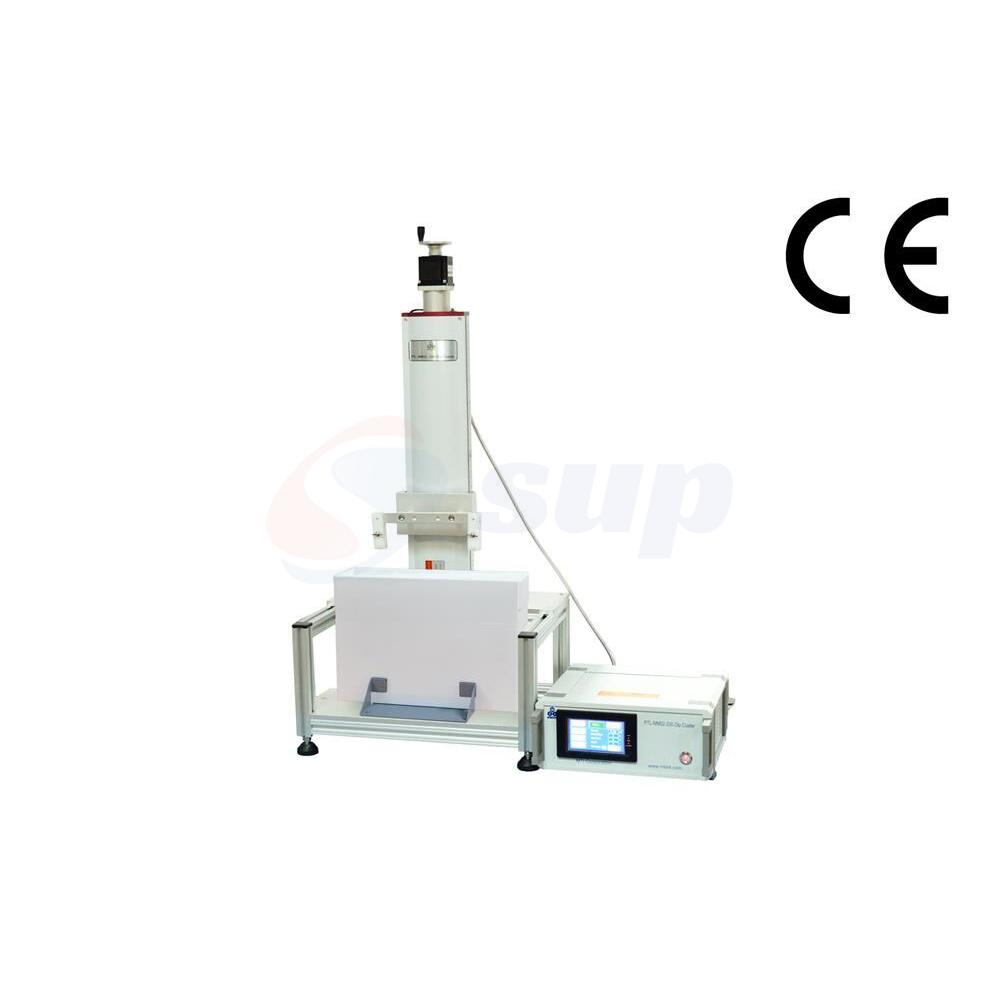

Precision Program-controlled Vertical Dip Coater Coating Machine for Thin Film Research

Product Name: Programmed Precision Vertical Dip Coater

Product Model: PTL-MM02-200

Product Description: The PTL-MM02-200 Program-controlled Vertical Dip Coater is a precision instrument specifically designed for research on liquid-phase growth thin films. It grows thin films by vertically dip and immersing samples in a liquid phase. This dip coater is capable of coating larger samples, with sample sizes up to 310mm × 260mm and thicknesses from 1mm to 5mm. Customizable sample holders allow for simultaneous processing of multiple samples in a single run.

Product Description

The PTL-MM02-200 Program-controlled Vertical Dip Coater is a precision instrument specifically designed for research on liquid-phase growth thin films. It grows thin films by vertically dip and immersing samples in a liquid phase. This Dip Coater is capable of coating larger samples, with sample sizes up to 310mm × 260mm and thicknesses from 1mm to 5mm. Customizable sample holders allow for simultaneous processing of multiple samples in a single run.

Key parameters such as sample drawing speed, immersion time in the liquid-phase thin film material, sample immersion speed, coating cycle times, and sample drying time are all controllable through the integrated control system. The PTL-MM02-200 Program-controlled Vertical Dip Coater features a high-precision speed control system and a touch screen parameter input interface, enabling fully automated control throughout the dip coating process.

With its compact size and user-friendly operation, this Dip Coater is an ideal piece of equipment for coating large-area samples at room temperature in laboratories and small-scale production workshops.

Product Features

1. Euipped with a touch control screen, allowing users to set the drawing speed, immersion speed, and dwell time according to actual needs.

2. Drawing speed, immersion time, immersion speed, cycle times, and drying time are all adjustable.

3. Employs a high-precision stepper motor.

4. CE certified.

Product Parameters

Product Name	Precision Program-controlled Vertical Dip Coater coating machine for Thin Film Research
Product Model	PTL-MM02-200
Installation Requirements	This equipment is required to be used at a temperature of 25℃±15℃ and humidity of 55%Rh±10%Rh. 1、Water: Not required 2、Electricity: AC220V 50Hz, must have good grounding 3、Gas: Not required 4、Workbench: Dimensions 800mm×600mm×700mm, Load-bearing capacity above 200kg 5、Ventilation device: Not required
Main Parameters	1. Power Supply: 220V (50Hz)
	2. Operation (Up/Down) Speed: 1mm/min - 200mm/min
	3. Stroke: 270mm
	4. Sample Size: (Length) 310mm × (Width) 260mm × (Thickness) 1~5mm
	5. Lifting Load: ≤5.5kg
	6. Two-phase Hybrid Stepper Motor with Driver for Microstepping
	7. Immersion & Drying Time Setting: 1-999s
	8. Number of Drawing Cycles: 1-20 times
Product specifications	Dimensions: 455mm（L)x330mm（W)x890mm（H)
