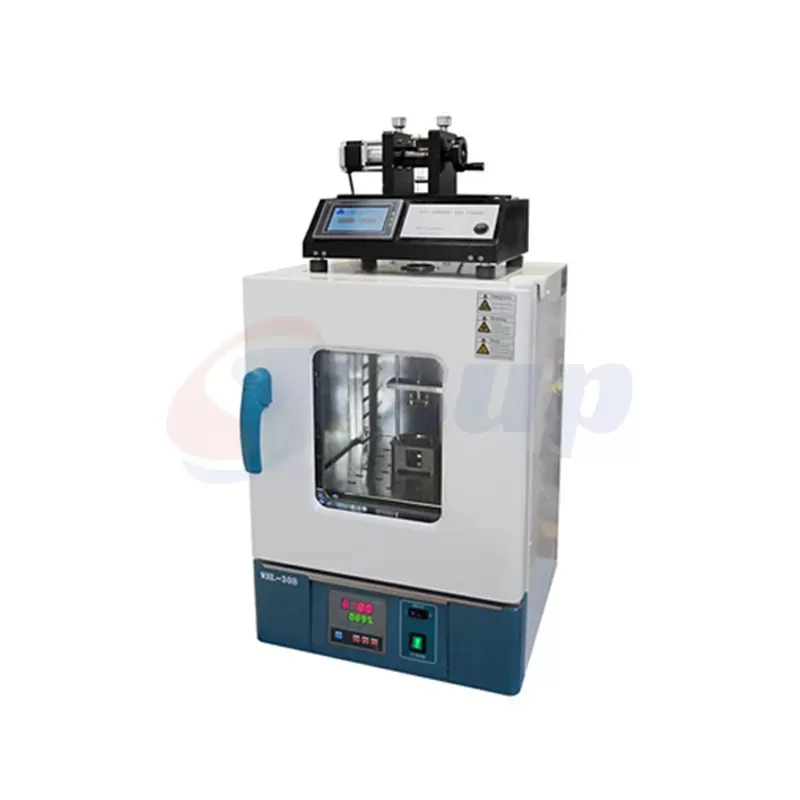

Micron-Level Thermostatic Dip Coater machine for Precision Film Deposition and Coating Applications PTL-UMB

Product Name: Micron Thermostatic Dip Coater for Precision Coating

Product Model: PTL-UMB

Product Description: The PTL-UMB Micron-Level Thermostatic Draw Coater is a CE certified product. Developed in-house by our company, this precision dip-coating system, designed specifically for liquid-phase immersion and draw coating experiments, offers micron-level measurement accuracy. It is an indispensable product and equipment for research institutes and laboratories engaged in liquid-phase film growth and fabrication.

Product Description

This model utilizes a PLC program control system, employing a high-precision stepper motor in conjunction with a controlled actuator and lifting wire to execute vertical lifting and drawing operations. The lifting process is characterized by smooth and precise movement. By vertically immersing and drawing the sample, the substrate is immersed in the liquid-phase thin film material for a specified duration and then withdrawn, thereby enabling the growth of a thin film of a defined thickness on the sample surface.

Two program operation modes are selectable: "Single-Run Operation" and "Full-Run Operation". The program allows for independent setting of parameters such as the sample's upward drawing speed, downward immersion speed, immersion dwell time in the liquid-phase thin film material, sample drying time, and the number of cycles for sample entry and exit from the liquid-phase thin film material.

This programmed-control draw coater is a thermostatic heating type coating equipment, equipped with a thermostatic heating drying chamber. You can set a constant heating temperature value based on the process temperature requirements for draw coating growth.

This model is characterized by its compact size, simple operation, and convenient portability, making it widely applicable in laboratories of universities, research institutes, and corporate units.

Product Features

1. Equipped with a 4.3-inch color touch screen, the control interface is simple and clear, making it suitable for beginners.

2. This series of models is characterized by its compact size and high cost-performance ratio, saving valuable laboratory operating space.

3. Utilizing a PLC program to control a high-precision stepper motor drive, it employs a suspended wire conduction lifting technology for vibration reduction.

Product Parameters

Product Name	Micron-Level Thermostatic Dip Coater Machine for Precision Film Deposition and Coating Applications
Product Model	PTL-UMB
Installation Requirements	1. Power Supply: AC220V 50/60Hz, National Standard 10A socket, must have good grounding; 2. Operating Environment: Temperature 25℃±15℃, Humidity 55%Rh±10%Rh.
Main Parameters	Drawing Host Working Voltage: DC24V 3.75A (Standard: AC100~240V Power Adapter)
	Drawing Host Power: 50w
	Type: Program-controlled Thermostatic Type (with Thermostatic Chamber)
	Drive Motor: High-Precision Stepper Motor
	Speed Setting Range: 1-500um/s
	Dwell Time: 1-999s
	Drying Time: 1-999s
	Drawing Stroke: 1-75mm
	Drawing Cycles: 1-20 times
	Effective Immersion Length: 60mm
	Upper Limit of Drawing Load: <100g
	Sample Substrate Size: 75mm×25mm×2.5mm (Can Clamp 2 Pieces Simultaneously)
	Display Control: 4.3-inch Color Touch Screen
	Thermostatic Chamber Parameters: • Working Voltage: AC220V 50/60Hz • Rated Current: 3.6A • Heating Rated Power: 0.8KW • Temperature Range: RT Room Temperature ~ +100℃ • Temperature Control/Setting Method: Digital Tube Dual Row PID / Light Touch Four-Button Setting • Heating Running Timer: 0~9999 Minutes or Hours • Internal Dimensions (Volume): 310mm×310mm×310mm (30L) • External Dimensions: 428mm×500mm×723mm

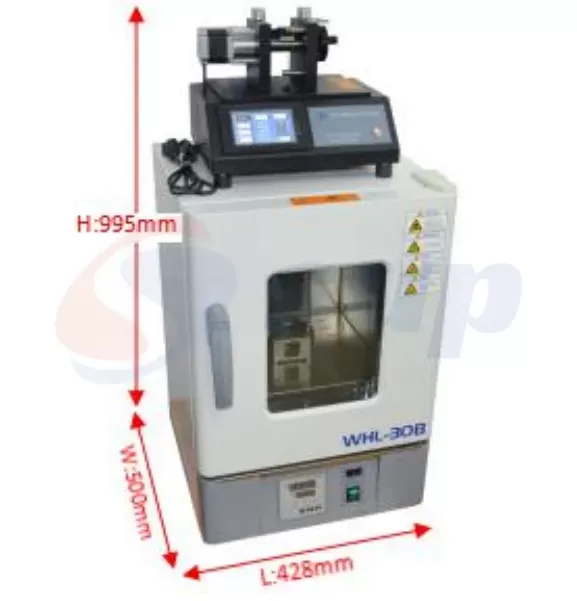

Product specifications	Dimensions: 428mm×500mm×995mm, Weight: ≈50kg (Including Thermostatic Chamber)

Note:

1. Standard configuration "Power Adapter" specifications: IN: AC100-240V 50/60Hz OUT: DC-24V 3.75A. The actual power supply of the equipment is subject to the label affixed to the rear of the product;
2. AC110V 50/60Hz Thermostatic Drying Oven can be customized;
