Importance of Uniform Temperature Treatment in Rapid Thermal Processing(RTP) Furnaces and Steps to Achieve Uniform Temperature

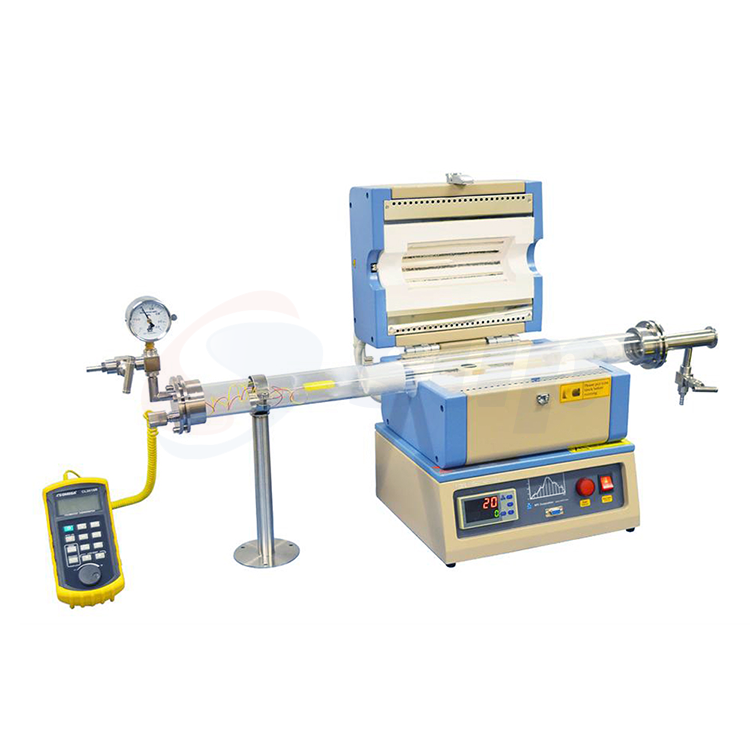

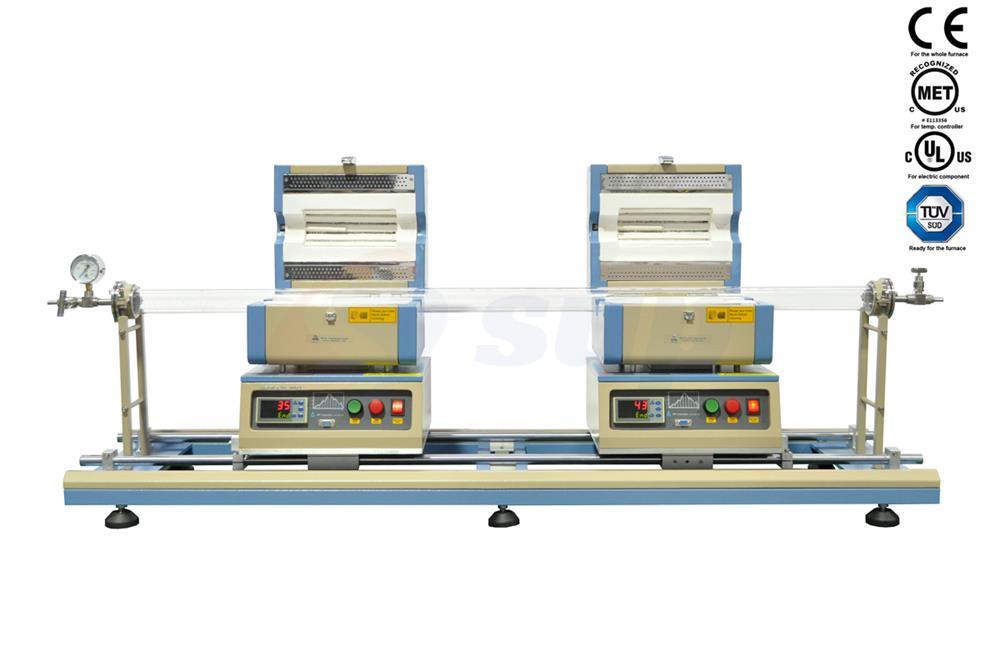

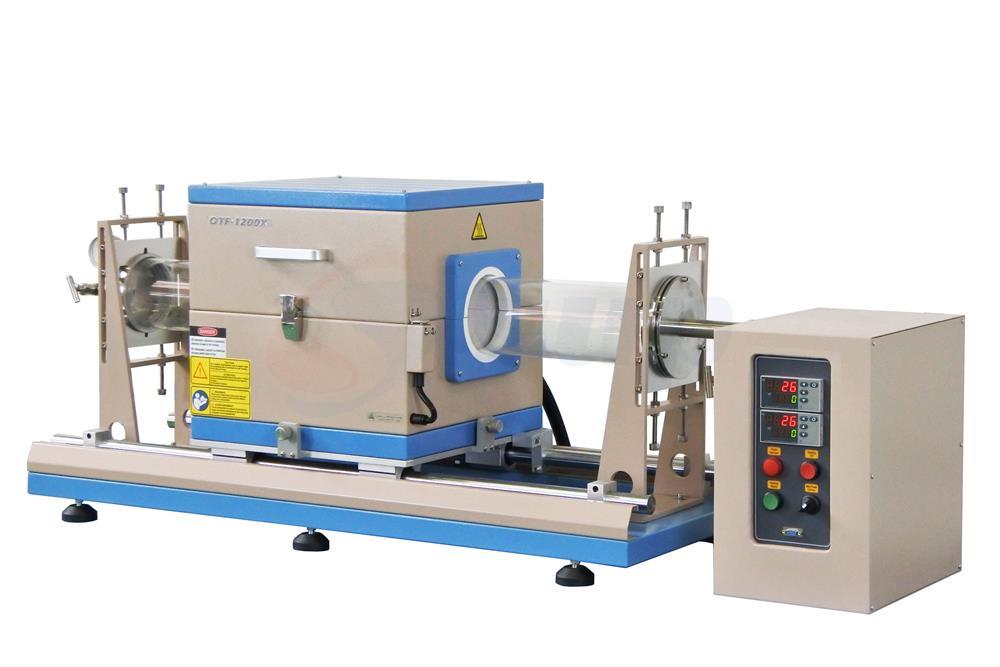

RTP Tube Furnace (Rapid Thermal Processing furnaces) are devices used in semiconductor device manufacturing and materials research. Their operating principle involves rapidly heating and cooling materials to alter their properties or structures. RTP furnaces are commonly used for ion implantation annealing, quick annealing after ITO deposition, and the growth of oxides and nitrides.

Core Technologies of Rapid Thermal Processing RTP tube Furnaces

The core technologies of RTP rapid thermal processing furnaces include the design of the reaction chamber (including the heat source), temperature measurement techniques, and temperature control technologies. Among these, uniform temperature treatment technology is a key aspect of temperature control. The unique uniform temperature treatment technology of RTP furnaces has revolutionized high-temperature processing of materials, utilizing advanced heating systems to uniformly heat materials to the desired temperature in a short period, ensuring even heating during the treatment process.

Importance of Uniform Temperature Treatment in Rapid Thermal Processing Furnaces

First, the uniform temperature treatment in rapid thermal processing furnaces significantly improves production efficiency. By shortening processing time, companies can complete production tasks more quickly, thus saving time and costs. Second, the uniform temperature treatment technology helps achieve higher quality and more stable products. Because materials are heated uniformly, their performance becomes more stable and conforms better to product specifications and standards. Additionally, the uniform temperature treatment methodology contributes to increased product reliability. Materials subjected to uniform temperature treatment exhibit more stable mechanical properties, leading to longer product lifespans and lower failure rates.

In summary, the uniform temperature treatment of rapid thermal processing furnaces plays a crucial role in enhancing wafer production efficiency, product quality, and product reliability.

Steps to Achieve Uniform Temperature Effect

To achieve uniform temperature effects, rapid thermal processing furnaces must follow these steps:

1. Preheating Stage: Before starting the annealing process, the rapid thermal processing furnace needs to undergo preheating to ensure an even temperature in the chamber for precise temperature control. The first round of preheating requires the use of a dummy wafer to ensure uniformity during the heating process. The furnace temperature gradually increases to avoid temperature fluctuations during the annealing process.

2. Wafer Loading: After preheating, the dummy wafer is removed at temperatures below 100°C, and the wafer samples are placed onto the carrier. During this step, it is important to decide whether to place a dummy wafer under the samples based on their size to ensure the uniformity of the carrier temperature. If multiple samples are processed simultaneously, they should be positioned in different locations within the furnace, avoiding stacking or tight arrangements.

3. Rapid Heating: Once the wafers are loaded, the chamber temperature is rapidly raised to the preset annealing temperature. The faster the heating rate, the less time the wafers spend in the furnace, thereby reducing the risk of oxidation.

4. Uniform Temperature Stage: When the chamber temperature reaches the preset annealing temperature, it enters the uniform temperature stage. During this phase, the furnace temperature remains stable to ensure that all wafers and each position on the wafers are heated uniformly. The uniform temperature time typically lasts for 10-15 minutes.

5. Cooling Stage: After the uniform temperature stage is complete, the furnace temperature should be quickly lowered to room temperature to conclude the cooling process.

By following these steps, rapid thermal processing furnaces can effectively achieve uniform temperature effects, ensuring that wafers acquire uniform physical and mechanical properties during the annealing process. Overall, rapid thermal processing furnaces utilize advanced control systems and temperature sensors to achieve precise control and real-time monitoring of furnace temperatures. These technologies ensure the stability and uniformity of the furnace temperature, further enhancing the efficiency of the annealing process and the quality of the products.
