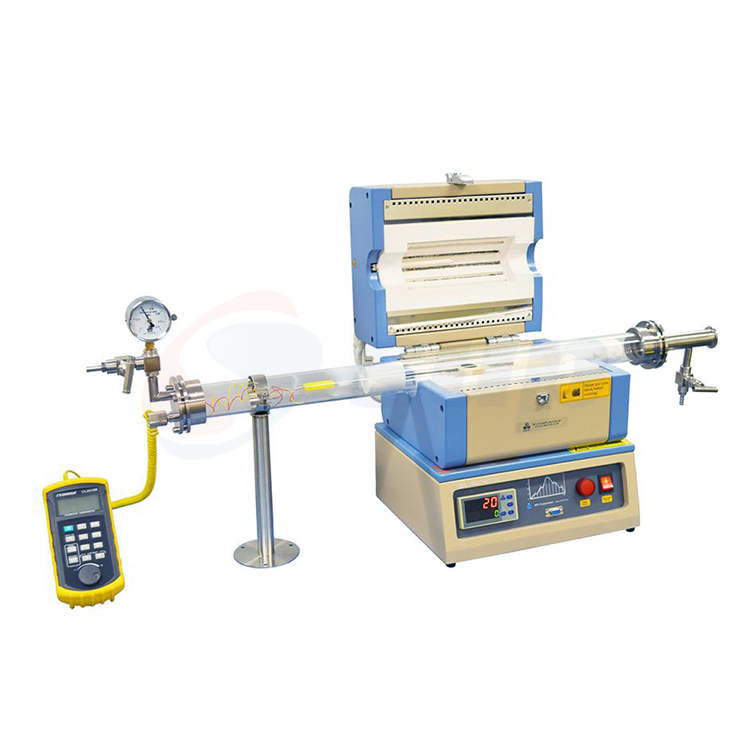

Compact Movable Crucible RTP Tube Furnace Max 1200℃ for Annealing Rapid Thermal Processing

Product Name: Compact Movable Crucible RTP Tube Furnace Max 1200℃ for Annealing Rapid Thermal Processing

Product Model: OTF-1200X-S-DVD

Product Description: The OTF-1200X-S-DVD is a compact movable crucible tube furnace that utilizes magnets to drive the crucible's movement. With a tube diameter of 50mm and a maximum operating temperature of 1200℃, this device is specifically designed for direct evaporation deposition or rapid thermal processing experiments, particularly for the growth of two-dimensional materials.

EMAIL

Product Description

The OTF-1200X-S-DVD is a compact movable crucible RTP Tube Furnace that utilizes magnets to drive the crucible's movement. With a tube diameter of 50mm and a maximum operating temperature of 1200℃, this device is specifically designed for direct evaporation deposition or rapid thermal processing experiments, particularly for the growth of two-dimensional materials.


Product Features

1. A high thermal conductivity aluminum oxide sample tray (50mm L x 25mm W) is fixed on a K-type thermocouple. The external magnets manually move the furnace tube, allowing the thermocouple and sample tray to slide within the tube for evaporation or deposition of the sample material.

2. A precision temperature display instrument certified by NIST is connected to the thermocouple via a flange, providing real-time temperature readings of the sample.

3. A magnet is embedded in the plug inside the furnace tube, with a maximum temperature of 1200℃ (located at the center of the furnace body).

4. The equipment includes a quartz crucible, which can be used to hold evaporative materials or deposition substrates.


Product Parameters


Product NameCompact Movable Crucible RTP Tube Furnace Max 1200℃ for Annealing
Product ModelOTF-1200X-S-DVD

Main

Parameters

1. Power Supply: 208 - 240 VAC, 50/60Hz; Max Power: 1.5KW.

2. Max Operating Temperature: 1200℃.

3. Continuous Operating Temperature: 1100℃.

4. Heating Rate: ≤ 20℃/min.

5. Heating Zone:

   - Heating zone length: 200mm (single temperature zone).

   - Constant temperature zone length: 60mm (temperature deviation ±1°C when the furnace is heated to 1000°C).

6. Temperature Control System:

   - 30-segment heating and cooling curve.

   - PID temperature adjustment with over-temperature and thermocouple disconnection protection.

   - Temperature control accuracy: ±1ºC.

7. Furnace Tube: One quartz tube (50mm O.D. x 44mm I.D. x 1000mm L); includes four aluminum oxide plugs.

8. Vacuum Flange: A pair of stainless steel sealing flanges, with an inlet of Φ6.35 ferrule connector and an outlet of KF25 interface (for connection to a vacuum pump).

9. Vacuum Level: 10⁻² torr (mechanical pump).


Furnace Structure

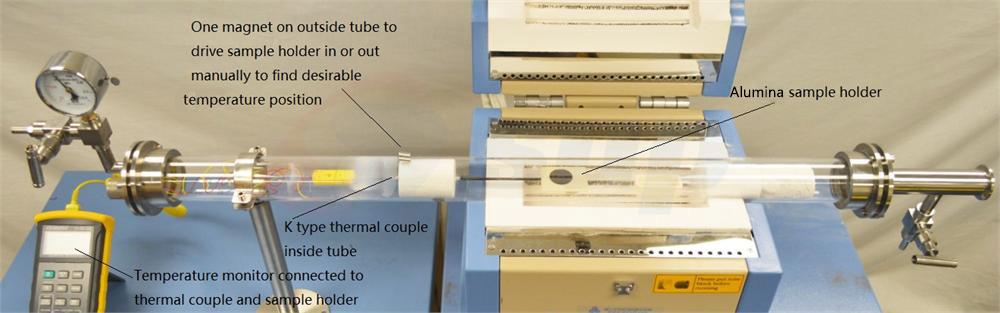

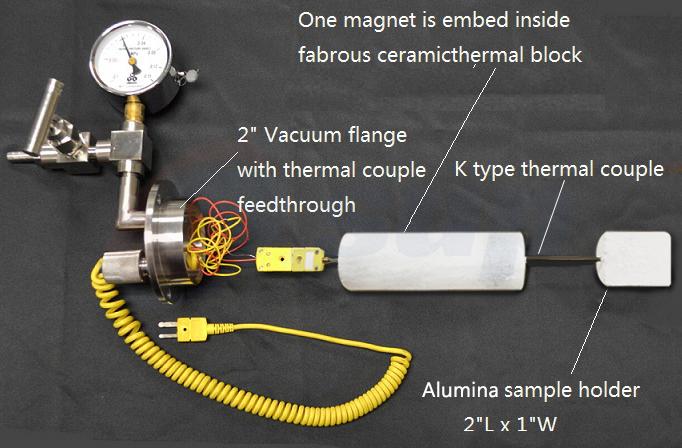

1. One high thermal conductivity Alumina flat sample holder (2" Lx1"W)  is fixed on K type sample, and the thermal couple with the sample holder can be moved inside a quartz tube driven by a magnet manually to find a desirable temperature position inside the tube for evaporation or deposition.

2. One NIST-certified precision temperature monitor is connected to the thermal couple and sample holder via feedthrough on the vacuum flange.

3. One magnet is embedded inside the thermal block, and another magnet is placed outside the tube.  move the outside magnet can move the sample holder with the thermal couple inside the tube in or out

30 segment programmable temperature controller is installed in a furnace to set up Max. working temperature up to 1200oC at the center of the furnace

4. One small quartz crucible is included, which can be used to contain evaporation material or please wafer on top for deposition based on your application.


Furnace Structure.jpg




Furnace Power

110VAC or 208 - 240 VAC, 50/60Hz   (Please confirm voltage when placing order )

1.5 KW


Max. Temperature

1200°C (<1 hour)
Continuous Temperature

1100°C ( continuous)

Max. Heating Rate

<= 20 °C/min

Heating Zone

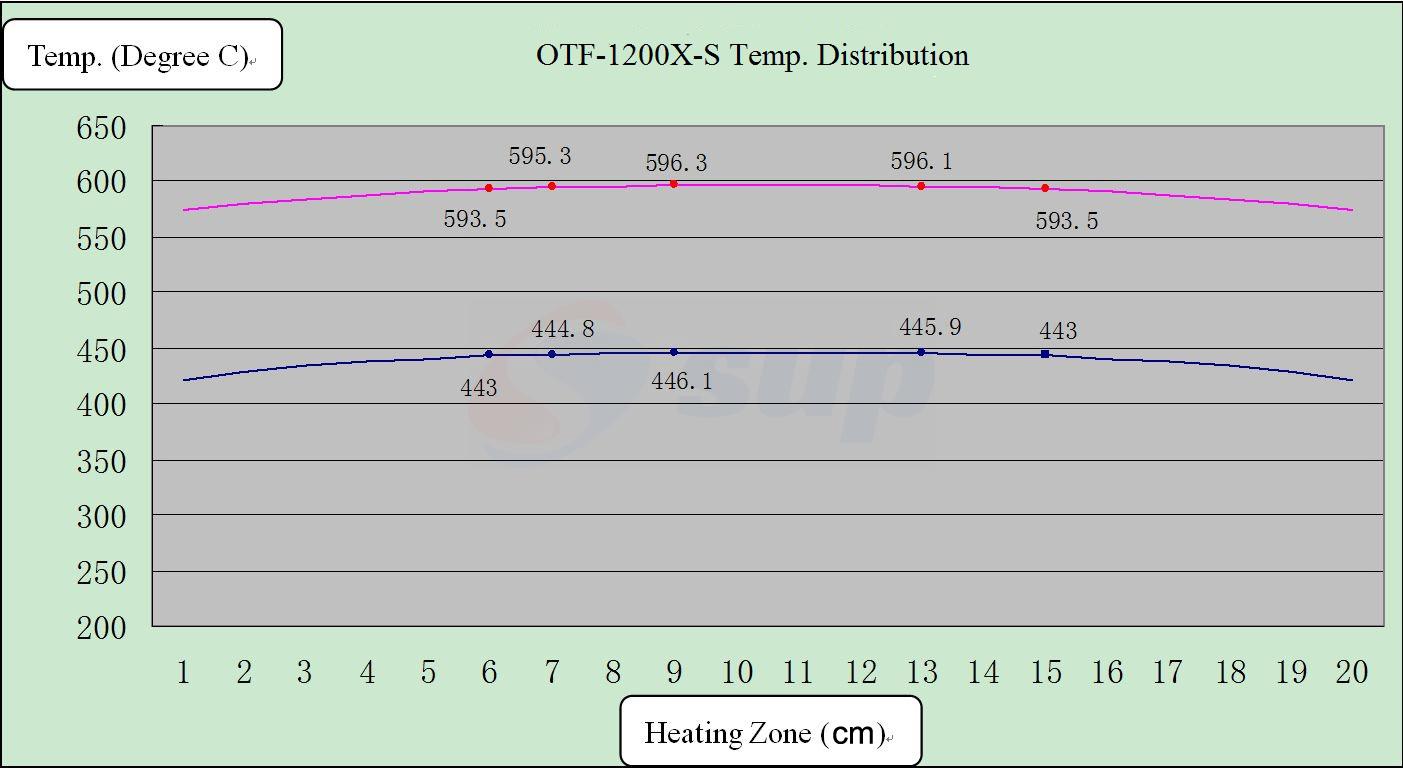

1. Heating Zone Length:  8" (200mm), single zone. The following picture shows the temp. distribution across the heating zone, please click to enlarge.

2. Constant Temp. Zone:    2.3" (60mm)  (+/-1°C) @ 1000 °C

3. You shall measure the furnace temperature profile for your own application before making film growth.


Temp. Distribution_OTF-1200X-S.jpeg

Temperature Accuracy

+/- 1°C

Heating

Elements

Fe-Cr-Al Alloy doped by Mo

Warranty

One year limited manufacturer warranty with lifetime support (Consumable parts such as processing tubes, o-rings and halogen lamps are not covered by the warranty, please order replacements at related products below).

Compliance

CE Certified

NRTL certification(UL61010) or CSA certification is available at extra cost.

Product

specifications

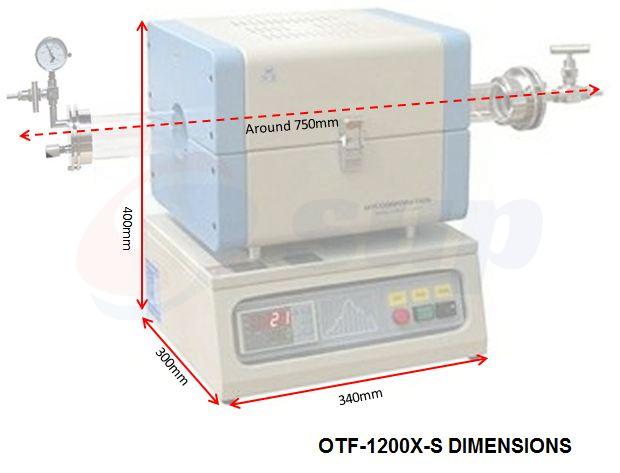

With lid close: 1055mm (L) × 300mm(W) × 400mm(H)

With lid open: 1055mm (L) × 300mm(W) × 560mm(H)

OTF-1200X-S-DVD Movable Crucible <a href=https://www.supsemi.com/en/RTP-Tube-Furnace.html target='_blank'>RTP Tube Furnace</a> DIMENSIONS.jpeg

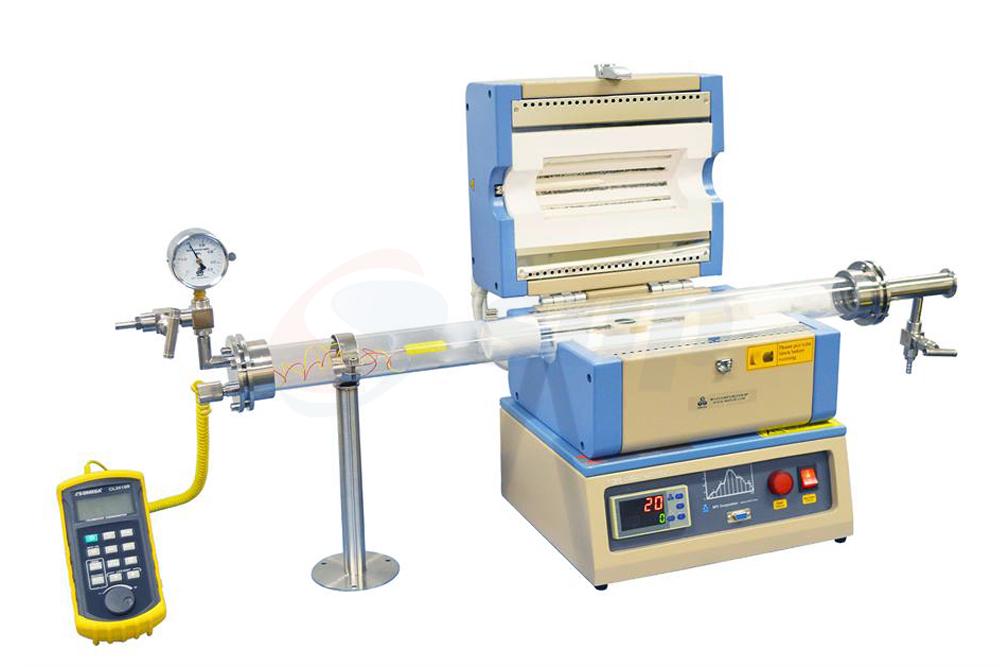

OTF-1200X-S-DVD Movable Crucible RTP Tube Furnace.jpg
