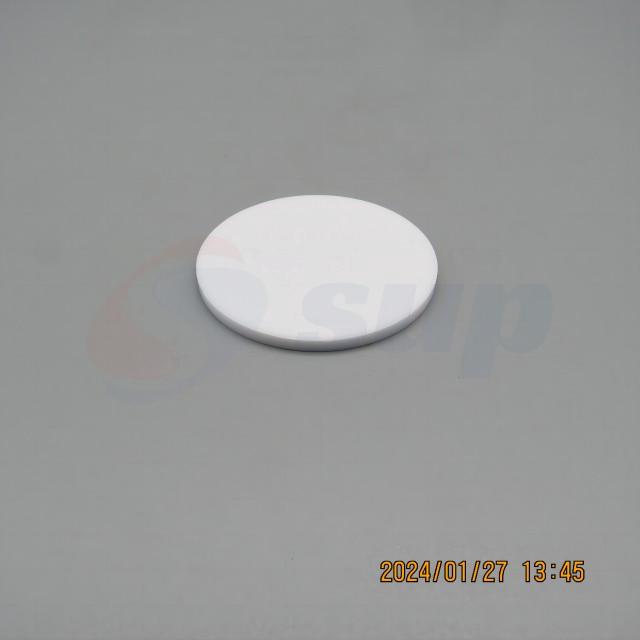

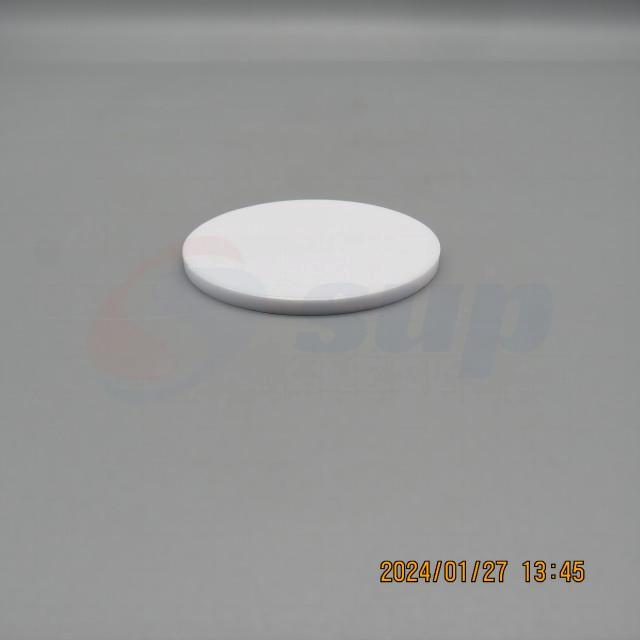

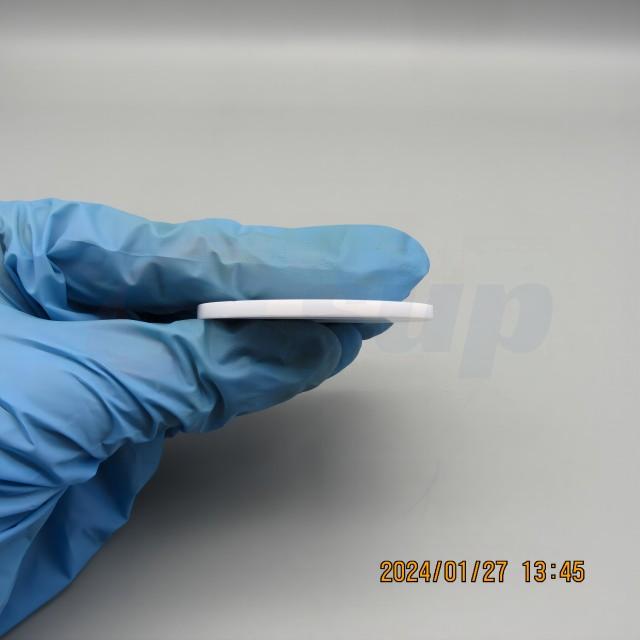

High Purity Alumina Al2O3 Ceramic Target Ceramic Target Customized

Al2O3 Target Product Details

Alumina Ceramic Target (Al2O3) is an important inorganic material widely used in the semiconductor, optoelectronic, and materials science fields. As an excellent insulator, alumina performs well in high-temperature and high-frequency environments, making it suitable for the manufacture of various high-performance devices.

Note: Purity, shape, thickness, and dimensions can all be customized,Please feel free to contact us for more details.

Alumina Ceramic Target Physical and Chemical Properties

- Appearance: Alumina ceramic targets typically appear as white or light yellow solids with high purity and stability.

- Density: The density of alumina is approximately 3.9 g/cm³, indicating its high mechanical strength.

- Melting Point: Its melting point is around 2050 °C, suitable for use under high-temperature conditions.

- Insulation: Alumina has excellent electrical insulation properties, making it suitable for various electrical applications.

Applications of Alumina Ceramic Targets

The main applications of alumina ceramic targets include:

1. Insulating Materials:

   - Alumina is widely used to manufacture insulating layers and dielectric materials, suitable for high-temperature and high-frequency environments.

2. Thin Film Deposition:

   - In techniques such as magnetron sputtering and chemical vapor deposition (CVD), alumina targets are used to produce high-quality films applicable in integrated circuits and microelectronic devices.

3. Optical Applications:

   - The excellent optical properties of alumina make it suitable for manufacturing optical coatings and thin film optical components, enhancing the performance of optical devices.

4. Substrate Materials:

   - Alumina ceramic targets can be used as substrates for certain semiconductor devices, providing excellent mechanical strength and thermal stability.

Summary

Alumina ceramic targets, with their superior physical and chemical properties, demonstrate significant application potential in the semiconductor and optoelectronic fields, supporting the research and manufacture of high-performance electronic devices.
