Hydrogen Atmosphere Box Furnace for Material Synthesis Under Dry Hydrogen up to 1650C

Product Name: Hydrogen Atmosphere Box Furnace for Material Synthesis Under Dry Hydrogen up to 1650C

Product Model: KSL-1700X-H2

Product Description: ​​KSL1700X-H2 is designed for material synthesis under dry hydrogen up to 1650ºC. The furnace consists of high-quality alumina fiber bricks and Mo alloy heating elements with a heating chamber of 8" x 8" x 8", as well as a vacuum-sealed steel case with a water cooling jacket and an automatic H2 burning system. It is an ideal tool for preparing new materials that require a reducing atmosphere, such as phosphorous and Ti alloy.

EMAIL

Product Description

KSL1700X-H2 is designed for material synthesis under dry hydrogen up to 1650ºC. The furnace consists of high-quality alumina fiber bricks and Mo alloy heating elements with a heating chamber of 8" x 8" x 8", as well as a vacuum-sealed steel case with a water cooling jacket and an automatic H2 burning system. It is an ideal tool for preparing new materials that require a reducing atmosphere, such as phosphorous and Ti alloy.

Product Parameters

 Furnace Structure

• Double-layer stainless steel structure for maximum vacuum and safety

• Water cooling front door and air cooling shell

• Built-in pressure gauge, vacuum valves, and two gas float meters

• Built-in H2 burning control system - if the controller detects no flame in the burner,the gas delivery valve will be shut down automatically

Hydrogen Atmosphere Box Furnace Structure.jpg

Inside Chamber Size

• Heated chamber: 200 x 200 x 200 mm (8 x 8 x 8 inch), 8 Liter

• Energy-saving 1800 grade fibrous alumina insulation

• High purity Al₂O₃ coating

• Warning: One Al₂O₃ fibrous door block is included. You must place the door block in the front of the chamber to block heat radiation, otherwise, may damage the sealing ring at high temperature and cause hydrogen gas leaking.

Chamber details.jpg

Power

• AC 208 - 240V single phase (50/60 Hz)

• 7.5 KW

• 30 Amp (50 Amp air breaker is required)

Temperature

• Continuous 1600°C

• Max. 1650°C  (< 60min)

• Accuracy: +/- 1°C

• Heating Rate: 5°C/min

• Thermocouple: two B type (control thermocouple and secondary alarm thermocouple)

Temperature Controller

• The main Temperature Controller is used for controlling the 30-segment heating program and provides the 1-level temperature alarm protection.

• Secondary Temperature Controller reads the temperature from the secondary B type thermocouple, monitors the temperature during all processes, and provides the 2-level temperature alarm protection.

• The Eurotherm temperature controller is optional to provide +/- 0.1oC accuracy

Temperature Controller.png   Temperature Controller.jpeg

Pressure Control

• The pressure sensor and pressure controller are installed. It reads the chamber pressure and controls the inlet and outlet gas valves respectively according to the pressure limit settings

• The pressure control can be used to perform the following functions:

- Purging

- Pressure control

- High and Low-pressure protection

• The pressure controllable range: -0.06 to 0.03 Mpa.

Heating Elements

• 6 sets of Mo coils heating elements are built-in and replaceable

• The heating element of the Mo coil is consumable parts which should be ordered separately if extra is required.

• The heating element can be replaced by MsSi2 to run the furnace under oxygen and air up to 1700°C.

• Warning: Mo heating element cannot be used under air or oxygen at the temperature > 300°C

Gas Flow and

Vacuum Valve

• Two large flow meters (N2: 0~3.5L/min, H2: 0~3.5L/min) are installed on the front panel of the furnace.

• One for purging Inert gas prior to introducing H2 gas

• One for controlling H2 gas flow

• One heavy-duty vacuum pump (CE certified) built-in bottom furnace to enhance the purging chamber.

Hydrogen Detector System

• Two Gas Detector is Integrated into the system. One is installed on the furnace to monitor potential gas leakage. The other one is portable which can be used to check other ports

• Working Temperature Range: -20ºC to +60ºC

• Detectable range: 1 - 1000 ppm

• Two-level Alarm Point:

  -First level alarm point: once it reaches 50 ppm, the alarm is trigged

  -Second level alarm point: once it reaches 100 ppm, it will shut off the inlet valve to the H2 automatically.

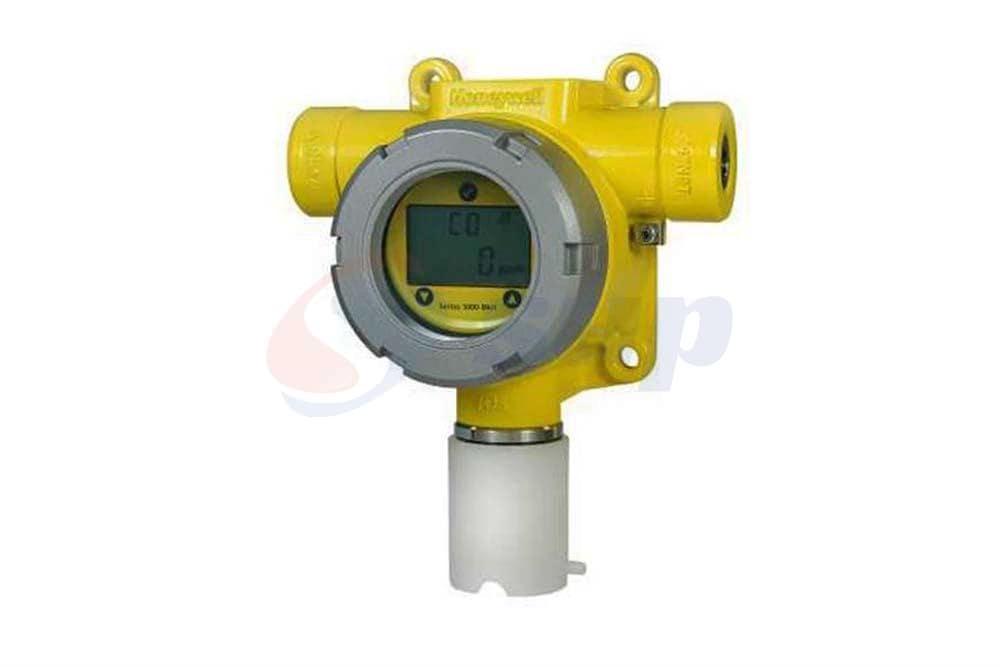

Hydrogen Gas Detector.jpg

Dimension

1200mm L × 850mm W × 1520mm H (without burner) and 2020mm H (with burner)

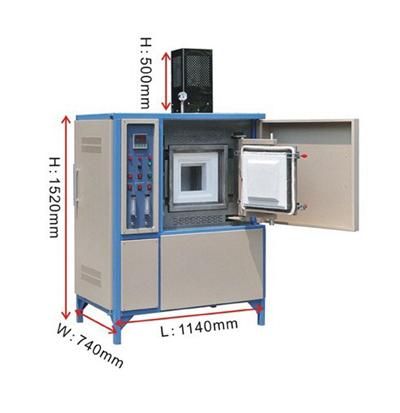

Hydrogen Atmosphere Box Furnace size.jpg

Net Weight

300kg

Warranty

One-year limited manufacturer's warranty (Consumable parts such as processing tubes, O-rings and heating elements are not covered by the warranty, please order replacements at related products below).

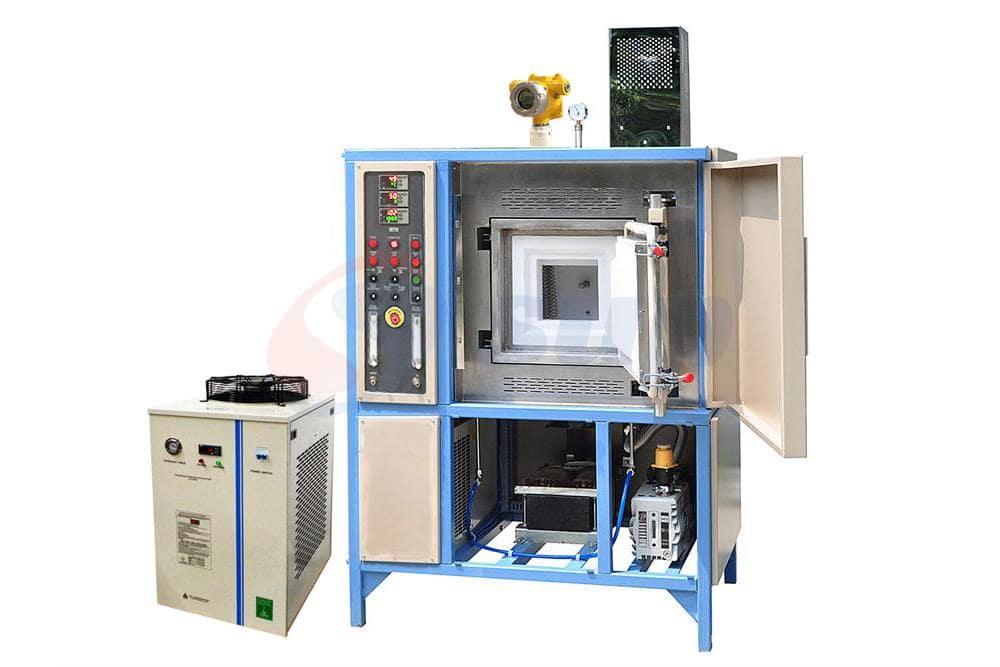

Hydrogen Atmosphere Box Furnace.jpg

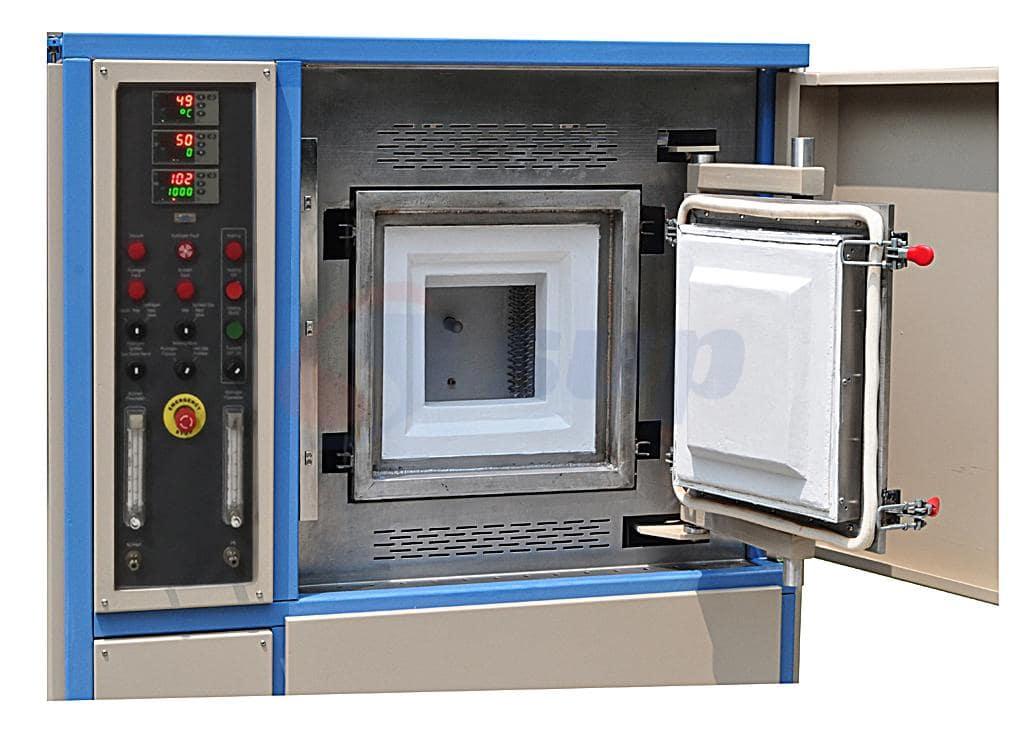

Hydrogen Atmosphere Box Furnace opened.jpg
