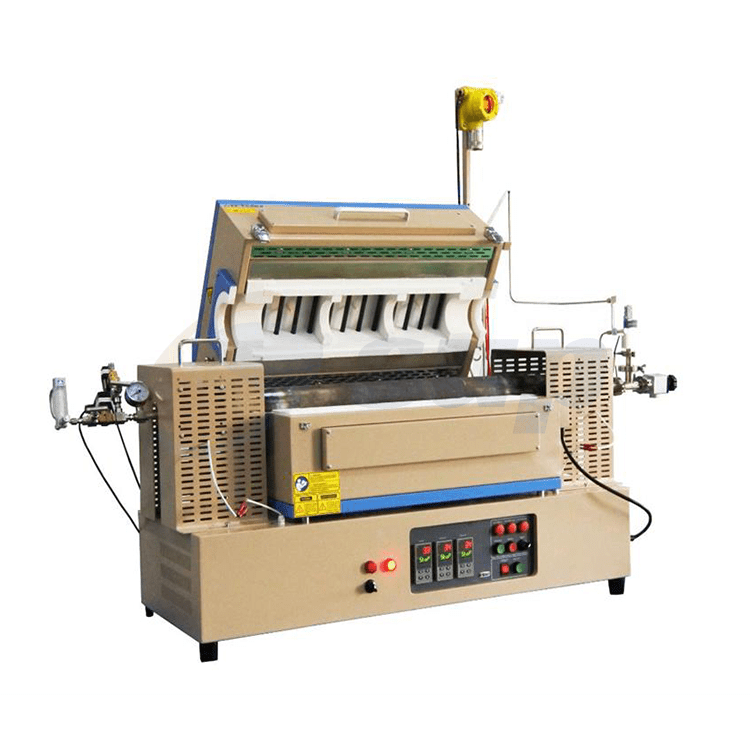

Three Zone Hydrogen Gas Tube Furnace with Hydrogen Detector for Processing Material up to 1200°C Safely

Product Name: Three Zone Hydrogen Gas Tube Furnace with Hydrogen Detector for Processing Material up to 1200°C Safely

Product Model: OTF-1200X-III-H2

Product Description: OTF-1200X-III-H2 is a safe hydrogen tube furnace. The processing tube is made of high-quality Ni-based superalloy which never cracks and is broken at flowing Hydrogen gas. Two hydrogen detectors are included which will shut down the Hydrogen gas generator and gas inlet valve immediately once detecting hydrogen gas leaking. The tube furnace is designed for processing material under hydrogen gas up to 1200°C safely. The precision temperature controller is 30 segment programmable.

Product Description

OTF-1200X-III-H2 is a safe hydrogen tube furnace. The processing tube is made of high-quality Ni-based superalloy which never cracks and is broken at flowing Hydrogen gas. Two hydrogen detectors are included which will shut down the Hydrogen gas generator and gas inlet valve immediately once detecting hydrogen gas leaking. The tube furnace is designed for processing material under hydrogen gas up to 1200°C safely. The precision temperature controller is 30 segment programmable.

Product Parameters

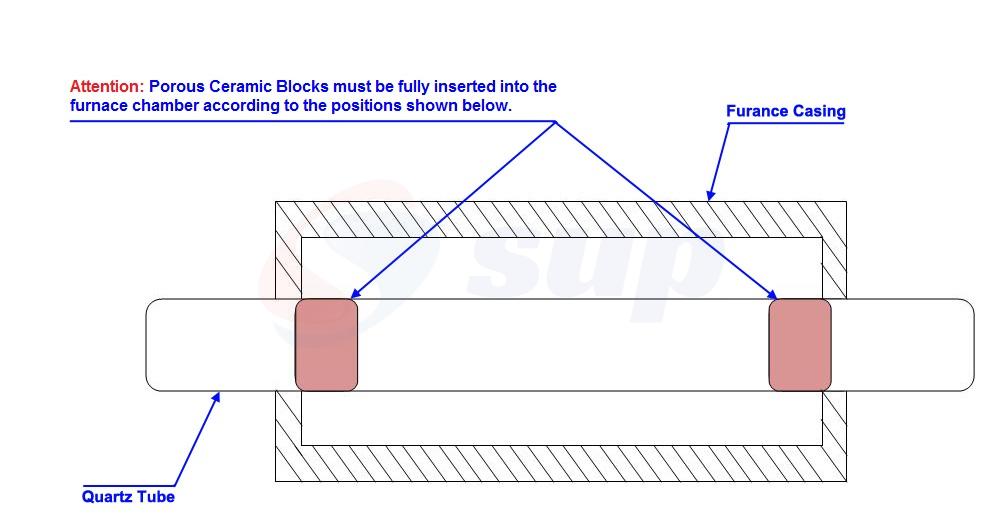

Furnace Structure	• Double layer steel casing with air cooling to keep furnace surface temperature lower than 80°C • High purity fibrous alumina insulation for Max. energy saving • Hydrogen detector and solenoid valve are included for safe operation • 4 alumina tube blocks (alumina coated on the surface) are included, to be put inside of the tube before operating the equipment in order to avoid heat radiation.
Power	11 KW Max. (50A breaker required)
Voltage	AC 208-240 Single Phase, 50/60 Hz
Working Temperature	• Furnace continuous temperature: 1400°C (Alumina tube must be used under this temperature) • Tube Max. working temperature: 1250°C (< 0.5 hours, superalloy tube can't be used over this temperature) • Tube continuous temperature: 1200°C (Quartz liner inside of the superalloy tube can't be used over this temperature)
Max. Heating Rate	≦10°C/min (≦ 5°C/min is recommended)
Processing Tube	• Material: Nickel-based super-alloy seamless tube ( Cr20NI25Al15） • Tube Size: OD 80mm x ID 72mm x Length 1200mm • Temperature ≦ 1250°C, the tube can withstand pressure ≦ 0.1 Mpa • Temperature ≦ 1200°C, the tube can withstand pressure ≦ 0.3 Mpa • Temperature ≦ 1100°C, the tube can withstand pressure ≦ 1 Mpa • Temperature ≦ 1000°C, the tube can withstand pressure ≦ 1.5 Mpa • Temperature ≦ 900°C, the tube can withstand pressure ≦ 3 Mpa • Temperature ≦ 800°C, the tube can withstand pressure ≦ 5 Mpa
Heating Zone length	• Three-zone total length: 600mm • Zone 1: 180mm, Zone 2: 180mm, Zone 3: 180mm • Constant temperature zone: 260mm ± 3°C (set the same temperature for all 3 zones)
Temperature Controller	• PID automatic control with 30 segments programmable • Automatic over-temperature and thermal broken protection • RS485 Communications Port
Flanges and Gas Inlet	• A set of SS304 flanges are included, KF-25 gas outlet port • Vacuum level: 10-2 torr using a mechanical pump, 10-5 torr using a molecular pump (pump is not included) • Max withstand pressure for the standard flange included is 0.3 Mpa. Customization (up to 5 Mpa) is available at an extra cost.
Hydrogen Detector System	• Two Gas Detector is Integrated into the system. One is installed on the furnace to monitor potential gas leakage. The other one is portable which can be used to check other ports • Working Temperature Range: -20ºC to +60ºC • Detectable range: 1 - 1000 ppm • Two-level Alarm Point: -First level alarm point: once it reaches 50 ppm, the alarm is trigged -Second level alarm point: once it reaches 100 ppm, it will shut off the inlet valve to the H2 automatically.

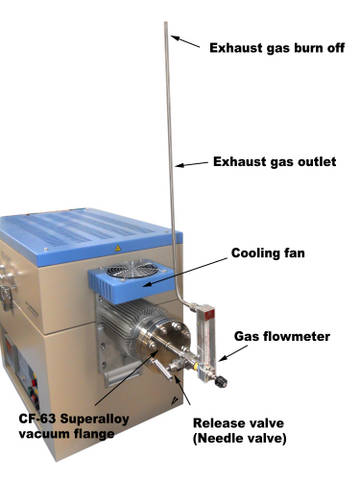

Gas-outlet Flow-meter	• One 1000 ml/min floating meter is installed on the gas-outlet end for adjusting gas flow rate • 1/4" Dia stainless steel tube is installed for burning hydrogen gas during gas flowing • One long lighter is included in the standard package for igniting hydrogen gas manually • One 6" long neck flexes safe lighter is included for lighting hydrogen gas.
Heating Element	Fe-Cr-Al Alloy doped by Mo
Dimension	1750mm L x 700mm W x 750 mm H
Net Weight	110kg
Warranty	One-year limited manufacturer's warranty (Consumable parts such as processing tubes, O-rings and heating elements are not covered by the warranty, please order replacements at related products below).
