Mini Spin Coater with Vacuum Suction Cup for Glove Box Lab

Mini Spin Coater with Vacuum Suction Cup for Glove Box Lab

Product Name: Compact Spin Coating Machine with Vacuum Chuck

Product Model: VTC-50H

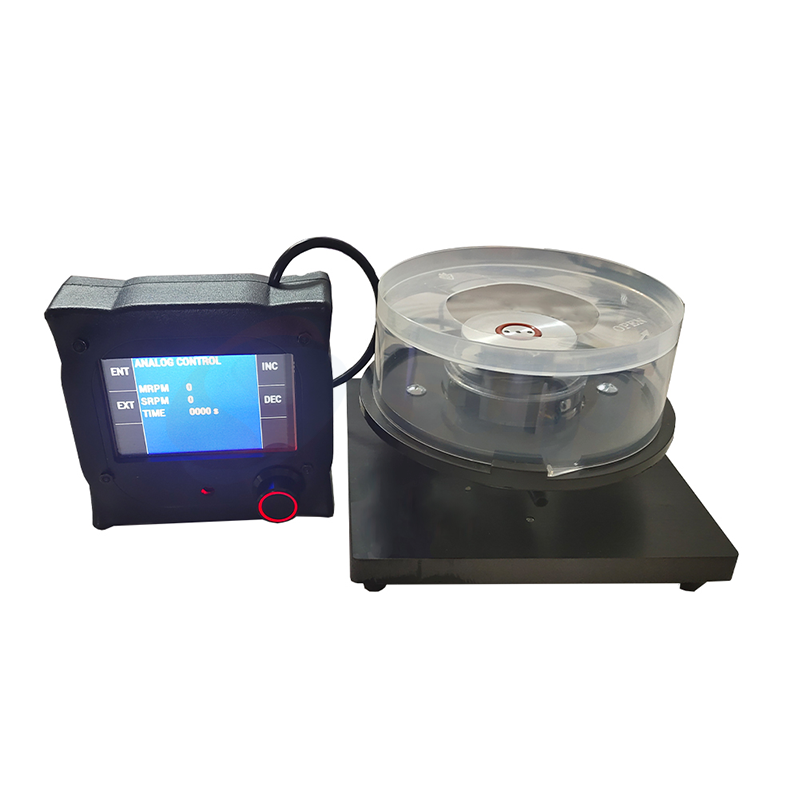

Product Description: The VTC-50H is a compact spin coater equipped with a vacuum suction cup, specially designed for use in a glove box. The rotating plate speed ranges from 500 to 8000 rpm (adjustable). The device includes a heating cover and a temperature controller, allowing for quick heating up to 80°C. This small spin coater can be used in an Ar environment within the glove box through the pass-through chamber.

Product Description

The VTC-50H is a compact spin coater equipped with a vacuum suction cup, specially designed for use in a glove box. The rotating plate speed ranges from 500 to 8000 rpm (adjustable). The device includes a heating cover and a temperature controller, allowing for quick heating up to 80°C. This small spin coater can be used in an Ar environment within the glove box through the pass-through chamber.

Product Parameters

Product Name	Mini Spin Coater with Vacuum Suction Cup for Glove Box Lab
Product Model	VTC-50H

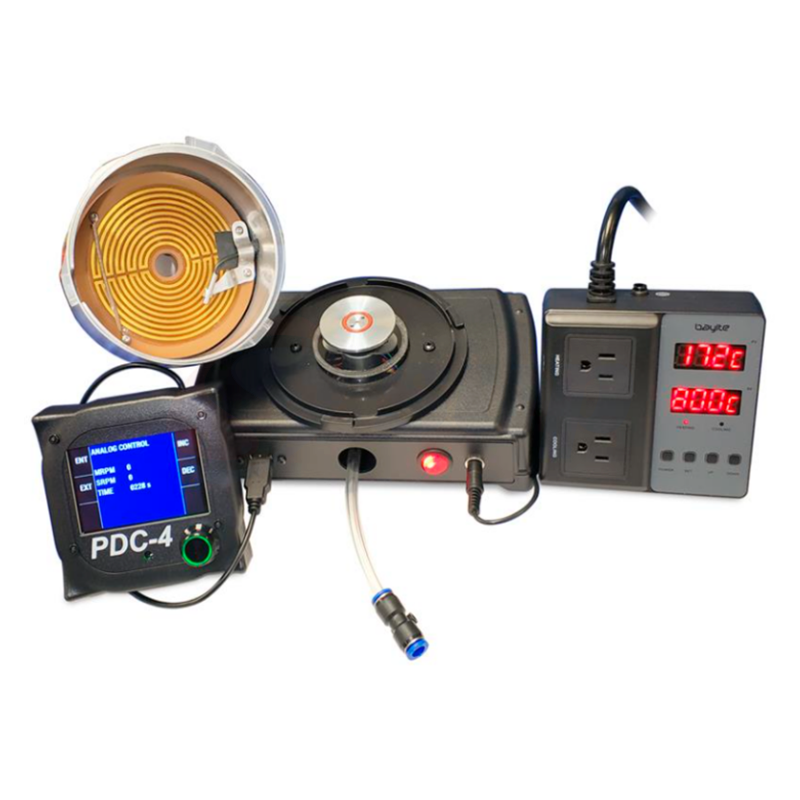

Main Parameters	1. Power Supply: Spin Coater: 12VDC, 15W; 2. Heating Cover: 24VDC, 60W 3. Maximum Substrate Size: Φ100mm round or 75×75mm square 4. Minimum Substrate Size: Φ20mm round or 15×15mm square 5. Maximum Substrate Thickness: 2mm 6. Shell Material: Polypropylene 7. Rotational Speed: 500-8000 rpm (adjustable via digital speed controller) 8. Speed Accuracy: ±5 rpm 9. Rotation Time: Unlimited 10. Rotation Direction: Clockwise 11. Vacuum Suction Cup Size: Φ50mm 12. Substrate Fixation Method: Vacuum adhesion or double-sided tape 13. Vacuum Requirement: -55 kPa, ≥ 50 lpm 14. Connecting Tube: Outer diameter of 8mm, quick-connect fitting 15. Dripper: Includes a 20ml dripper Temperature Control The device is equipped with a heating cover and a temperature controller. - Maximum Temperature: 80°C - Accuracy: ±1 °C - Maximum Heating Speed: Reaches 80°C in 5 minutes
Product specifications	Product Dimensions: 230 (L) × 200 (W) × 150 mm (H) Net Weight: 2.3 kg
