SrTiO3 Crystal Substrates Customized

Element Symbol:SrTiO3
CAS:12060-08-1
Model:Sup-SrTiO3
Shape:Wafer, Disc or ingot
Thickness:[N/A]
Dimension:[N/A]
(Note: Purity, shape, thickness, and dimensions can all be customized)

EMAIL

Strontium titanate (SrTiO3) is an important inorganic compound known for its cubic crystal structure, widely used in materials science and electronics. It is an excellent dielectric material with high permittivity and low loss characteristics.

Note: Purity, shape, thickness, and dimensions can all be customized,Please feel free to contact us for more details.

Main Properties:

- Crystal Structure: SrTiO₃ exhibits a cubic crystal system, providing high crystal quality and stability.

- Electrical Properties: This material demonstrates outstanding electrical insulation and high dielectric constant, making it suitable for microwave and high-frequency applications.

- Thermal Stability: SrTiO₃ maintains stable physical and chemical properties in high-temperature environments.

Applications:

1. Substrate Material: Strontium titanate is commonly used as a substrate for high-temperature superconductors and other oxide semiconductors, facilitating the growth of high-quality thin films.

2. Dielectric Material: In capacitors and other electronic components, SrTiO₃ serves as a dielectric layer.

3. Optoelectronic Devices: Due to its favorable optical properties, strontium titanate is also widely used in lasers and photodetectors.

Main performance parameters

Crystal Structure

Cubic

Growth method

Verneuil's method ; floating zone method

Lattice constant

a=3.905Å

Melting poing(℃)

2060

Density

5.122(g/cm3)

Mohs hardness

6-6.5

Thermal expansivity

9.4×10-6(/℃)

Dielectric constant

ε=5.20

Chemical stability

Insoluble in water

Loss tangent

~5×10-4(300k) ~3×10-4(77k)

Color

Transparent (sometimes slightly yellow according to the annealing state)

Dimension

5x5mm、10×5mm、10×10mm、20×20mm,Dia25.4mm,Dia30mm,

Special orientation and size of the substrate can be customized according to the customer needs

Thickness

0.5mm、1.0mm

Dimension tolerance

<±0.1mm

Thickness tolerance

<±0.05mm

Polishing

One side or two sides

Orientation

<100>、<110>、<111>

Orientation tolerance

±0.5°

Falt rientation tolerance

2°(Special requirements can be within 1 °)

Packing

Class 100 clean bag, Class 1000 clean room

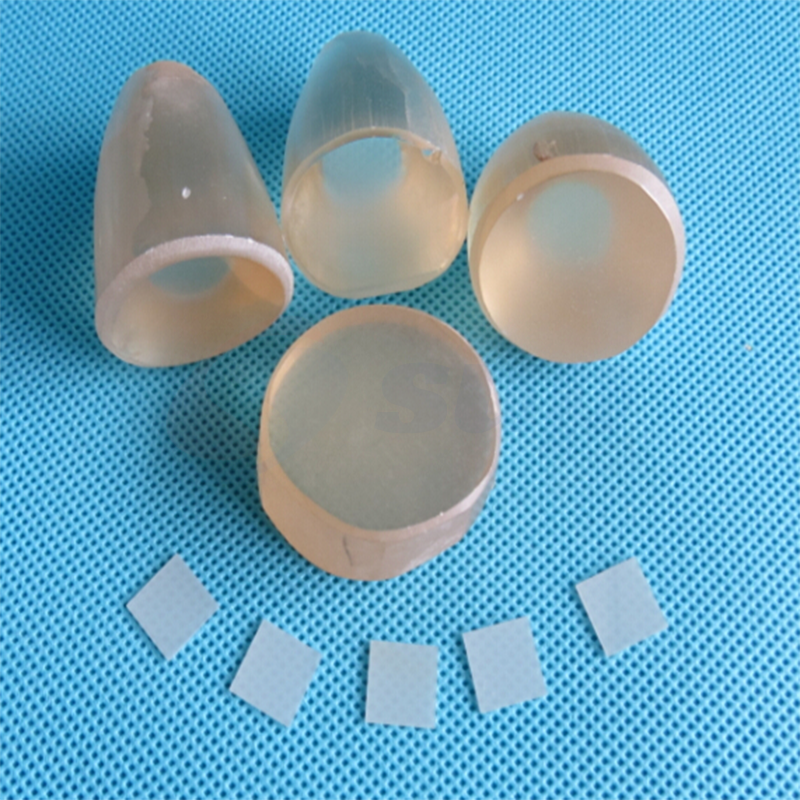

SrTiO3 Crystal.png
