Product Model: Unipol-1503

Product Description: Elevate your material processing precision! This precision multi-functional grinding and polishing machine is suitable for various materials, including metals, ceramics, and glass. High-precision processing ensures superior surface finish and dimensional accuracy, making it ideal for research and production.

EMAIL

Product Description

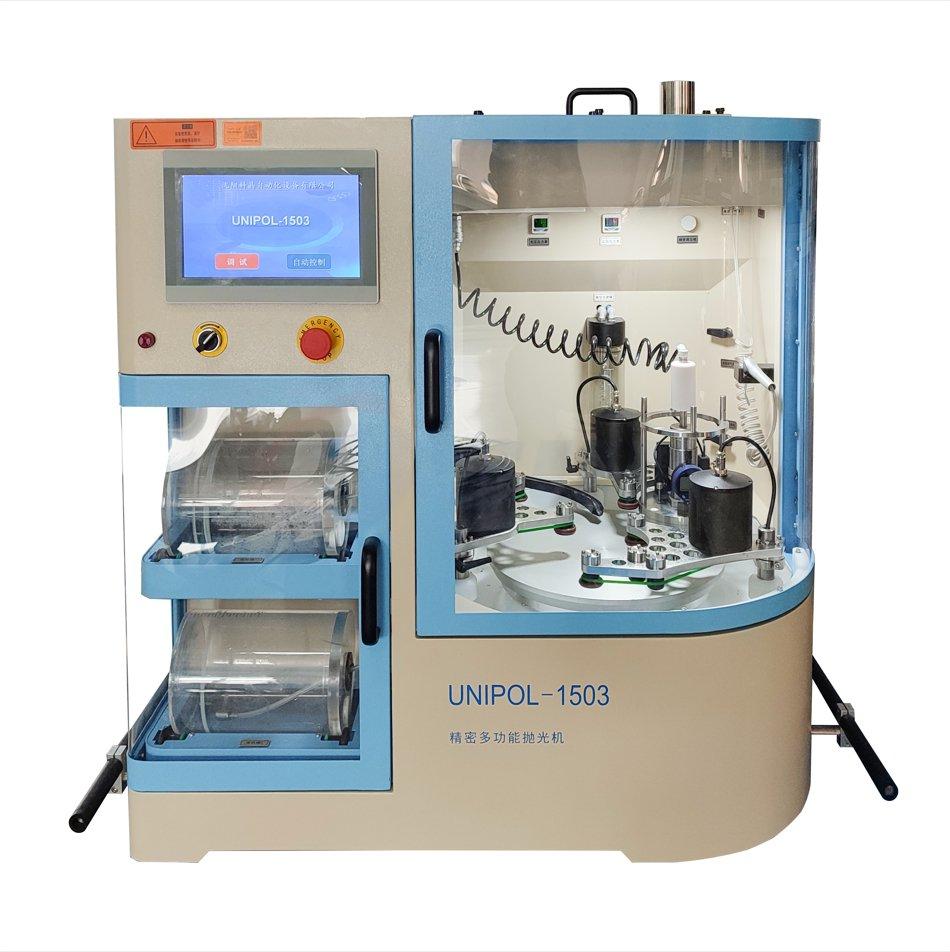

The UNIPOL-1503 precision multi-functional grinding and polishing machine features three processing stations and is a tabletop machine designed for polishing large samples. It is suitable for grinding and polishing a variety of materials, including crystals, ceramics, metals, glass, rock samples, mineral samples, PCB plates, and infrared optical materials (such as zinc selenide, zinc sulfide, silicon, germanium), as well as refractories, composites, and more. This machine is one of the ideal polishing devices for scientific research and production experiments.

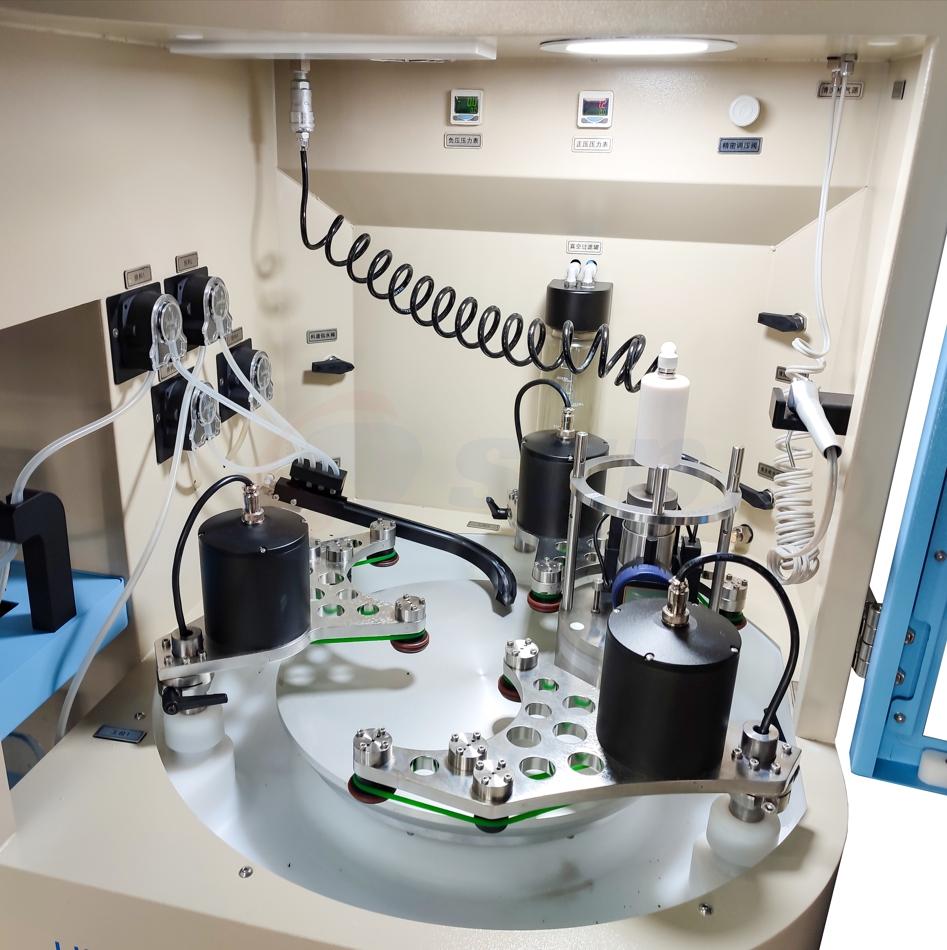

The machine is equipped with a Ø381mm grinding and polishing plate, three processing stations, and a Bluetooth precision polishing control device (hereinafter referred to as the Bluetooth manipulator), along with two sets of dripping systems. It is particularly suitable for thinning and polishing wafer samples (up to Ø100mm). The Bluetooth feature allows for the detection of material thickness, automatically stopping when the desired grinding value is reached. The control system can freely set the polishing process parameters, enabling automated grinding and polishing.

Product Parameters

Product Name

Precision Multi-functional Grinding & Polishing Lapping Machine: Surface Finishing

Model

UNIPOL-1503

Installation conditions

1. Temperature and Humidity:

   - Humidity: 10-85% RH (at 25℃, no condensation)

   - Temperature: 5-45℃

2. Environmental Conditions:

   - No strong vibration sources or corrosive gases in the vicinity of the equipment.

3. Water Supply:

   - The equipment is equipped with an upper and lower water inlet, which must be connected to the local tap water and drainage system.

4. Electrical Supply:

   - Single phase: AC220V, 50Hz, national standard three-pin 10A socket, with a good ground protection line required.

5. Air Supply:

   - Vacuum Negative Pressure (Vacuum Pump): Air extraction flow rate not less than 70L/min (standard configuration)

   - Compressed Air (Air Compressor): Working pressure: ≤ 0.2MPa (standard configuration)

6. Auxiliary Equipment (to be purchased separately):

   - Recommended:

     1. HEATER-3040 or 250 Heating Platform

     2. SKCH-1 Precision Thickness Gauge

     3. SKCS-1 Drying Machine

Main Parameters

ParametersItem Name

1. Power Supply Interface: Three-pin power plug: AC220V 50Hz 10A

2. Grinding Plate Drive Motor (Spindle): AC servo motor

3. Grinding Plate Speed: 10-120rpm

4. Grinding Plate Rotation Direction: Unidirectional: Counterclockwise

5. Grinding Plate Specifications: One cast iron flower plate, one flat aluminum plate; outer diameter: φ381mm

6. Sample Holder Specifications: Standard configuration: two flat sample holders; outer diameter: Φ110mm

7. Repair Ring Specifications: Standard configuration: two repair rings; outer diameter: Φ143mm

8. Maximum Sample Size: 4 inches

9. Swing Grinding Workstations: 3

10. Swing Arm Drive Motor: Permanent magnet DC motor

11. Swing Arm Oscillation Speed: Speed control in 3-10 levels; MAX oscillation frequency: ≈10 times/min

12. Drive Motor for Swing Arm Drive Wheel: Stepper motor

13. Active Wheel Speed: Adjustable from 1-300rpm

14. Bluetooth Precision Polishing Control Instrument (Mechanical Arm): Standard configuration: 1 workstation, with vacuum adsorption function; sample holder diameter: Φ103mm (the other two workstations can be optional)

15. Mixing Stations: 2

16. Mixing Speed: 5-30rpm

17. Mixing Cylinder Volume: 1.4L x 2

18. Suspension Liquid Storage Bottle Volume: 500mL x 2

19. Dripping Stations (Peristaltic Pump): Total of 4: 2 mixing dripping stations; 2 suspension dripping stations

20. Dripping Pump Speed: 0.1-20rpm

21. Exhaust System: High-speed filtered exhaust system

22. Grinding Operation Stop Mode: Time mode / Grinding amount mode

23. Control Display Method: Integrated control: 10-inch touchscreen operation display

24. Auxiliary Functions:

   - Sample cleaning nozzle, vacuum filtration tank, waste gas discharge function, gas protection interface

   - Bluetooth function: Real-time data feedback available after Bluetooth connection

25. Product Specifications:

   - Size: 1000mm × 800mm × 1050mm / Door open: 1650mm × 800mm × 1050mm
