What are Thin Film Materials?

Definition and Difference Between Membranes and Films

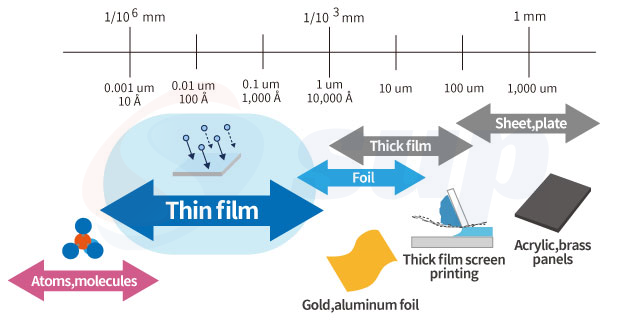

When the one-dimensional linear scale of a solid or liquid is much smaller than the other two dimensions, we refer to such a solid or liquid as a membrane. Generally, membranes can be divided into two categories: those with a thickness greater than 1 micrometer are called thick films, while those with a thickness less than 1 micrometer are referred to as thin films.

1. Definition and Characteristics of Thin Film Materials

Definition of Thin Film Materials: In practical applications, thin film materials are layers of metals or organic substances with thicknesses ranging from a single atom to several millimeters. The main applications of thin film technology include electronic semiconductor devices and optical coatings. Scientifically, thin films are defined as two-dimensional materials formed by the deposition and growth of atoms, molecules, or ions on the surface of a substrate.

Characteristics of Thin Film Materials:

- Electrical Characteristics: Increased resistivity, significant space charge and electric field effects, and reduced temperature coefficient of resistance.

- Thermal Characteristics: Decreased thermal conductivity and enhanced thermoelectric effects.

- Magnetic Characteristics: Exhibiting giant magnetoresistance effects.

- Optical Characteristics: Changes in reflectivity and significant optical interference effects.

- Mechanical Characteristics: Changes in physical properties such as wear resistance, tensile strength, and hardness.

- Acoustic Characteristics: Thin film acoustic metamaterials perform well in low-frequency noise reduction.

- Chemical Characteristics: Excellent chemical stability, capable of resisting various chemical substances.

- Processing Characteristics: Can be processed through various methods, such as chemical and physical vapor deposition, to meet the needs of different fields.

2. Classification of Thin Film Materials

Classification by Material:

- Inorganic Thin Film Materials: This includes metal films (e.g., aluminum, copper, titanium), oxide films (e.g., zinc oxide, aluminum oxide), and carbide films.

- Organic Thin Film Materials: Typically made from polymer materials, such as polyvinyl chloride (PVC), polyethylene, polypropylene, and polystyrene.

Classification by Function:

1. Electrical Films: These include conductive materials and dielectric films used in semiconductor devices and integrated circuits, as well as superconducting films. They have significant applications in the electronics and electrical fields, such as conductive layers, insulating layers, and superconducting materials.

2. Optical Films: These films possess optical properties such as reflection, interference, and polarization, and are mainly used in optical components, display devices, and solar energy applications.

3. Mechanical Performance Films: Films with high hardness, high elastic modulus, and high strength, primarily applied in mechanical, electronic, and aerospace fields.

4. Magnetic Performance Films: Films exhibiting magnetic permeability, magnetization strength, and magnetic loss, primarily used in magnetic recording, magnetic storage, and sensors.

5. Thermal Performance Films: Films with thermal conductivity, thermal expansion coefficient, and thermal stability, mainly used in heat dissipation, insulation, and thermal protection applications.

6. Acoustic Performance Films: By designing and optimizing material structures, thin film acoustic metamaterials can achieve reflection and absorption of sound waves within specific frequency ranges, thus providing sound insulation effects.

7. Chemical Performance Films: Films that exhibit corrosion resistance, oxidation resistance, and waterproof properties, primarily applied in chemical, pharmaceutical, and food industries.

8. Biomedical Performance Films: Films with biocompatibility, bioactivity, and controlled drug release properties, widely used in the medical field.

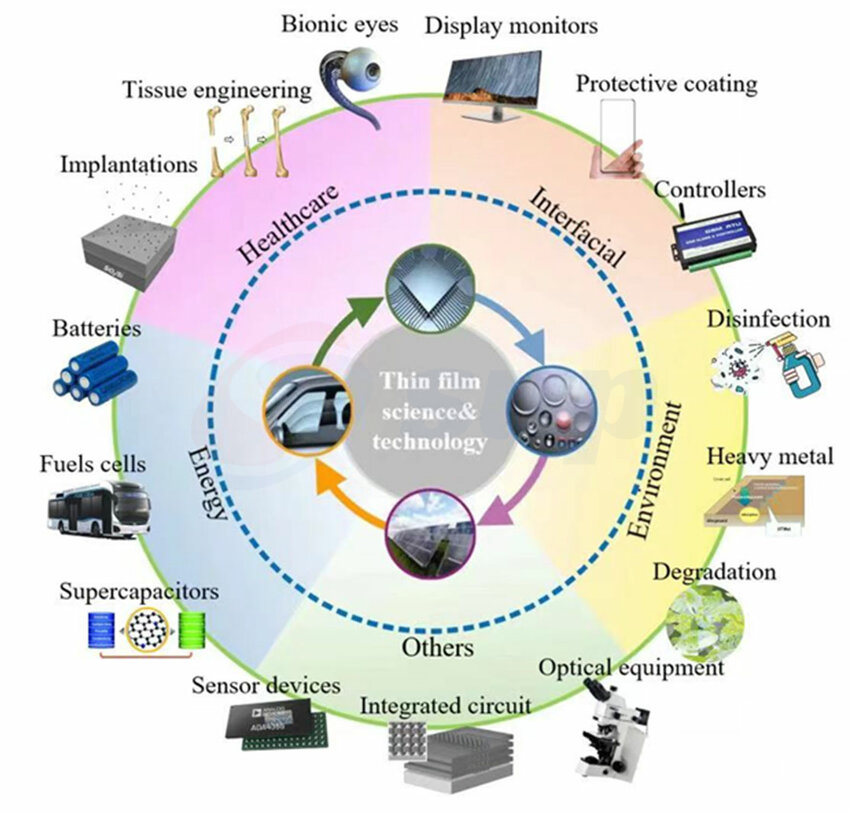

3. Applications of Thin Film Materials

1. Electronics:

   Thin film materials play a crucial role in electronic products, with widespread use in liquid crystal displays, solar panels, and semiconductor devices. Metal films, oxide films, semiconductor films, and dielectric films are also important in electronic components for manufacturing electrodes, wires, connectors, isolation layers, and dielectric layers.

2. Optical Field:

   Thin film materials are used to manufacture optical lenses, filters, and reflective coatings, which are widely applied in optical instruments, photography equipment, and eyewear. Optical thin film technology also has extensive applications in laser technology, optical instruments, and optoelectronic displays.

3. Energy Sector:

   Thin film solar panels can convert sunlight into electrical energy, used in solar power generation and photovoltaic chargers. Nanofilm technology enhances energy efficiency in solar cells and energy storage devices.

4. Aerospace:

   High-performance thin film materials, such as high-temperature superconducting films and lightweight, high-strength composite films, play an important role in improving the performance and safety of aerospace vehicles.

5. Medical Field:

   Thin film materials can be used in medical devices, drug packaging, and medical catheters, offering properties such as slip resistance, corrosion resistance, and transparency. Biocompatible films improve the performance of implants and reduce the occurrence of complications in medical devices.

6. Environmental Protection:

   Thin film materials can be used to create water treatment membranes and eco-friendly film bags for environmental remediation and waste management.

7. Soundproofing:

   In acoustic components, thin films are used to reduce electromagnetic noise interference, enhancing the operational stability of devices. They can also serve as soundproofing materials in walls, ceilings, and automotive interiors, improving sound insulation performance.

8. Other Fields:

   Thin film materials are also applied in rail transportation and power transmission networks. In everyday life, they are widely used in the packaging of food, pharmaceuticals, and consumer goods, providing moisture resistance, freshness preservation, and pollution prevention. In construction and decoration, they can serve as decorative films for walls, furniture, and flooring, offering a variety of colors and textures.

4. Common Preparation Techniques for Thin Film Materials

Chemical Vapor Deposition (CVD)

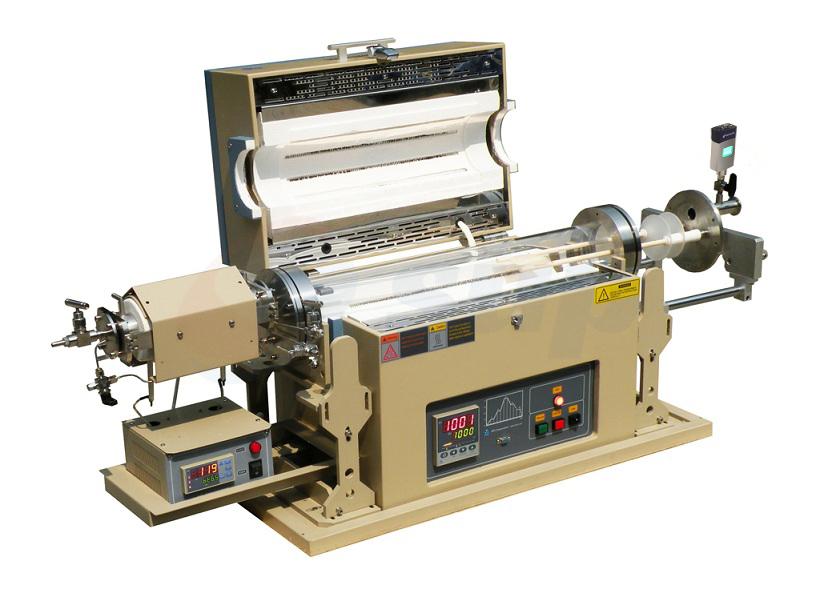

CVD is a method for depositing thin films directly onto a substrate through chemical reactions at high temperatures. This process typically involves three components: the gas-phase reactants, a carrier gas, and the substrate. The gases undergo chemical reactions on the substrate surface, forming the desired thin film. Films produced by CVD have high quality and efficiency, making this method suitable for fabricating high-purity polycrystalline or amorphous films.

Physical Vapor Deposition (PVD)

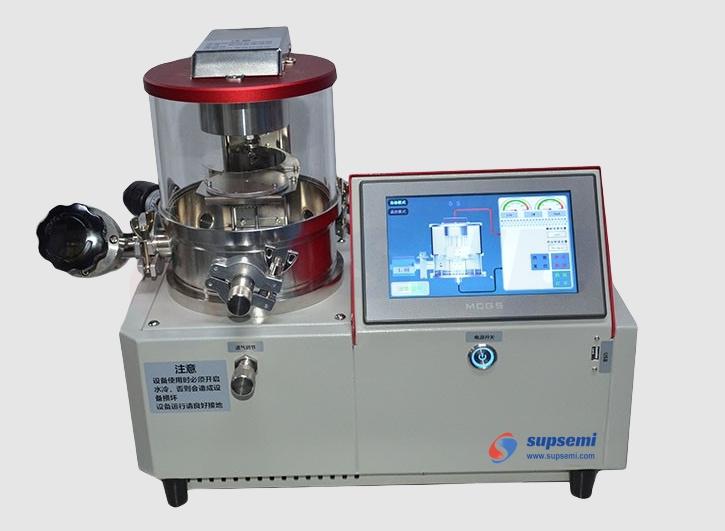

PVD is a technique that utilizes physical processes to deposit materials onto the substrate surface, including two main processes: evaporation and sputtering. Common PVD methods include thermal evaporation, electron beam evaporation, and molecular beam epitaxy (MBE). PVD methods offer high purity and precision but come with higher equipment costs and complex processes.

Solution Method

This method involves dissolving the material to be prepared in a suitable solvent to form a solution. The solution is then uniformly applied to the substrate using techniques such as coating, spin coating, or printing. Subsequently, the solvent is evaporated or decomposed through heating, evaporation, or hydrolysis, resulting in the desired film. The solution method is advantageous due to its simple equipment and easy control of the preparation process, allowing for the fabrication of large-area, uniform films.

Other Methods

Additional techniques include sol-gel processes, electrodeposition, liquid-phase epitaxy (LPE), chemical beam epitaxy, ion beam sputtering deposition, and pulsed laser deposition (PLD). In the preparation of plastic films, methods such as casting, extrusion, blow molding, calendering, and stretching are also employed.

Thin film materials have achieved significant applications across multiple fields, including electronics, optics, and energy. With continuous technological advancements, the performance of thin film materials is consistently improving, injecting new vitality into various industries and offering promising prospects.
