Automatic Wafer Cleaning Machine Semiconductor Blue Film QFN Cleaner Equipment

Product Name:Automatic Wafer Cleaning Machine
Product Model:SUP-CE-600、SUP-CE-800

Product Description
The SUP-CE-600 and SUP-CE-800 automatic cleaning machines are specifically designed for cleaning wafers, QFN, glass, substrates, mobile phone modules, and ceramics after cutting. This series features a dual-fluid cleaning solution and utilizes an editable controller with a full-color touchscreen as the operating system, enhancing device stability and ease of use.

The special internal structure design allows for uniform mixing, producing fine mist droplets or coarse liquid droplet sprays. By increasing air pressure or reducing liquid pressure, finer droplets can be achieved. This results in a greater gas-to-liquid flow rate ratio, generating larger shock waves that effectively clean fine dust within the cutting grooves.

EMAIL

Product Description

The SUP-CE-600 and SUP-CE-800 automatic cleaning machines are specifically designed for cleaning wafers, QFN, glass, substrates, mobile phone modules, and ceramics after cutting. This series features a dual-fluid cleaning solution and utilizes an editable controller with a full-color touchscreen as the operating system, enhancing device stability and ease of use.

The special internal structure design allows for uniform mixing, producing fine mist droplets or coarse liquid droplet sprays. By increasing air pressure or reducing liquid pressure, finer droplets can be achieved. This results in a greater gas-to-liquid flow rate ratio, generating larger shock waves that effectively clean fine dust within the cutting grooves.


Product Features

1. Utilizes a dual-fluid cleaning solution

2. Suitable for blue film, UV film, PET substrates, and double-layer films

3. The rotating shaft employs aerospace sealing technology for safe and reliable performance

4. Features a centrifugal automatic clamping lock mechanism

5. Equipped with a 7-inch full-color touchscreen for clear display of cleaning parameters and error alerts

6. One-touch start initiates the fully automated workflow


Product Parameters

Product ModelSUP-CE-600、SUP-CE-800
Main Parameters
ModelUP-CE-600UP-CE-800
Applicable Sizes3-6 inches3-8 inches

Cleaning Pressure

0.1-0.5 MPa
Working Disk Rotation Speed200-3000 rpm
Cleaning Time3-1000 s

Screen Size

7-inch
Device Dimensions400x800x1250 mm

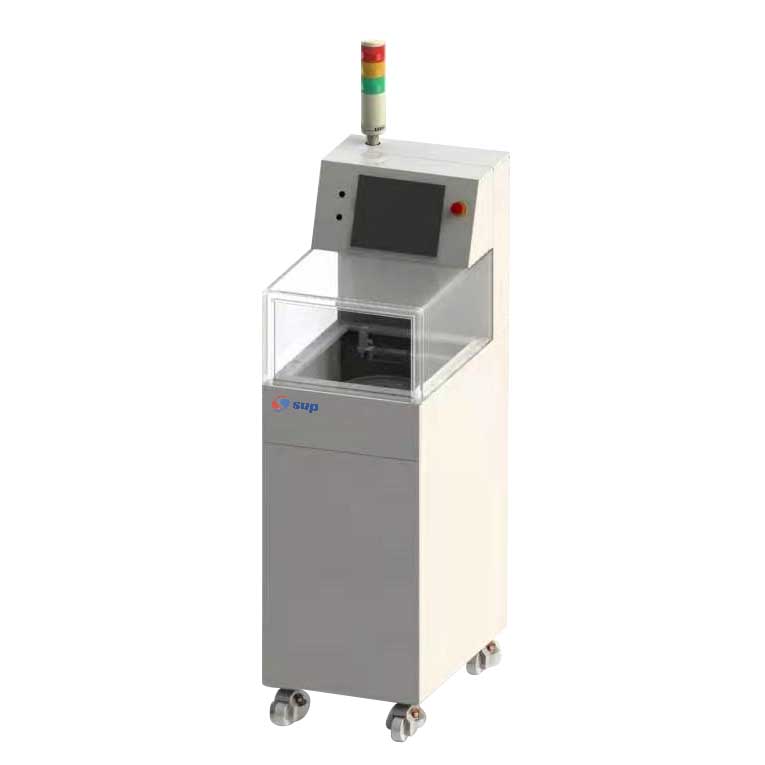

Automatic Wafer Cleaning Machine.jpg
