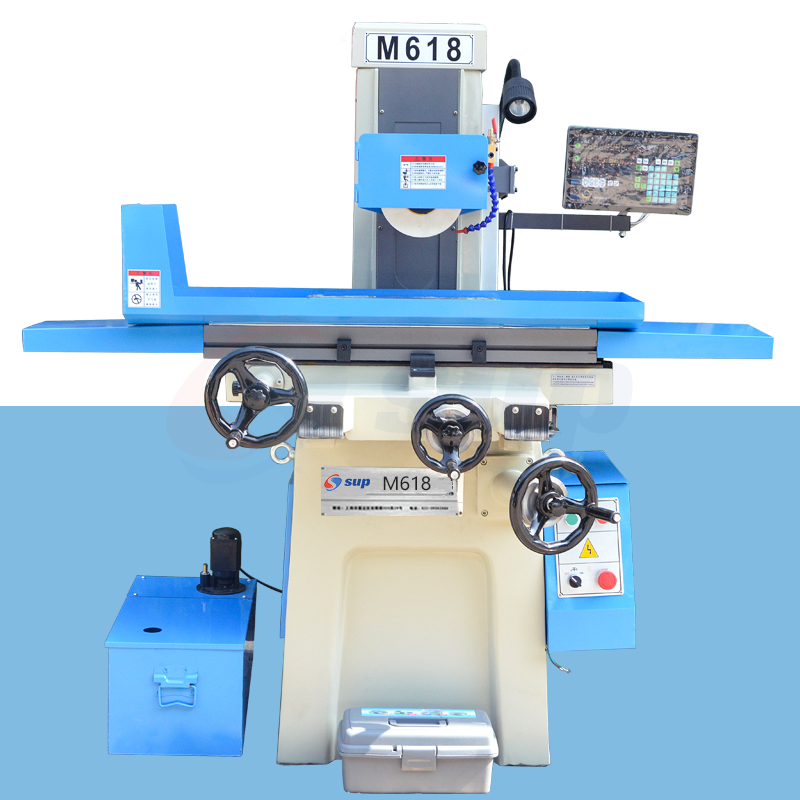

Manual Surface Grinding Machine with Water Cooling and Vacuum Chuck M618

Product Model: SUP-M618

Product Description: The M618 Grinding Machine Equipped with an integrated P4 precision spindle, this machine features low noise, no vibration, and high torque, making it suitable for heavy cutting and various shaping operations.

Product Description

1. Equipped with an integrated P4 precision spindle, this machine features low noise, no vibration, and high torque, making it suitable for heavy cutting and various shaping operations.

2. All castings undergo over a year of natural stress relief to minimize deformation and ensure accuracy.

3. The guideways are precisely hand-scraped for high accuracy, providing smooth wear resistance and easy operation.

4. The circulation automatic lubrication system reduces wear on sliding surfaces, with oil monitoring to track lubrication conditions

Product Parameters

Name	• Manual Surface Grinding Machine with Water Cooling and Vacuum Chuck M618
Model	• SUP-M618
workpiece dimensions (L x W x H)	• 480x160x230 mm
Table longitudinal travel	• 500 mm
Table transverse travel	• 180 mm
Distance from table surface to spindle center	• 380 mm
Table slideway	• ball screw guideway
Table surface dimensions (L x W)	• 450 x 150 mm
Table T-slot (Number of slots x Slot width)	• 1 x 14
Grinding wheel dimensions (Outer diameter x Width x Inner diameter)	• ф180 x13xф31.75
Spindle speed	• 2850 /50Hz
Total motor power	• 1.29kw
Grinding head motor power	• 1.1~1.5kw
Surface roughness	• Ra 0.63
Dimensions (L x W x H)	• 1100 x 1100 x 1700 mm
Weight	• 750kg
