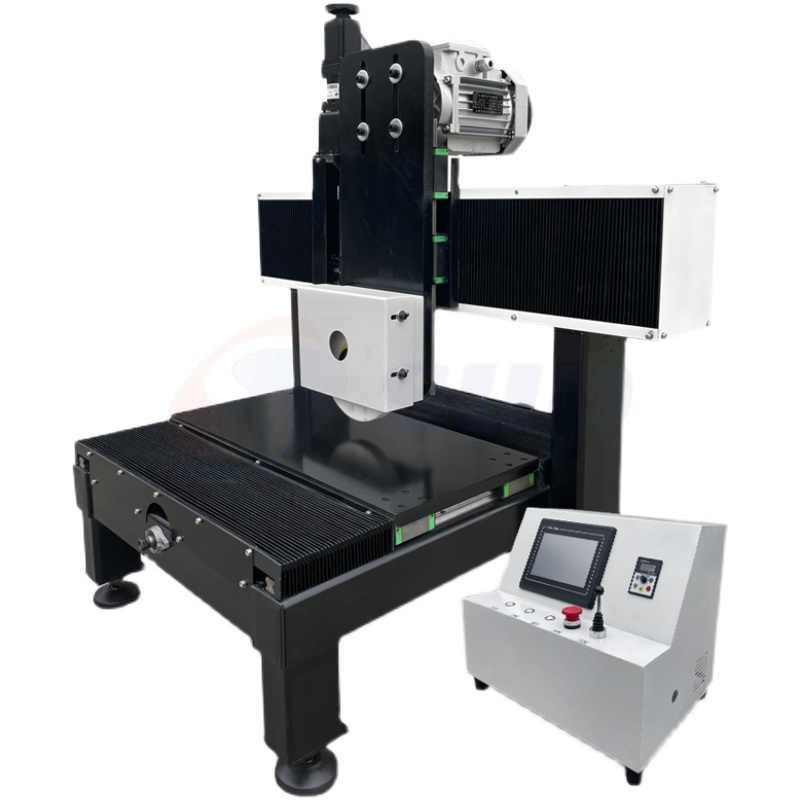

Precision Grinder Lapping Polishing Machine YH580-380

Product Model: YH580-380

Product Description: The YH580-380 is a high-precision grinding and polishing machine suitable for various mechanical parts and components, including angle valves, tungsten steel, alloys, grinding tool steel, and high-speed steel.

Product Description

The YH580-380 is a high-precision grinding and polishing machine suitable for various mechanical parts and components, including angle valves, tungsten steel, alloys, grinding tool steel, and high-speed steel.Ensuring superior surface finishes on various materials.

Product Parameters

Name	• Precision Grinder Lapping Polishing Machine YH580-380
Model	• YH580-380
Operating Voltage	• AC220/380
Rated Power	• 2.2kw
Spindle Speed	• 2850 RPM / 0-3500 RPM
Spindle Power	• 1.5kw
Accuracy Error	• 0.03mm
Processing Size	• Length 600 mm * Width 300 mm * Height 200 mm

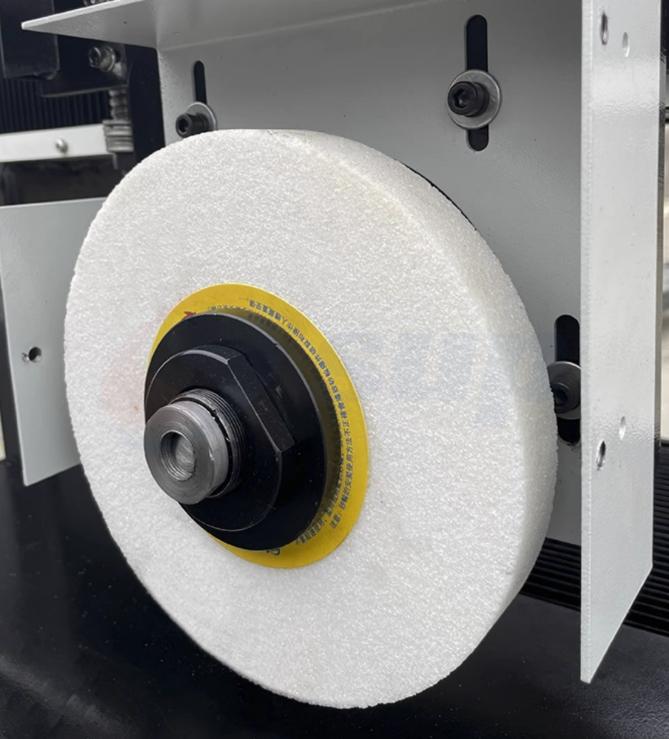

Wheel Size	• Outer 180 mm * Inner 31.75 mm * Thickness 20 mm
Overall Dimensions	• 7209501150 MM
Weight	• 250kg
