Wafer Cassette 6,8,12 inches Boat for Semiconductor Lab

The production of a wafer requires a long and complex process, and if not protected properly, it can cause scratches and gaps on the wafer, which can have a significant impact on the next process and even result in the wafer being scrapped.

The wafer frame box can prevent the wafer from sliding freely, avoid the wrinkles of the tape from colliding with the grains, effectively protect the integrity of the wafer, and facilitate turnover and handling. The precision designed wafer frame box products perfectly meet the stroke process requirements of DISCO/ks cutting machines, with high quality and low price, and are highly favored by the top 500 semiconductor companies.

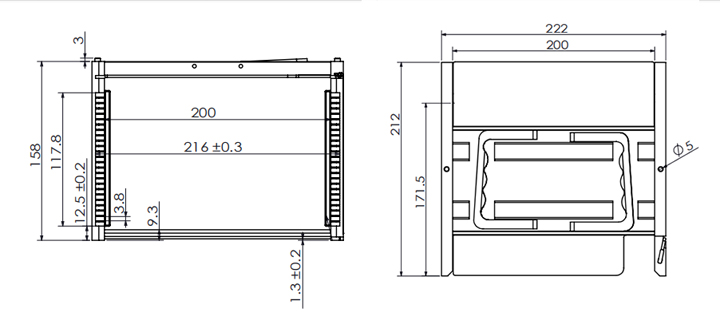

Parameters of 6-inch wafer frame box:

Product Code: DSF20C06-000-R0

Material: 6063-T5 aluminum profile

Size: 222 * 212 * 158 mm

Number of slots: 13/25 slots

Slot spacing: 9.5 mm

Slot width: 3.7 mm

Groove depth: 7.8 mm

Weight: 1.7kg

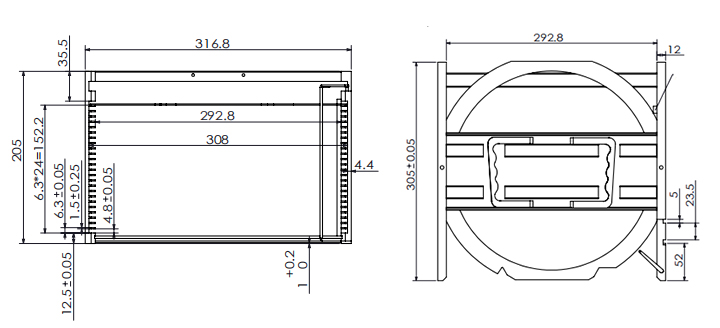

Parameters of 8-inch wafer frame box:

Product Code: DSF20B08-000-R0

Material: 6063-T5 aluminum profile

Size: 316.8 * 305 * 205 mm

Number of slots: 25/13 slots

Slot spacing: 6.3 mm

Slot width: 4.8 mm

Groove depth: 7.6 mm

Weight: 3.4kg

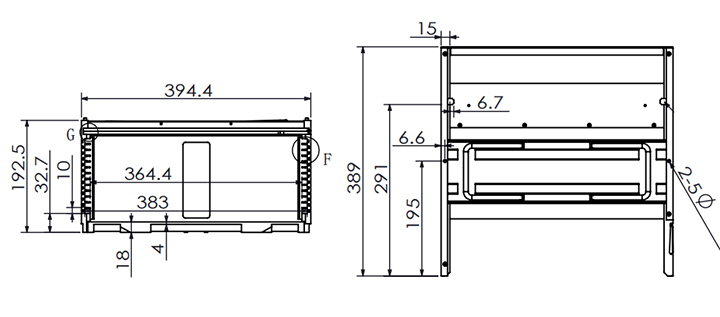

Parameters of 12 inch wafer frame box:

Product Code: DSF20A12-000-R0

Material: 6063-T5 aluminum profile

Size: 394.4 * 389 * 192.5 mm

Number of slots: 13 slots

Slot spacing: 10mm

Slot width: 8mm

Groove depth: 9.3 mm

Weight: 6.4kg

Specializing in the production of wafer frame boxes, with 12 years of production experience and advanced imported production equipment. The wafer frame box products we produce have smooth and burr free surfaces, corrosion resistance, high temperature resistance, and high product accuracy.

Relying on these three advantages, Our  products are exported to domestic and foreign markets. New and old customers are welcome to consult and negotiate cooperation.
