Vacuum Spin Coater for Thin Film Generation Laboratory

Vacuum Spin Coater for Thin Film Generation Laboratory

Product Name: Vacuum Spin Coating Machine for Thin Film Generation Laboratory

Product Model: VTC-200

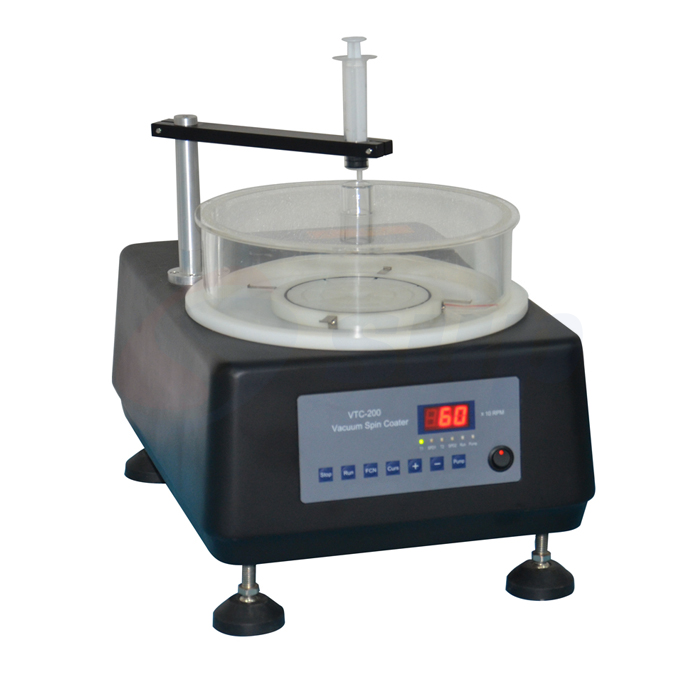

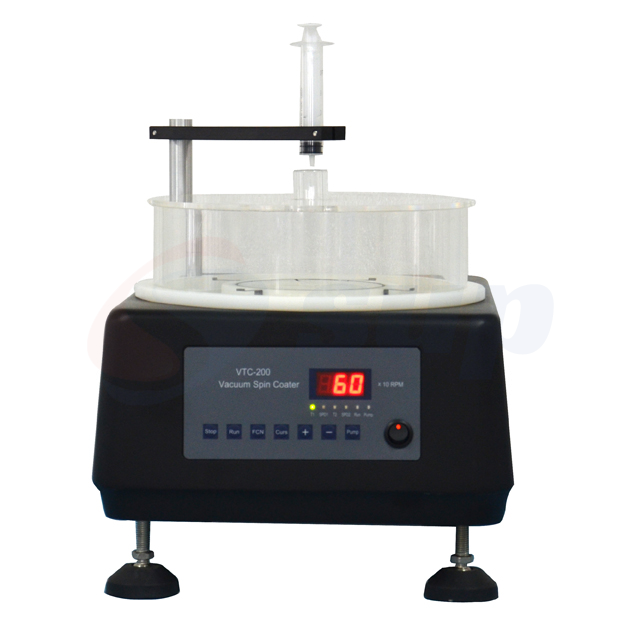

Product Description: The VTC-200 Vacuum Spin Coater features easy operation, convenient cleaning, and a compact design, making it primarily suitable for laboratories in universities and research institutions for the thin film generation process. During operation, the VTC-200 uses a vacuum chuck to secure the sample onto the sample holder, and this device employs a two-stage program to control the speed.

Product Description

The VTC-200 Vacuum Spin Coater features easy operation, convenient cleaning, and a compact design. It is primarily used in laboratories of universities and research institutions for the thin film generation process.

During operation, the VTC-200 uses a vacuum chuck to secure the sample onto the sample holder. This device employs a two-stage program to control the speed. First, the spin coater is started, and the rotation speed is set within a specific range. Within this speed range, a certain dispensing time is designated for applying the material to the sample. After dispensing, the spin coater increases the speed to the maximum limit of the second stage for uniform coating. Before this, the time for uniform coating must be set. Once the uniform coating time is completed, the machine automatically stops, concluding the entire coating process. The VTC-200 utilizes high-speed rotation to evenly coat materials with high viscosity, such as colloids and solutions, onto the surface of the workpiece.

Product Features

1. The speed is controlled by a two-stage program.

2. The sample is secured using a vacuum adsorption method, making operation simple.

3. It features a cast aluminum structure for stable operation and low noise.

Product Parameters

Product Name	Vacuum Spin Coater for Thin Film Generation Laboratory
Product Model	VTC-200
Installation Conditions	1. Temperature and Humidity: 10-85% RH (at 25℃, no condensation); Temperature: 0-45℃. 2. No strong vibration sources or corrosive gases around the equipment. 3. Water: Not required. 4. Power: Single-phase: AC 220V, 50Hz, national standard three-prong socket, 10A; must have good grounding. 5. Gas: Vacuum negative pressure (vacuum pump); air extraction flow rate not less than 70L/M. 6. Workbench: Recommended dimensions of 800X600X700mm with a load capacity of over 100KG (solid cement bench is preferred). 7. Ventilation: No special requirements.
Main Parameters	1. Power Interface: Fuse-protected power socket: AC 220/110V, 50/60Hz; fuse specification: 10A, φ5×20mm. 2. Total Power: ≤150W. 3. Sample Holder (Suction Cup + Stopper): One φ153mm polypropylene vacuum suction cup; one set of 6-inch (φ153mm) sample stoppers; one set of 8-inch (φ203.5mm) sample stoppers. 4. Operating Mode: Counterclockwise rotation with two operating stages. 5. Coating Speed: SPD1 Speed: 500-6000 RPM (effective); SPD2 Speed: 500-6000 RPM (effective). 6. Coating Time: T1 Time: 1--600s (effective); T2 Time: 1--600s (effective). 7. Speed Stability: ±1%. 8. Control Method: PCB microcontroller with button control and digital display. Note: To avoid accidental operation or touching that could damage the equipment, the "Voltage Conversion Switch" at the back of the domestic standard equipment only supports AC 220V, 50Hz power supply. If AC 220V/AC 110V, 50Hz/60Hz conversion is required, please communicate with our sales personnel. The actual power supply for the equipment is subject to the label pasted at the back of the product.

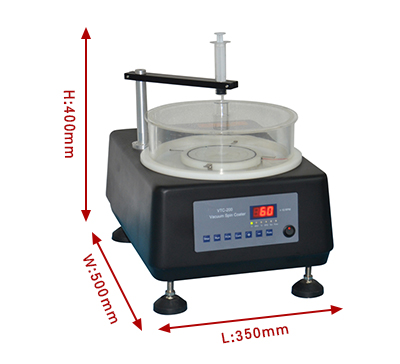

Product Specifications	- Dimensions: 500mm × 350mm × 400mm - Weight: 30kg
