Product Name: Desktop Ultrafast Thermal Pressing Furnace (UFTP) also RTP Annealing Furnace Or Film Coater

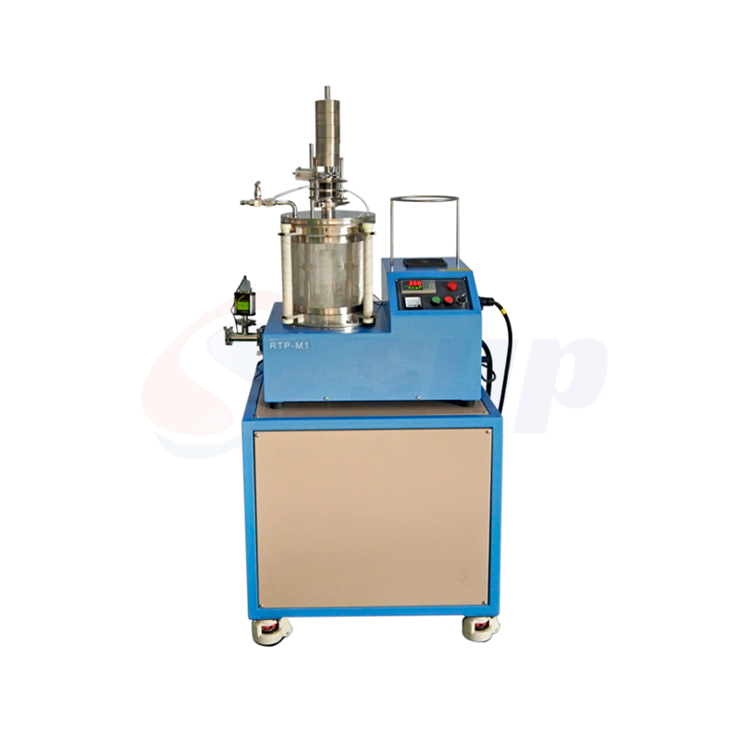

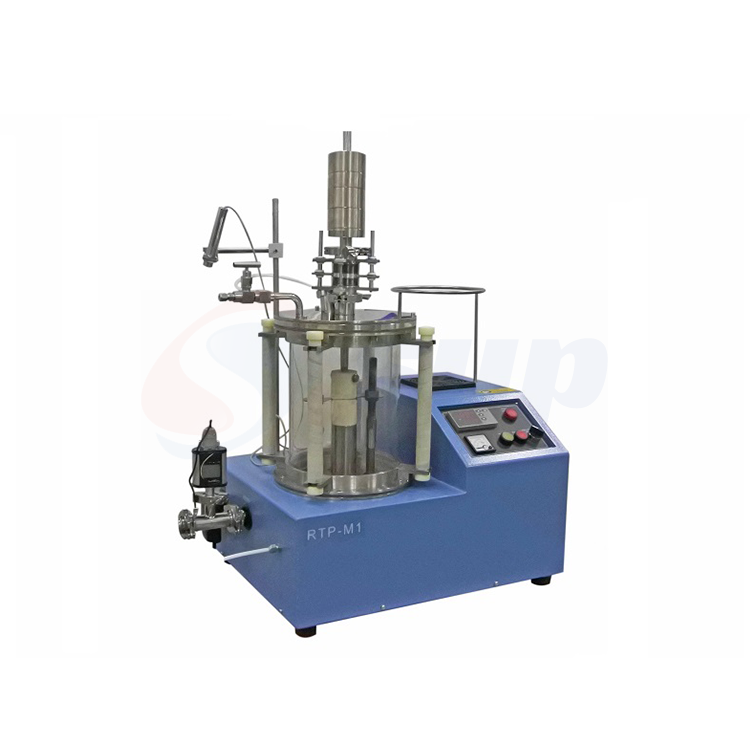

Product Model: RTP-M1

Product Description: RTP-M1 is a desktop Ultrafast thermal Pressing Furnace ( UFTP) with a heating speed of more than 2000C/minute heating rate,Max 2900°C under the selectable deadweight and controlled atmosphere.

It is a cost-effective tool to study material properties,Semicon under fast over-heated conditions.It also can be used as an RTP annealing furnace or modifed into a CSS film coater.

Product Description

RTP-M1 is a desktop Ultrafast thermal Pressing Furnace ( UFTP) ) with a heating speed of more than 200oC/minute heating rate up to 2900°C under the selectable deadweight and controlled atmosphere. It is a cost-effective tool to study material properties under fast over-heated conditions。It also can be used as an RTP annealing furnace or modifed into a CSS film coater.

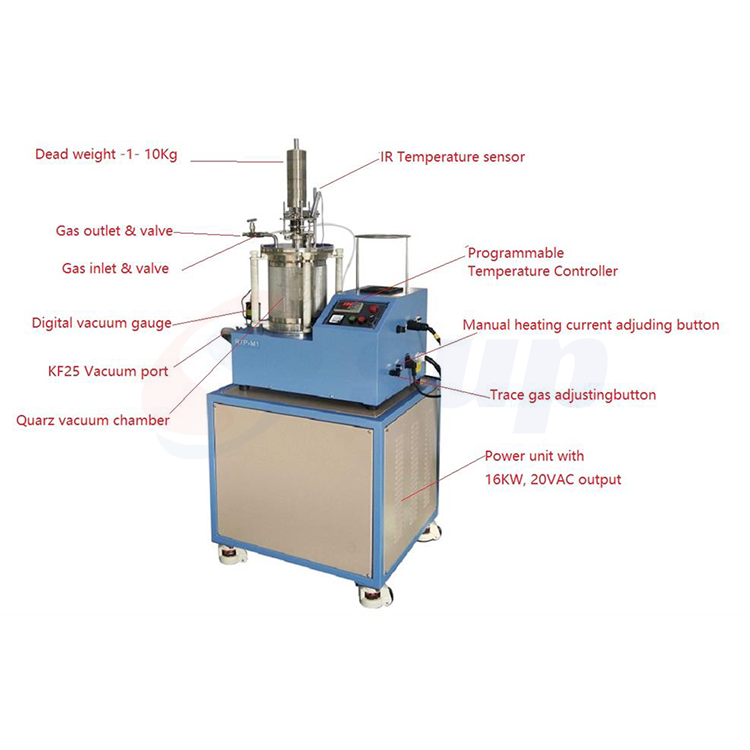

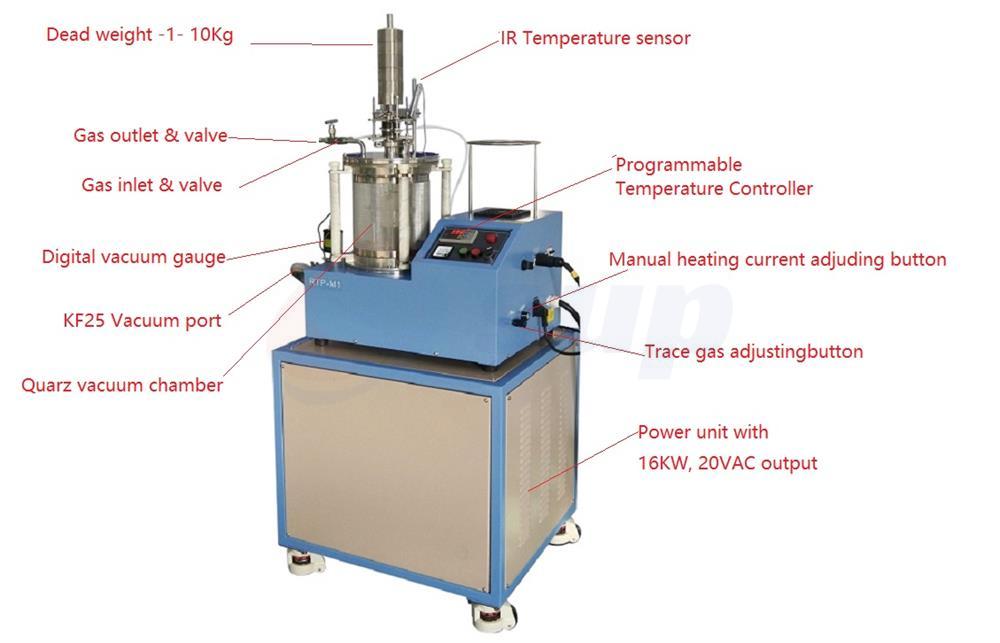

Product Features

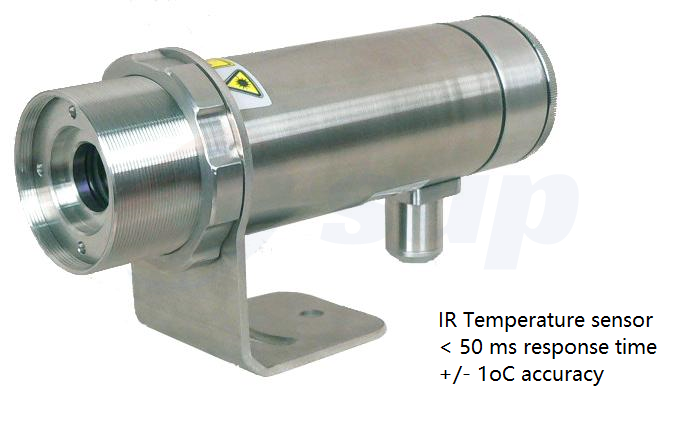

1. IR temperature sensor and t controller is nclued

2. 6" Quartz tube and SS flange as atmosphere control chamber with a vacuum level of 10x10-5 torr. ( inside gold coating is optional for better heating reflection.

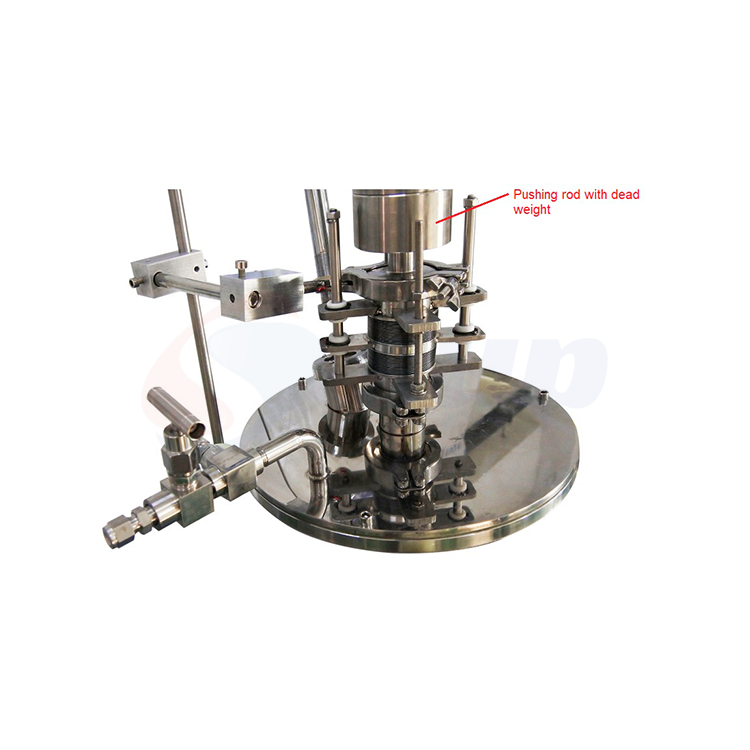

3. The vacuum-sealed deadweight can be applied to the sample for hot pressing

4. The gap between the two foils is adjustable for various sample thickness

5. Two tungsten foil or graphite foil disks as the heating element can reach 2900°Cmax. rapidly under low voltage and high current.

Product Parameters

Product Name	Desktop Ultrafast Thermal Pressing Furnace (UFTP) also RTP Annealing Furnace Or Film Coater
Model	RTP-M1
Furnace Power	208 - 240 VAC, 50/60Hz, single phase 16 kW transformer with an output of 20VAC to the heater

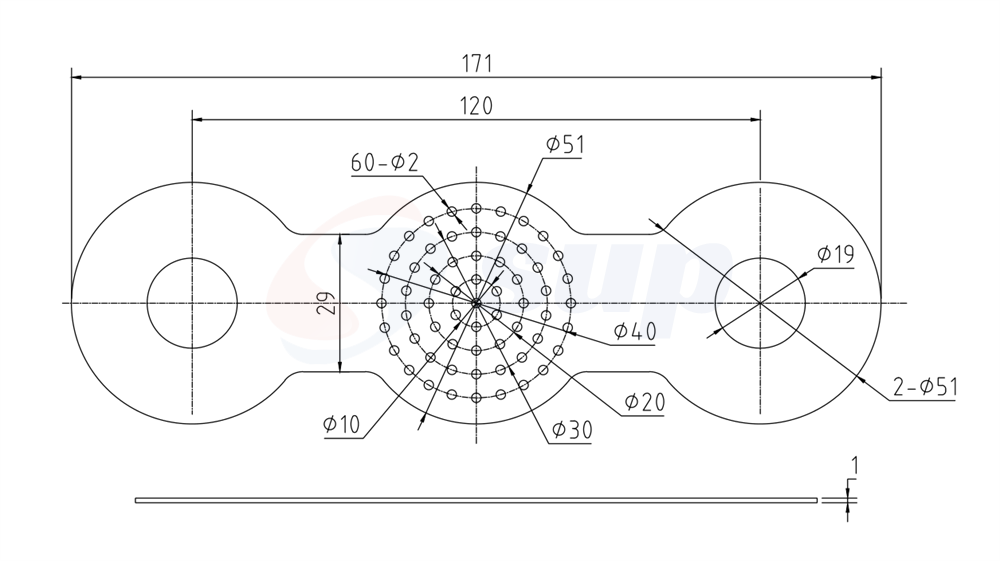

Heating Elements and DC Power Supply	Two sets of 2" tungsten discs with 0.2 mm thickness are included Two sets of 2" graphite discs with 0.2 mm thickness are included
Max. Temperature	2900ºC (30 seconds Max.)
Max. Heating Rate	<= 200 °C/ second
Pressure	10kg Max.
Sample size	Max. 35 mm diameter x 1.0 mm thickness You may process multi-samples at the same time for hi-though research
Temperature Control	There are two heating modes with digital IR temperature sensor (1) Manual heating with IR temperature display to achieve max heating rate ( ~ 200℃/S) (2) Programmable temperature control by IR sensor and digital display A digital temperature controller is included with _/-1℃ accuracy.

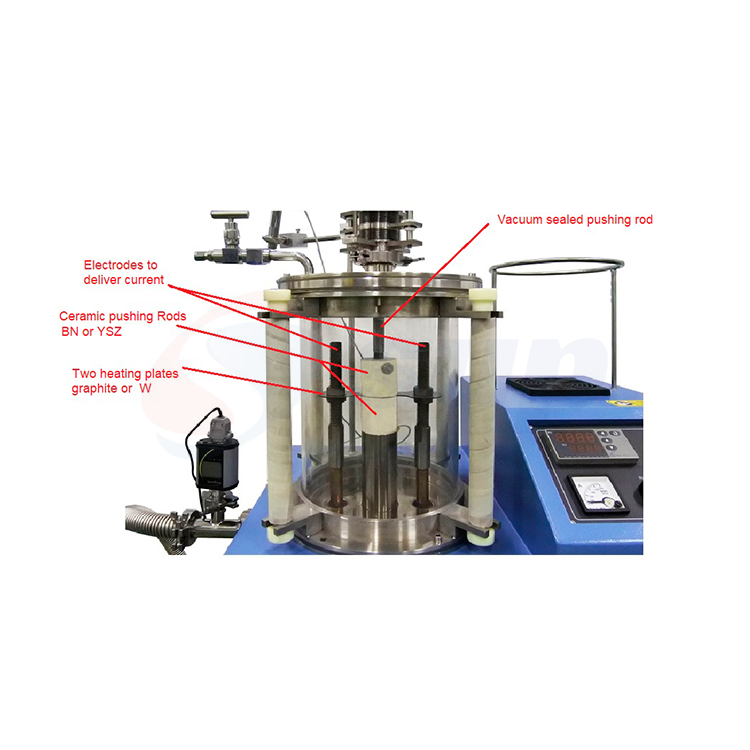

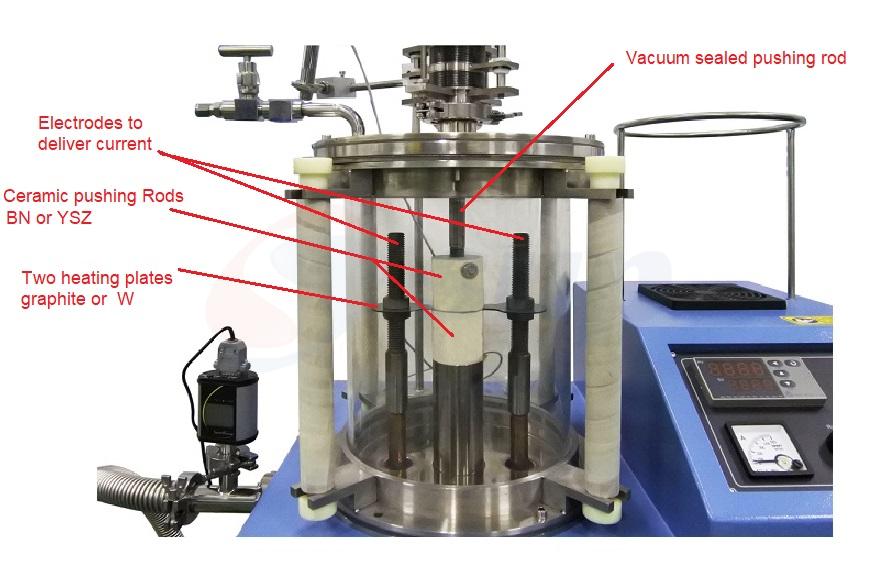

Pressure	Vacuum sealed and a movable rod is installed on the top flange. Two ceramic plates will press on the heating foils, where the sample is located between two heating foils. Deadweight with 1000 g each will add the rod and apply pressure to the sample. 10 pcs deadweight pieces are included for a total of 10 kg weight An electric motor-driven pressure mechanism is available upon request at an extra cost.

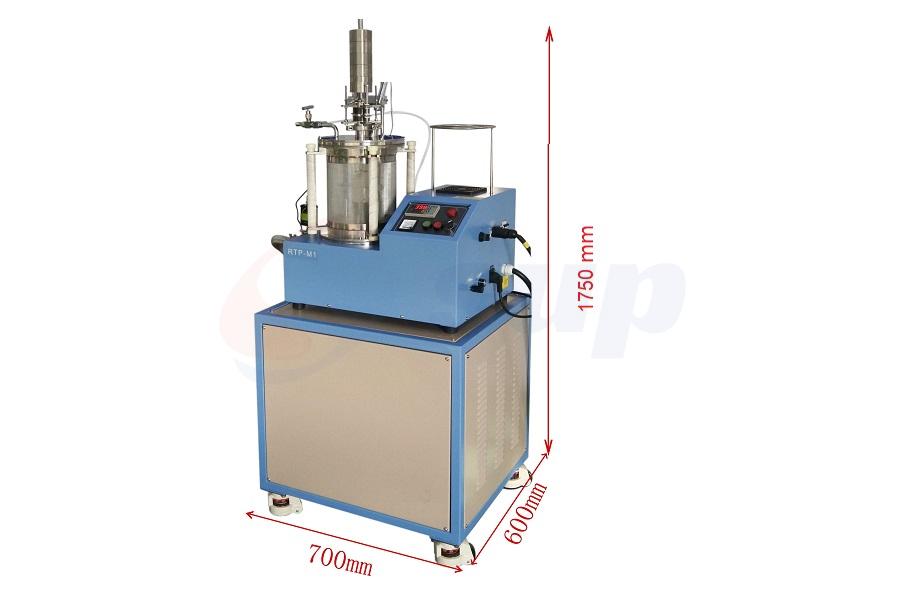

Dimensions	Dimensions: 1750mm * 700mm * 600mm Weight: 60kg
