7-Inch Touchscreen Vacuum Spin Coater for Semiconductor Processing Crystal Thin Film

Product Name: Vacuum Spin Coating Machine with 7-Inch Touchscreen

Product Model: VTC-100PAH

Product Description:The VTC-100PAH vacuum spin coater is suitable for surface coating preparation in semiconductor processes, crystals, optical discs, and photomasks. Operating program: includes 16 operational stages, with an effective coating speed of 1500-20000 rpm. The operating program contains 16 operational stages.

Product Description

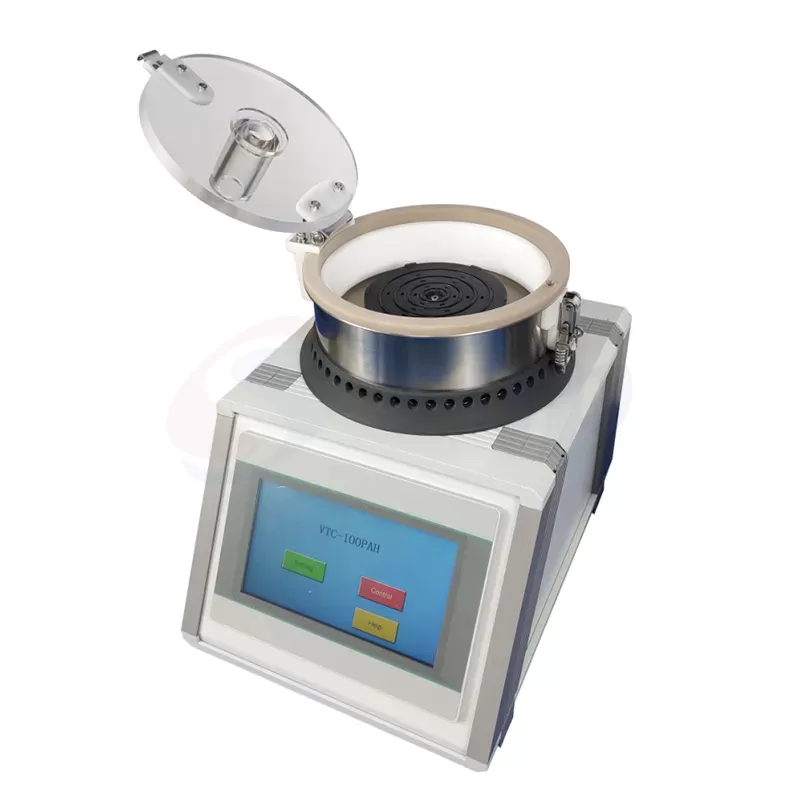

The VTC-100PAH Vacuum Spin Coater is a high-performance precision spin coating machine designed with advanced concepts and equipped with a precise motion control system. It enables high-precision and highly uniform coating operations.

The equipment chamber is made of polypropylene, offering excellent heat resistance, electrical insulation, and high wear resistance. While the chamber itself is not vacuum-sealed, the machine utilizes a vacuum chuck and air pipelines connected to an external vacuum pump. This design ensures secure sample fixation on the sample holder, providing easy operation and effortless sample handling. The vacuum chuck can achieve a vacuum level of up to -0.08 MPa.

The rotating spindle is powered by a high-speed DC brushless motor, characterized by low noise, minimal vibration, smooth operation, high reliability, strong adaptability, and simple maintenance. The motor starts quickly and stabilizes rapidly, ensuring consistent and uniform coating thickness.

The VTC-100PAH Vacuum Spin Coater features simple operation, easy cleaning, and a compact design. It is primarily used in laboratories at universities and research institutes for thin film generation processes.

Product Parameters

Product Name	7-Inch Touchscreen Vacuum Spin Coater for Semiconductor Processing Crystal Thin Film
Product Model	VTC-100PAH
Installation Conditions	Environmental and Technical Requirements for Equipment Installation 1. Temperature and Humidity: - Humidity: 10-85% RH (at 25°C, no condensation). - Temperature: 0-45°C. 2. Surrounding Conditions: - The equipment should be placed in an environment free from strong vibrations and corrosive gases. - Water supply: Not required. 3. Power Supply: - AC 100-240V, 50/60Hz. - Standard three-pin plug, 10A. - Proper grounding is essential. 4. Air Supply (Vacuum Pressure): - Vacuum pump with an exhaust flow rate of no less than 70 L/min. 5. Workbench: - Recommended dimensions: 800 x 600 x 700 mm. - Load-bearing capacity: 50 kg or more (preferably a solid concrete bench). 6. Ventilation System: - No special requirements.
Main Parameters	Equipment Specifications 1. Power Supply: - DC 24V. - Standard adapter: Input AC 100-240V, 50/60Hz; Output DC 24V, 15A. 2. Total Power Consumption: - 150W (excluding external vacuum pump). 3. Main Chamber (Material): - Polypropylene + Acrylic. 4. Sample Holders (Vacuum Chucks): - One 2-inch and one 4-inch chuck included. 5. Operating Program: - Includes 16 operational stages. 6. Coating Speed: - Effective range: 1500-20000 rpm (increments of 100 rpm). 7. Acceleration Rate Setting Range: - 100 rpm/s to 6000 rpm/s. 8. Deceleration Rate Range: - 100 rpm/s to 3000 rpm/s. 9. Time Setting Range: - 1-99s (for speed range: 1500 to 10000 rpm). - 1-60s (for speed range: above 10000 to 20000 rpm). 10. Vacuum Interface: - Quick-connect fitting, compatible with φ8 PU tubing. 11. Control Method: - 7-inch touchscreen (human-machine interface).
Product Specifications	Weight: 12 kg Dimensions: 250 × 340 × 320 mm
Note	The device comes standard with a "power adapter," with the following specifications: IN: AC100-240V 50/60Hz, OUT: DC24V 15A. The actual power supply should be based on the parameters indicated on the label at the rear of the product.

Standard Accessories

Item No.	Product Name	Qty
1	Vacuum suction cup (O type): 2 pieces, 4 inches each	2 set
2	Liquid reservoir	1 set
3	Oil-free vacuum	1 set
4	Adapter: 24V/15A	1 set
