Spin Coating Machine for Crystal Thin Film Processing with 7-Inch Touchscreen

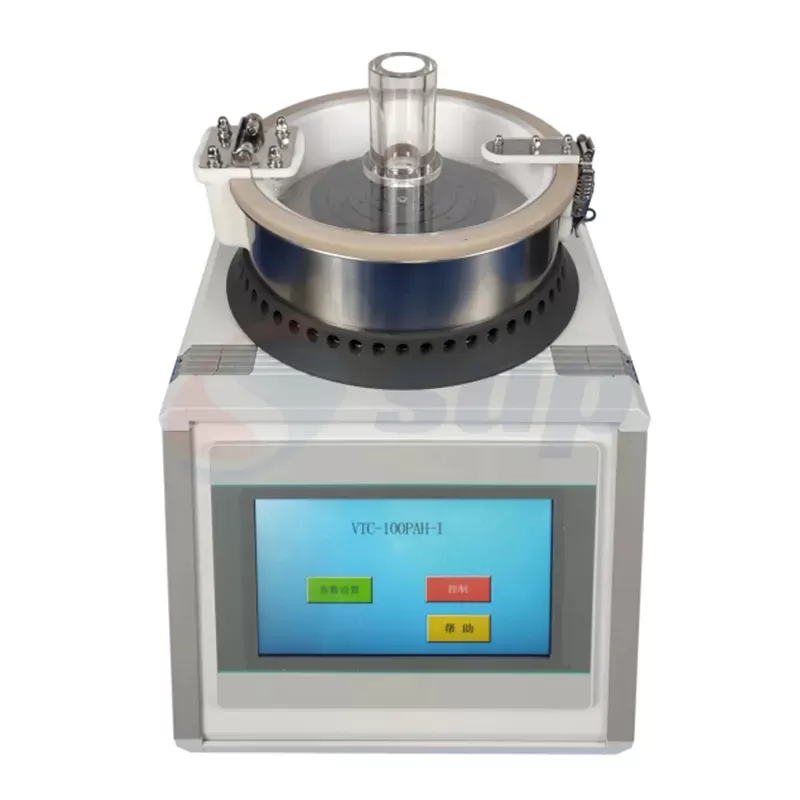

Product Name: Vacuum Spin Coater with 7-Inch Touchscreen

Product Model: VTC-100PAH-I

Product Description:The device's chamber cannot be vacuumed. During operation, it connects to an external vacuum pump using vacuum suction cups and air duct lines, allowing the sample to be securely attached to the sample holder. This method is user-friendly, facilitating easy placement and removal of samples, with the suction cup achieving a vacuum level of -0.08 MPa.

Product Description

The VTC-100PAH Vacuum Spin Coater is a high-performance precision spin coating machine designed with advanced concepts and equipped with a precise motion control system. It enables high-precision and highly uniform coating operations.

The equipment chamber is made of polypropylene, offering excellent heat resistance, electrical insulation, and high wear resistance. While the chamber itself is not vacuum-sealed, the machine utilizes a vacuum chuck and air pipelines connected to an external vacuum pump. This design ensures secure sample fixation on the sample holder, providing easy operation and effortless sample handling. The vacuum chuck can achieve a vacuum level of up to -0.08 MPa.

The rotating spindle is powered by a high-speed DC brushless motor, characterized by low noise, minimal vibration, smooth operation, high reliability, strong adaptability, and simple maintenance. The motor starts quickly and stabilizes rapidly, ensuring consistent and uniform coating thickness.

The VTC-100PAH Vacuum Spin Coater features simple operation, easy cleaning, and a compact design. It is primarily used in laboratories at universities and research institutes for thin film generation processes.

Product Parameters

Product Name	7-Inch Touchscreen Vacuum Spin Coater for Semiconductor Processing Crystal Thin Film
Product Model	VTC-100PAH
Installation Conditions	Environmental and Technical Requirements for Equipment Installation 1. Temperature and Humidity: - Humidity: 10-85% RH (at 25°C, no condensation). - Temperature: 0-45°C. 2. Surrounding Conditions: - The equipment should be placed in an environment free from strong vibrations and corrosive gases. - Water supply: Not required. 3. Power Supply: - AC 100-240V, 50/60Hz. - Standard three-pin plug, 10A. - Proper grounding is essential. 4. Air Supply (Vacuum Pressure): - Vacuum pump with an exhaust flow rate of no less than 70 L/min. 5. Workbench: - Recommended dimensions: 800 x 600 x 700 mm. - Load-bearing capacity: 50 kg or more (preferably a solid concrete bench). 6. Ventilation System: - No special requirements.
Main Parameters	1. Power Supply: 220V Standard Adapter: Input AC 100-240V 50/60Hz, Output DC 36V 6.1A 2. Total Power: 300W 3. Operation Interface: 7-inch touchscreen 4. Speed Range: Adjustable from 1,500 to 25,000 rpm (increment step: 100 rpm). 5. Operating Program: Includes 16 operational stages. 6. Acceleration Rate per Stage: 100 rpm/s to 6,000 rpm/s. 7. Deceleration Rate: 100 rpm/s to 3,000 rpm/s. 8. Time Range: 1s to 99s. 9. Suction Cup Sizes: 1 inch; 2 inches; 3 inches; 4 inches. 10. Vacuum Port: Quick-connect fitting with φ8 PU tube connection. 11. Digital Vacuum Gauge (vacuum level can be preset).
Product Specifications	Weight: 12 kg Dimensions: 250 × 340 × 320 mm
Note	The device comes standard with a "power adapter," with the following specifications: IN: AC100-240V 50/60Hz, OUT: DC24V 15A. The actual power supply should be based on the parameters indicated on the label at the rear of the product.

Standard Accessories

Item No.	Product Name	Qty
1	Vacuum suction cup (O type): 2 pieces, 4 inches each	2 set
2	Liquid reservoir	1 set
3	Oil-free vacuum	1 set
4	Adapter: 24V/15A	1 set
