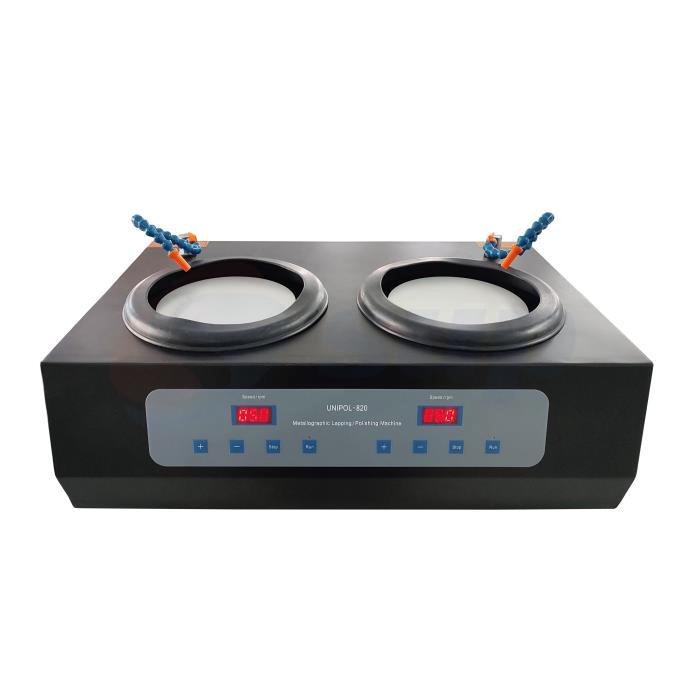

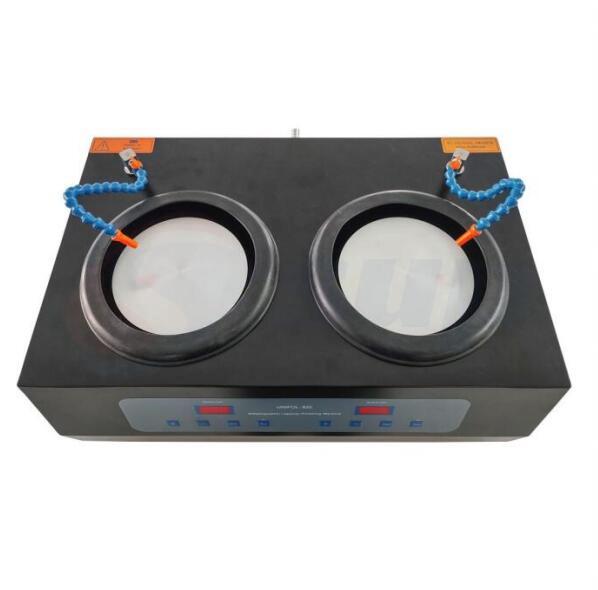

Dual 8-inches Platens Grinder Lapping Machine for Polishing

Product Model: Unipol-820

Product Description: EQ-UNIPOL-820 is a heavy-duty grinding / polishing machine with two 8" lapping plates and independent speed control. Upgraded magnetic plates were installed in the machine, which makes installing sandpaper/polishing pad quickly and easily. UNIPOL-820 is perfect for use in a metallographic lab to prepare small samples faster and easier.

EMAIL

Product Description

Precision grinding and polishing with our dual 8" lapping plate machine. Independent speed control for each plate allows for optimal process customization, ensuring superior surface finishes on various materials. Ideal for labs and small-scale production.

Product Parameters

Structure

• Heavy Duty Cast with Bright Painting (Color: Black)

• Belt driven platen with stable and quiet operation.

• Soft rubber splash guard ring for safe operation.

Power

AC 110V and 208-240V (50/60Hz) switchable for worldwide operation.

Motor

Two  300W high torque DC motor with belt pulley with independent speed control.

Polishing plate

3 pins plug-type; Fast installation and take off

Net weight

• 44 kg

Shipping dimension

42" x 48" x 25" (inch)


Application Notes

Warning:  Please always clean the machine after each use.  and don't overflow water into the inside machine.

Compliance

 • CE Certified

• NRTL certification is available at the extra cost

Warranty

• One year limited warranty with lifetime support

• Rusting and damage due to improper storage condition or maintenance are not covered by warranty

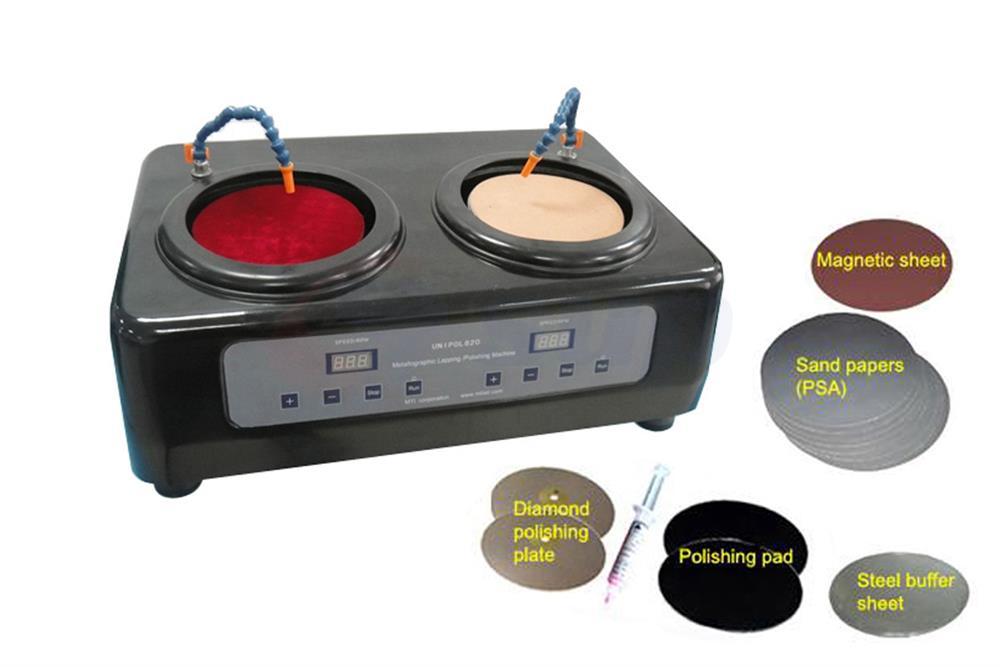

STANDARD PACKAGE

P/NItem Name
Qty
UP820-01Aluminum alloy master plate 8" dia lapping plate2

UP820-02

8"dia.x 0.8mm thick permanent magnetic sheet with PSA backing(installed in Aluminum plate)2

UP820-03

8" dia. Diamond Lapping plates with 320 mesh and 600 mesh separately

(without PSA, can be directly attached to the magnetic plate)

2

UP820-04

8"dia x 0.7mm thick steel buffer sheet (Zinc coated) for carrying sandpaper and polishing pad,

(which can be attached to the magnetic plate at the stable and take off at easy)

4

UP820-05

8" Sic sandpapers (2 of each at the mesh of 240#, 400#, 800#,1500#) 2

UP820-06

8" PSA black polishing pads for final polishing.  2

UP820-07

10g 0.25 micron diamond paste for faster polishing. 1
