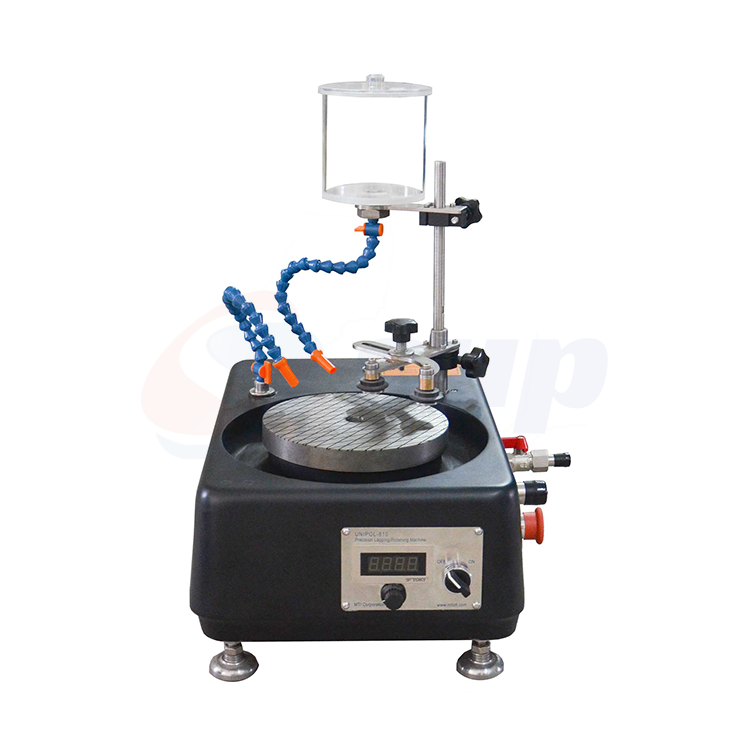

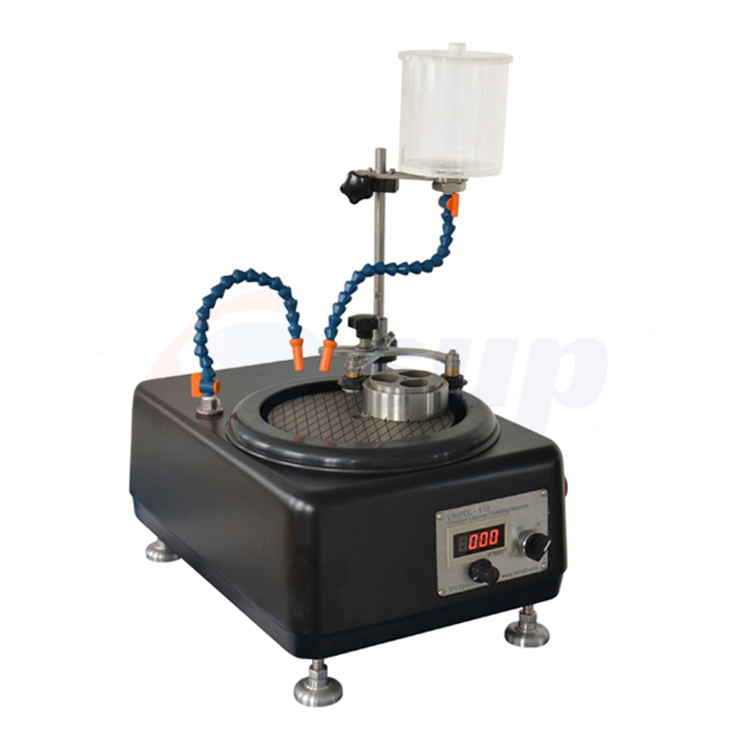

Product Model: Unipol-810
Product Description: The UNIPOL 810 polishing machine features an 8" ultra-flat aluminum lapping plate and a work sample support, along with a full set of diamond lapping accessories. It can function as a standard manual grinder or as an automatic lapping/polishing machine for flat and metallographic samples. This machine offers the most cost-effective solution for material research laboratories.
Product Description
The UNIPOL 810 polishing machine features an 8" ultra-flat aluminum lapping plate and a work sample support, along with a full set of diamond lapping accessories. It can function as a standard manual grinder or as an automatic lapping/polishing machine for flat and metallographic samples. This machine offers the most cost-effective solution for material research laboratories.
Product Parameters
Structure | • Heavy Duty Cast with Bright Painting (Color: Black) • Belt driven platen with stable and quiet operation. • Soft rubber splash guard ring for safe operation. |
Power | AC 110V and 208-240V (50/60Hz) switchable for worldwide operation ( Voltage sawitch is in the back of the machine) |
Motor | 0.25 KW high torque DC motor |
Features | • Heavy-duty cast aluminum case with the painting surface • Belt drive with high torque and quiet operation • 8" dia Super flat lapping plate • Condition ring with one 75 mm dia flat sample holder for lapping polishing flat component • 3" dia. flat sample holder for polishing flat sample 75 mm dia. sample holder with three holes to allow polishing three metallographic samples up to 1" dia. at one time, which is available as optional • Yoke without swing to allow polishing automatically |
Variable speed | • 0 - 600 RPM |
Plate Run-off | < 5 micron |
Dimensions | 525 L x 350 W X325 H (mm) |
Accessories | • Two 8" PSA Diamond Lapping plates with 320 mesh and 600 mesh separately for fast lapping/grinding • Two 8" PSA polishing pads for final polishing • 10g 0.5 micron diamond paste for faster polishing |
Shipping Weight | 160 lbs |
Compliance | • CE Certified |
Warranty | • One year limited warranty with lifetime support • Rusting and damage due to improper storage condition or maintenance are not covered by warranty |
STANDARD PACKAGE
P/N | Item Name | Qty |
UP810-01 | Unipol 801 Machine | 1 |
UP810-02 | Slurry Container | 1 |
UP810-03 | 3" Condition Ring | 1 |
UP810-04 | 3" Sample flat Holder | 1 |
UP810-05 | Yoke Supporter | 1 |
UP810-06 | 8" Dia x 0.7mm Thick Steel Buffer Sheet | 1 |
UP810-07 | 8" Polyamide Foam Polishing Pad | 1 |
UP810-08 | 8" Poremeric Polishing Pad (PSA) | 1 |
UP810-09 | 8" 320 mesh diamond lapping plate | 2 |
UP810-10 | 8" 600 mesh diamond lapping plat | 2 |
UP810-11 | Diamond Compound Polishing Paste, 1 Micron, 10 gra | 1 |
UP810-12 | Power Cord | 1 |
