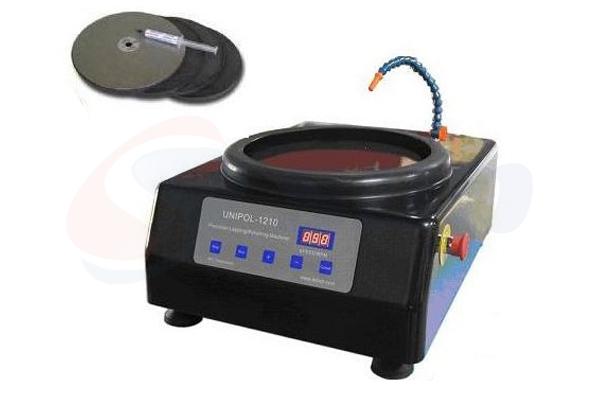

Heavy Duty 12 inches Precision Grinding / Polishing Lapping Machine

Product Model: Unipol-1210

Product Description: UNIPOL-1210 grinding/polishing machine is equipped with 12" lapping plate and can be used as a standard manual grinder, or lapping/polishing machine for both flat sample and metallographic samples. It is the most cost-effective solution for the material research lab to prepare metallographic samples and failure analysis.

EMAIL

Product Description

UNIPOL-1210 grinding/polishing machine is equipped with 12" lapping plate and can be used as a standard manual grinder, or lapping/polishing machine for both flat sample and metallographic samples. It is the most cost-effective solution for the material research lab to prepare metallographic samples and failure analysis.

Product Parameters

Features

• Digital control panel with "touch button" operation

• Water resistance

• 12" Aluminum master plate with a magnetic pad and steel buffer sheet for an easy diamond plate

and sandpaper replacement

Power

DC 24V

An AC 110 - 240V to DC 24V power adapter is included.

Motor

300 W high torque DC motor with one year warranty

Variable speed

50 - 600 RPM with digital display

Emergency stop

• Emergency stop possible

Dimensions

600 L x 460 W x 280 H (mm)

Hose Diameter

Water hoses (for water inlet and outlet) were included

• Hose I.D for the water outlet: 25mm

• Hose I.D for the water inlet: 15mm

Accessories• One 12" diameter aluminum metal plate was pre-installed with a magnetic pad. (EQ-MagnetP12)

• Five steel buffer sheets (Zinc coated) for carrying sandpaper and polishing pad, which can be attached to the magnetic plate stable and easy detachment

• Two 12" PSA Diamond Lapping plates with 600 mesh and 800 mesh separately

• One 12" PSA black polishing pads for final polishing

• One 10g diamond paste for testing polishing.

Net weight

• CE Certified

• NRTL certification is available at the extra cost

Warranty

• One year limited warranty with lifetime support

• Rusting and damage due to improper storage condition or maintenance are not covered by warranty

STANDARD PACKAGE

P/NItem Name
Qty
EQ-Unipol-1210Heavy Duty (12") Precision Grinding / Polishing Machine1

Unipol-1210-1

Pre-installed 12" diameter aluminum metal plate with a magnetic pad. (EQ-MagnetP12

1

Unipol-1210-2

Anti-Splash Plastic safeguard ring (Pre-installed)

1

EQ-PP-12PSA-PC

Ø12" Polishing Pad (Frosted Leather) (Black)

1

EQ-PFP012

12" Polyamide Foam Polishing Pad (Brown)1

EQ-PP-12SL

Ø12" Polishing Pad (Synthetic Leather) (White)1

EQ-SteelBF12

Five steel buffer sheets (Zinc coated) for carrying sandpaper and polishing pad,

which can be attached to magnetic plate stable

5
EQ-MWOne 10g diamond paste for testing polishing1

EQ-DG

Two 12" PSA Diamond Lapping plates with 600 mesh and 800 mesh separately1
