Product Model: Unipol-2001

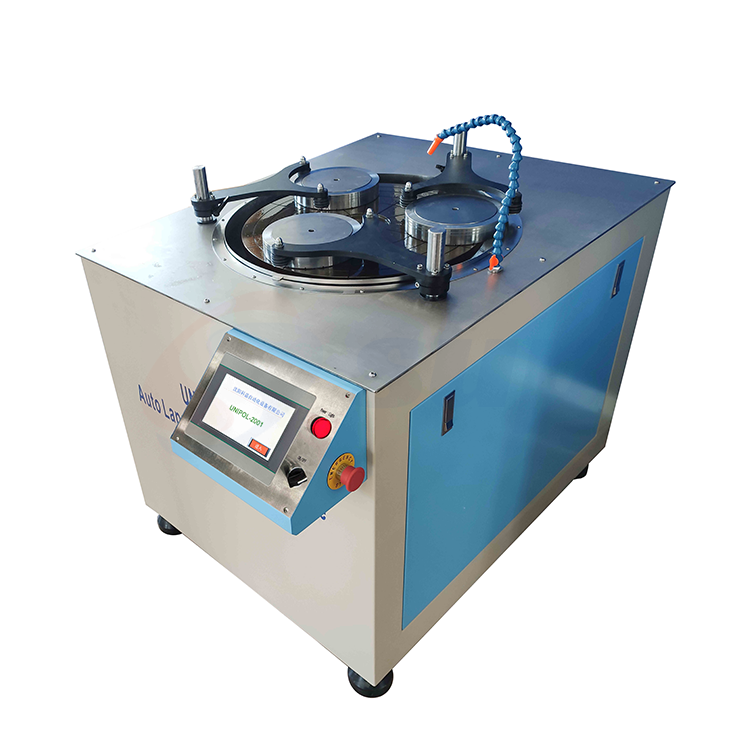

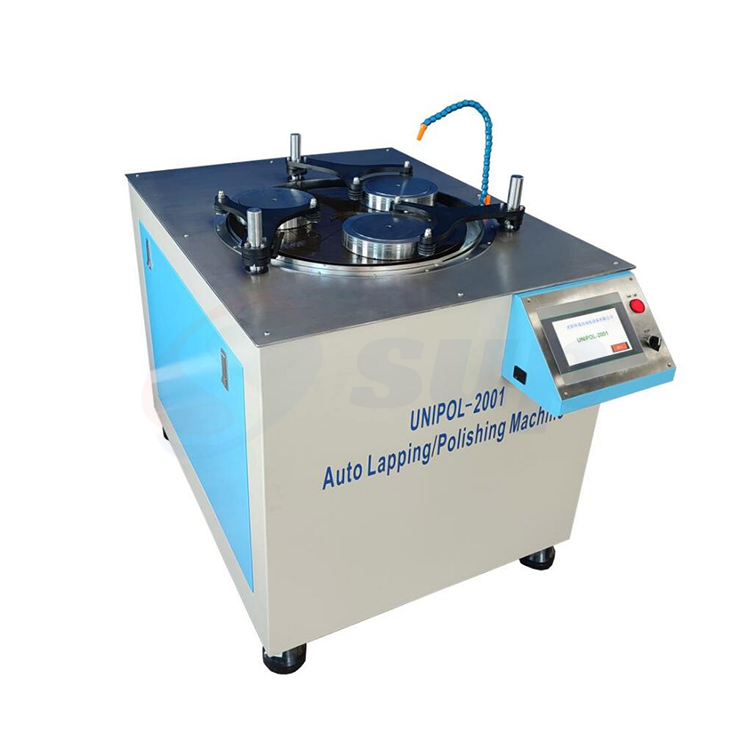

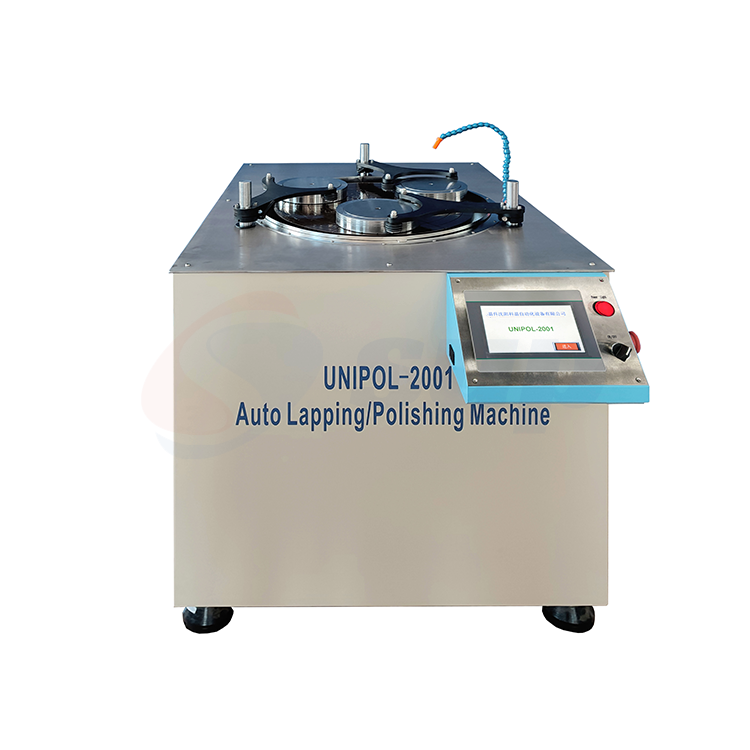

Product Description: The UNIPOL-2001 is a precision grinding and polishing machine equipped with three processing stations, tailored for large samples (≤Ø160mm wafers or rectangular samples with a diagonal length ≤160mm). It is capable of grinding and polishing a wide range of materials, including crystals, ceramics, metals, glass, rock samples, mineral samples, PCB plates, and infrared optical materials (such as zinc selenide, zinc sulfide, silicon, and germanium), as well as refractories, composites, and other substances.
Product Description
UNIPOL- 2001 is a precision grinding and polishing machine with three processing stations, specifically for large-size samples. (≤Ø160mm wafers or rectangular with diagonal length ≤160mm). It can be used for grinding and polishing crystals, ceramics, metals, glass, rock samples, mineral samples, PCB plates, infrared optical materials (such as zinc selenide, zinc sulfide, silicon, germanium, etc.), refractories, composites, and other materials.
Product Parameters
Environment Condition | • Altitude: ≤1000m • Temperature: 25°C±15°C • Humidity: 55%Rh±10%Rh |
Power | • AC 220V, single phase, 50/60 Hz • 1.7kW |

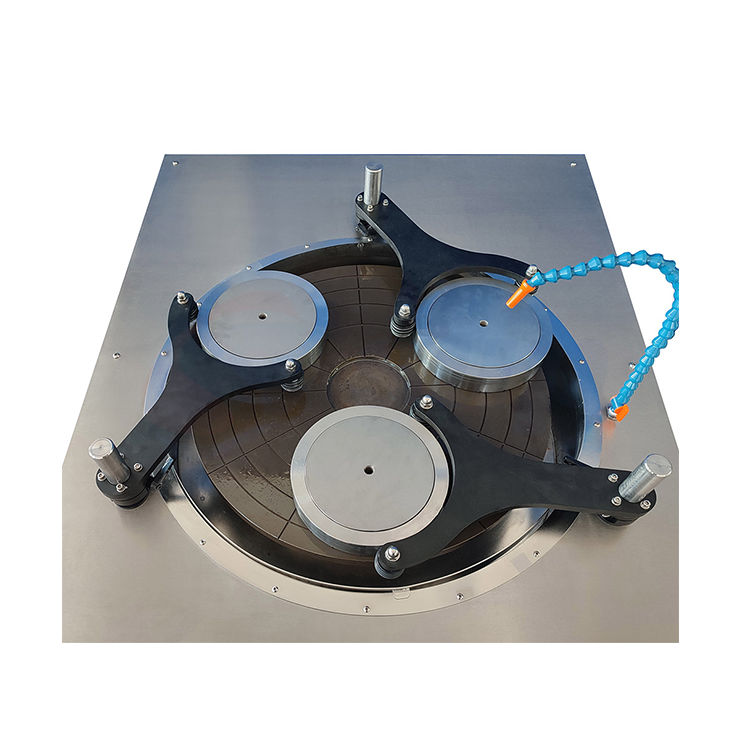

Grinding Plate and Rocking York | One cast-iron plate for lapping and one cast aluminum plate for polishing - Diameter Ø508mm (20 inches) - Speed: 20-90 RPM Three rocking workstations with wafer holders and condition rings, which can be controlled independently for polishing Three pieced of 6"- 8" wafers at the same time Three flat sample holder and conditional rings for 6" wafers are included 8" sample holder sand conditional rings are available upon request |
Sample Plate | Diameter Ø160mm (6 inches) Thickness: 35mm * Three sample plates and three plate holders are located at three equal points outside the grinding plate |
Conditioning Ring | • OD: Ø196mm • ID: Ø160.5mm • Thickness 35mm |
Dimensions | 1180 L x 820 W x 945 H (mm) |
Weight | 450kg |
Warranty | • One year limited warranty with lifetime support • Rusting and damage due to improper storage condition or maintenance are not covered by warranty |
