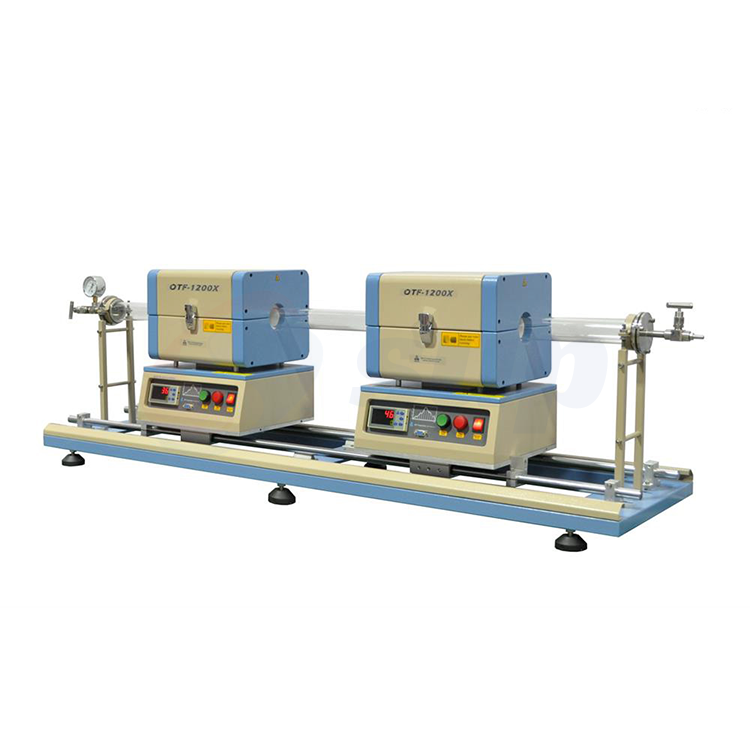

Product Name: Dual Sidable RTP Tube Furnace for thermal CVD with 50 mm Tube Flanges Max 1200C
Product Model: OTF-1200X-S-50-DFSL
Product Description: OTF-1200X-S-50-DFSL is a dual slidable RTP Tube furnace on the rail. It is a tool for thermal CVD with 2" ODx55"L Quartz tube & flanges and max 1200°C achievable working temperature.

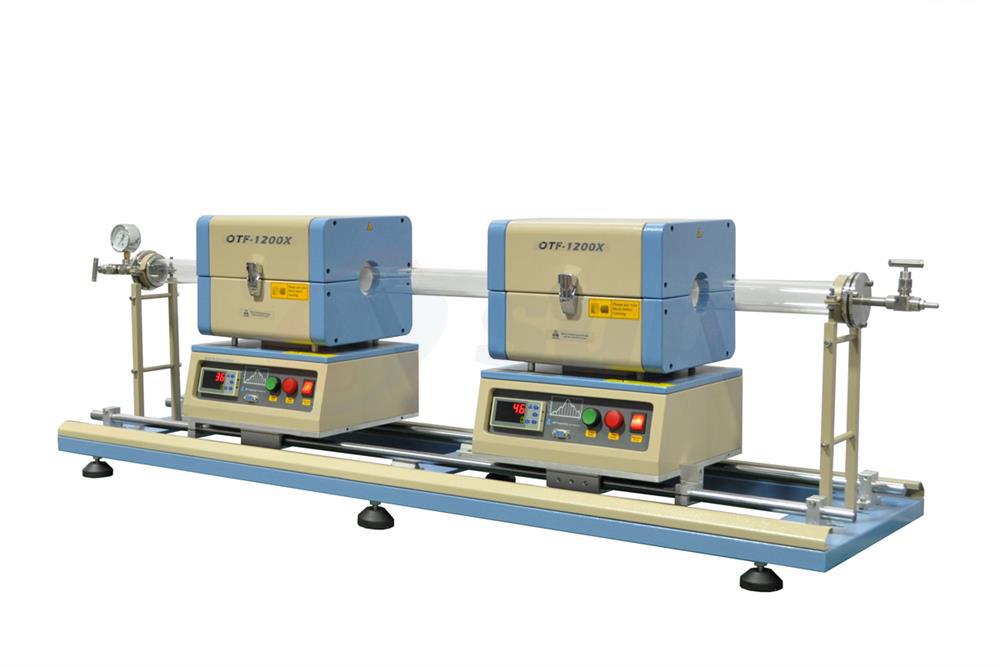

Product Description
OTF-1200X-S-50-DFSL is a dual slidable RTP Tube Furnace on the rail. It is a tool for thermal CVD with 2" ODx55"L Quartz tube & flanges and max 1200°C achievable working temperature. Two 2" tube furnaces can be slide on the sliding rail to find positions for source materials thermal evaporation/sublimation and film deposition. Sliding the furnace from one side to another can achieve max. heating and cooling rates up to 100°C/min. Optional motorized sliding, MFC gas delivery, and RF Plasma generator are available to build a flexible TCVD system easily at a low cost.
Product Parameters

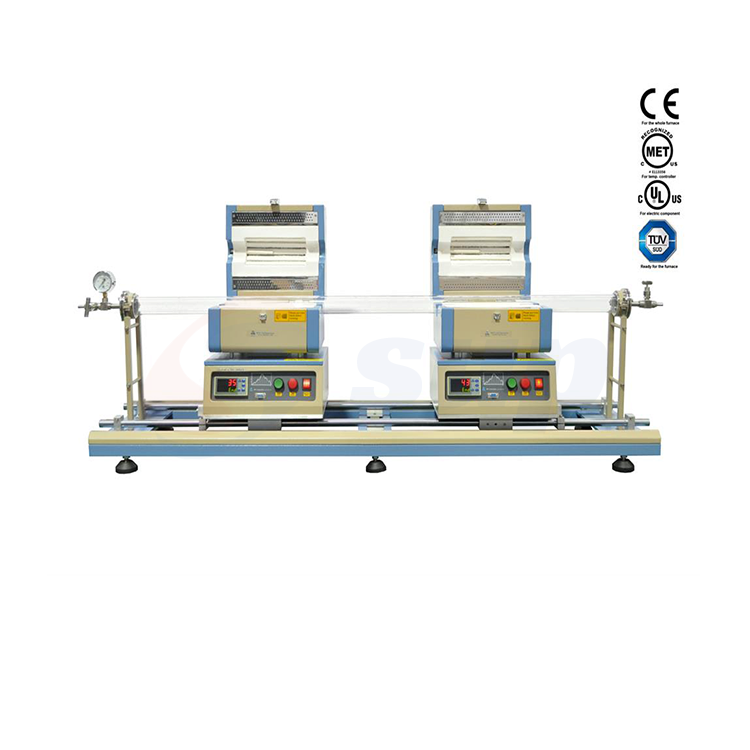

Product Name | Dual Sidable RTP Tube Furnace for thermal CVD with 50 mm Tube Flanges Max 1200C |
Model | OTF-1200X-S-50-DFSL |
Furnace Structure | 1. Both furnaces are double-layer steel structures with 1200°C max. working temperature 2. Each Furnace has a 200mm heating zone and a 60 mm long constant temperature zone 3. One pair of sliding rails are installed on the bottom of the furnace, which allows the furnace to be manually moved from side to side with a max sliding distance 400 mm. 4. Vacuum flanges are installed for immediate use. |
Power | AC 208-240V Single Phase, 50/60 Hz, 20 A air breaker required 2.5 KW in total |
Max. Temperature | 1200°C (<1 hour) |
Continuous Temperature | 1100°C |

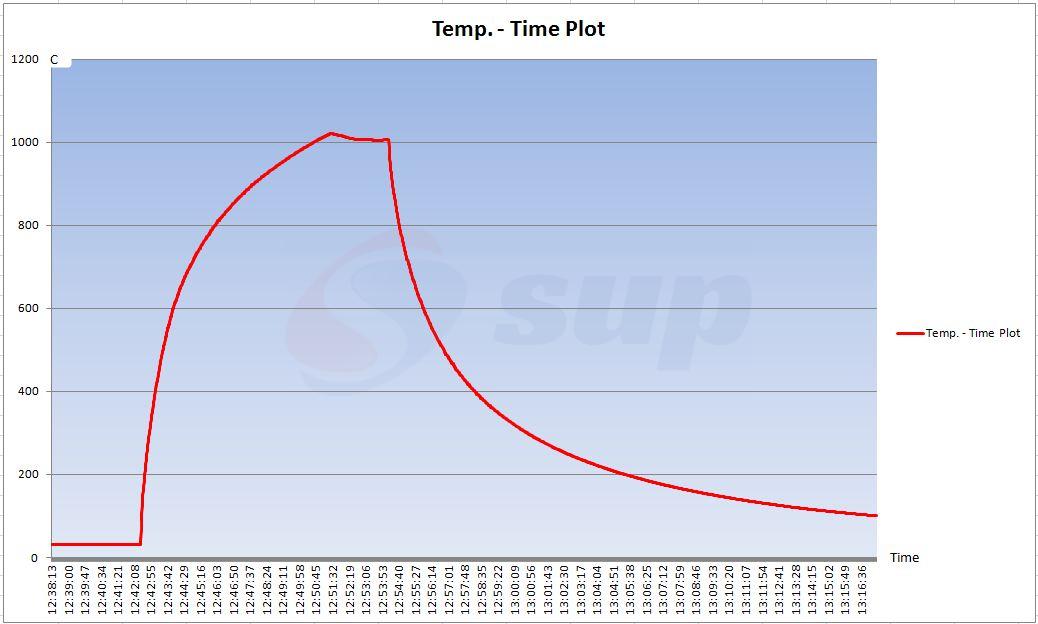

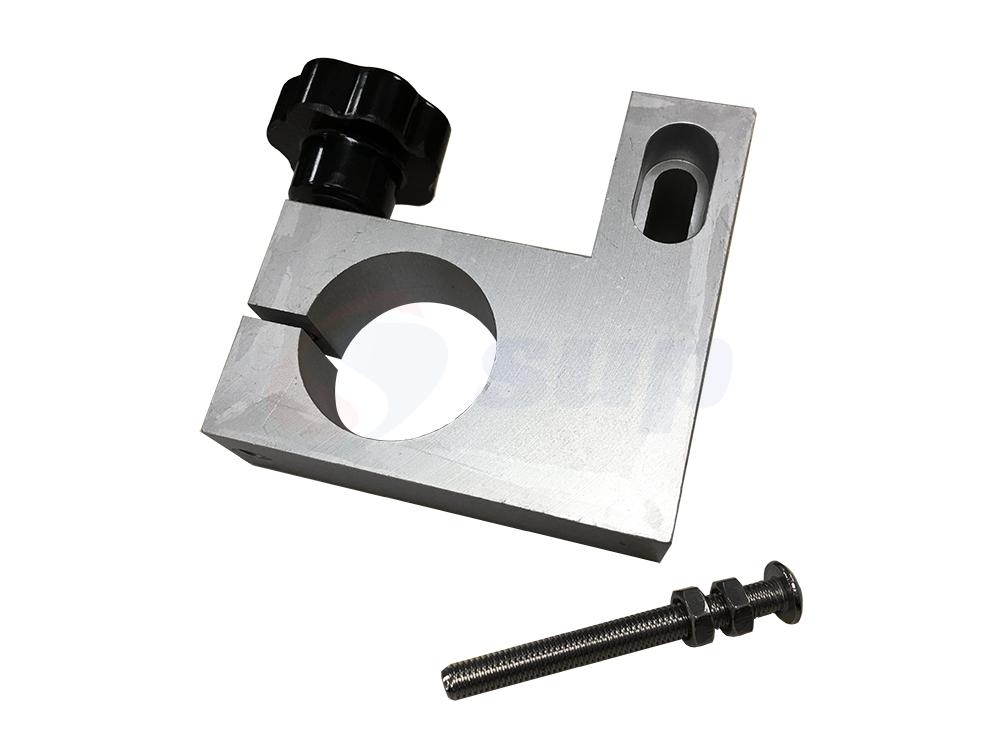

Heating& Cooling Rates | Heating Rate: 15°C/sec (RT - 150°C); 10°C/sec (150°C - 250°C); 7°C/sec (250°C - 350°C); 4°C/sec (350°C - 500°C); 3°C/sec (350°C - 550°C); 2°C/sec (550°C - 650°C); 1°C/sec (650°C - 800°C); 0.5°C/sec (800°C - 1000°C); Cooling Rate: 15°C/sec (1000 - 950°C); 10°C/sec (950°C - 900°C); 7°C/sec (900°C - 850°C); 4°C/sec (850°C - 750°C); 2°C/sec (750°C - 600°C); 1.5°C/sec (600°C - 500°C); 1°C/sec (500°C - 400°C); 0.5°C/sec (400°C - 300°C); Note: The max heating and cooling rate is achieved by pre-heat one side of processing tube to the target temperature and then slide the furnace to the other side. You may choose to place the sample in the pre-heat area or not. |
Heating Zone Length | 200mm( ~8") for each furnace |
Constant Temperature Zone | 60 mm (+/-1°C @ 400-1200°C) |
Temperature Controller | Two furnaces are PID automatic control with 30 programmable segments for precise control of heating rate, cooling rate, and dwell time. Built-in over-temperature alarm and protection allow for operation without an attendant. Two K-type thermal couples are included. |
Sliding Rails / Table | Double sliding rail made by Cr-plated steel Sliding length: 1200 mm One slide-stopping clamp is included for holding the position of the furnace. |
Compliance | CE Certified NRTL or CSA certification is available upon request at extra cost. |

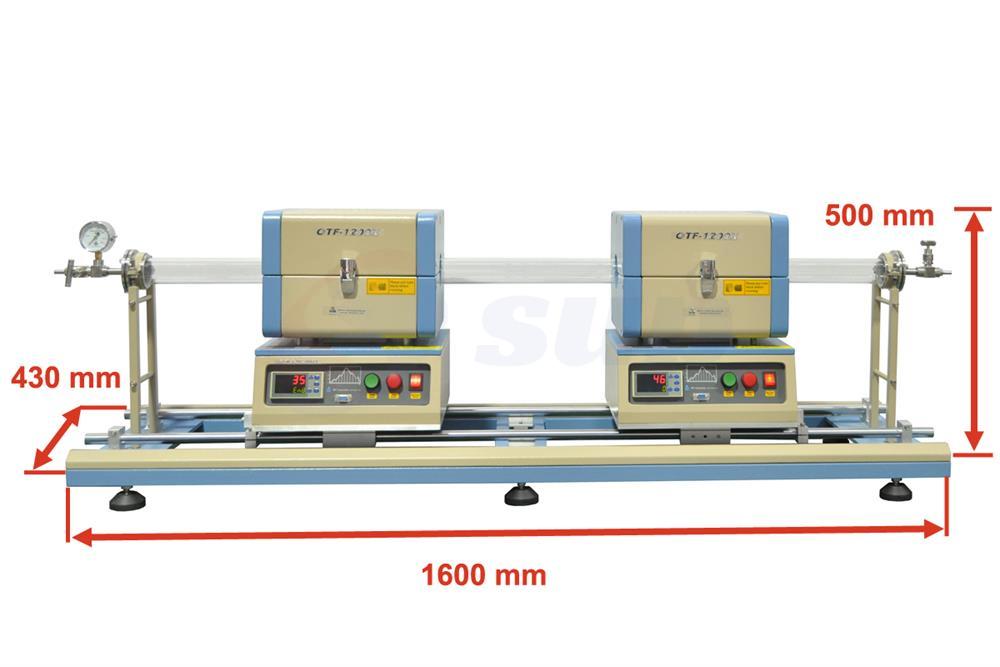

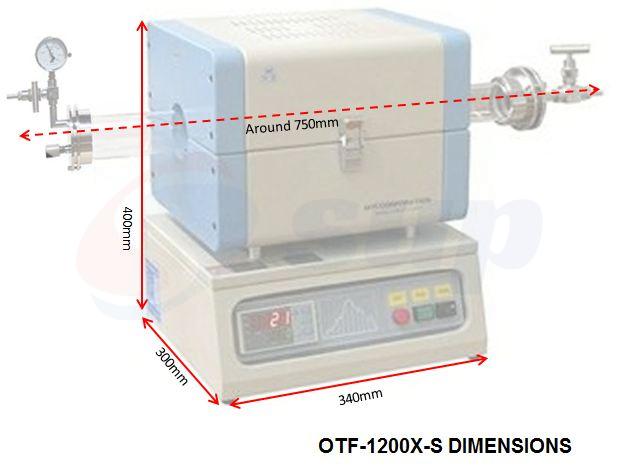

Dimensions | Dimensions: 1. Furnace: 340 x 300 x 400 mm 2. Total:1600 x 430 x 500 mm ( furnaces + sliding ) Weight: 102 Kg |
Warranty | One-year limited manufacturer's warranty (Consumable parts such as processing tubes, O-rings and heating elements are not covered by the warranty, please order replacements at related products below). |
