Two Zone Slide-able RTP Tube Furnace with 50mm OD Tube Vacuum Flanges Max 1500C

Product Name: Two Zone Slide-able RTP Tube Furnace with 50mm OD Tube Vacuum Flanges

Product Model: OTF-1500X-II-50SL

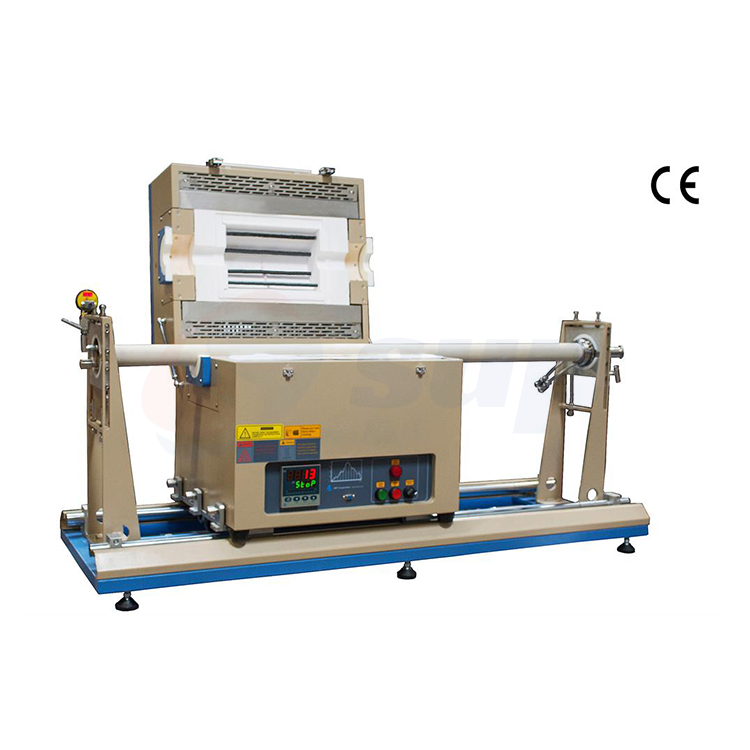

Product Description: OTF-1500X-II-50SL is a 1500°C Two Zone slide-able tube furnace with 50mm OD x 55"L mullite tube and vacuum flanges. One pair of sliding rail is installed on the bottom of the furnace.

EMAIL

Product Description

OTF-1500X-II-50SL is a 1500°C  Two Zone slide-able tube furnace with 50mm OD x 55"L  mullite tube and vacuum flanges. One pair of sliding rail is installed on the bottom of the furnace.  The furnace can be moved manually from one side to the other for achieving a max. heating or cooling rate up to 60°C/min. For the fastest heating, the furnace may be pre-heated to the desired temperature and then be slid to the sample's position. As for the fastest cooling, the furnace can be slid to another side after sample heating is completed. This system provides a solution for rapid thermal processing at the lowest cost.


Product Parameters

Product Name

Two Zone Slide-able RTP Tube Furnace with 50mm OD Tube Vacuum Flanges Max 1500C

ModelOTF-1500X-II-50SL

Furnace Structure

1. Two heating zones ( 2000L per zone) with independent temperature control up to 1500°C for each zone.

2. High-quality SiC heating elements ( 16 pcs )

3. 50 mm OD  x 60" L  mullite tube made in the USA for better thermal shock resistance

4. Splittable cover for easy changing the processing tube.

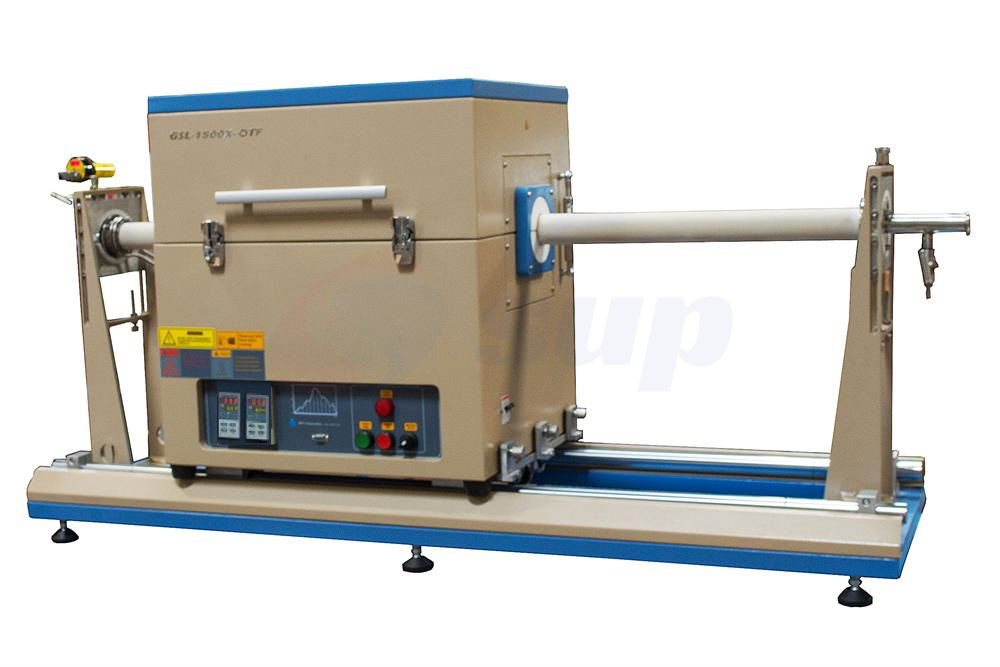

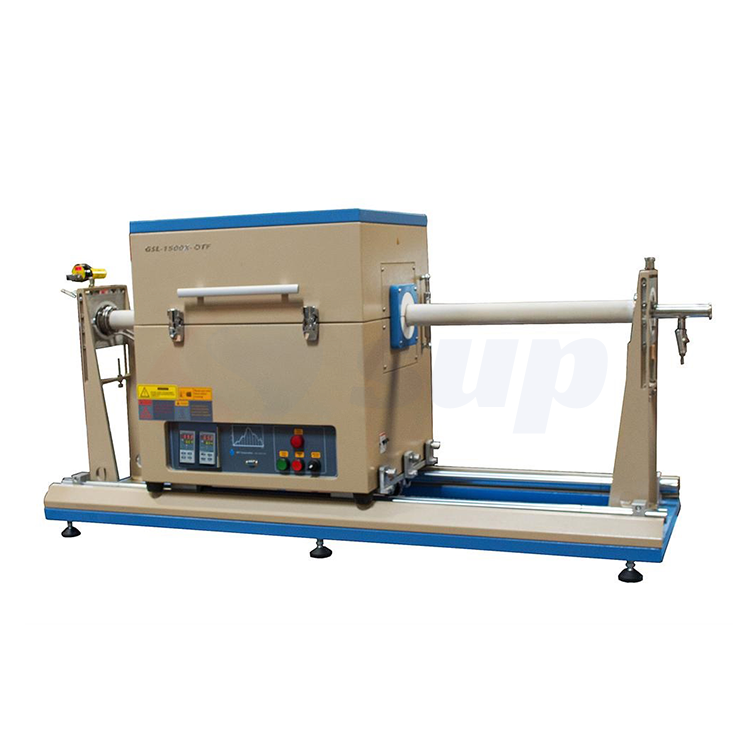

5. One pair of sliding rails are installed on the bottom of the furnace to allow moving from one side to the other

6. The Temperatur control unit may separate from the furnace to remote control.

7. Please click the picture left column for detail specification fo the furnace


Power

1. AC 208-240V Single Phase, 50/60 Hz

2. 6KW Max  ( 50A Air breaker)

3. The power cable is included, but without plug



Heating Zone

&

Working Temperature

Two heating zones:                       200 mm/ each  (included 20 mm spacing)

Total zone length:                         400 mm

Max. Working Temperature :        1500°C ( < 30minute )

Continuous Temperature:             1400°C


Heating Elements

1500°C grade SiC Rod  ( 16 pcs )

Processing Tube Size

Mullite tube made in the USA

Size:  OD 2" x  ID 1.75" x Length: 55" (OD:  50.8 x ID 44.45 x Length 1400 mm)

Two foam ceramic blocks are included which must be placed inside the tube to avoid heat radiation damaging O-ring.

Note: The Mullite tube is consumables and has no warranty provided. Faster healing and cooling may reduce the service life of the tube


 Temperature Controller

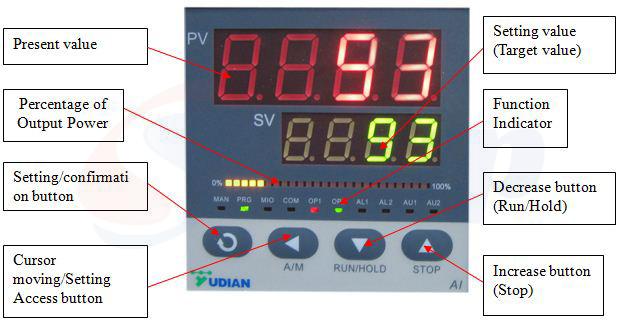

1. Two PID automatic controllers via SCR power control for each heating zone

2. 30 programmable segments for precise control of heating rate, cooling rate and dwell time with +/- 1ºC accuracy

3. Built-in over-temperature alarm and protection allow for operation without an attendant.

4. Two S type thermal couples are included.

5. RS485 port is built-in and software is included for PC remote control

Optional:

Two Eurotherm-3000 precision controllers with +/- 0.1ºC and software is available upon request at $ 2000 extra.

Temperature Controller.jpg

Vacuum Flanges

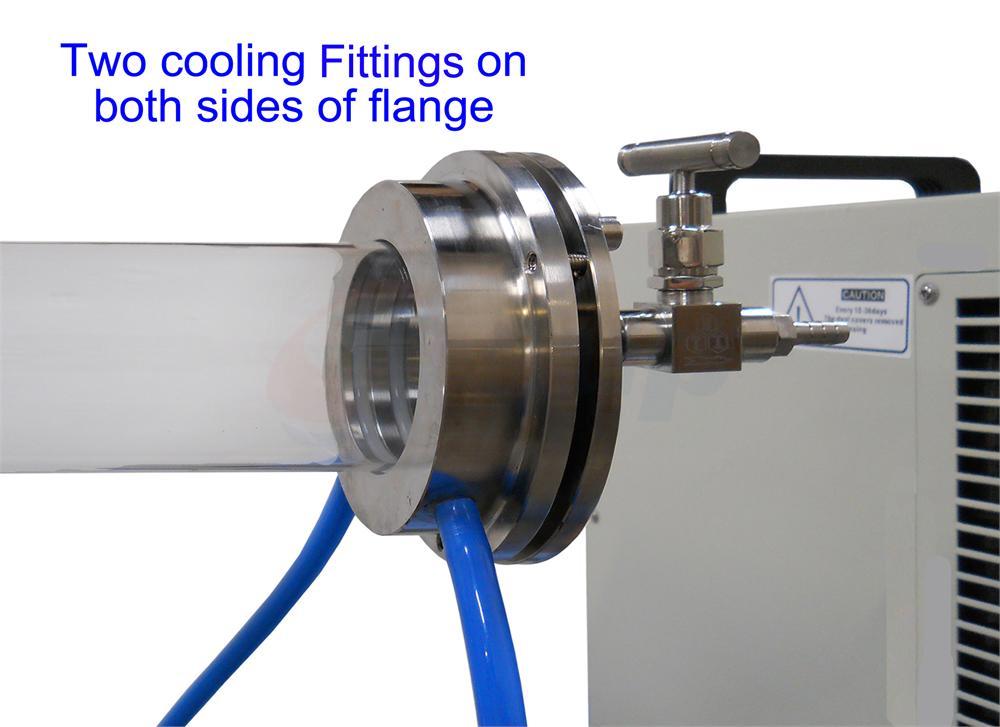

1. Stainless steel vacuum flanges with the build-in water cooling jacket are installed on both ends of the tube with heavy-duty support.

Stainless steel vacuum flanges.jpg

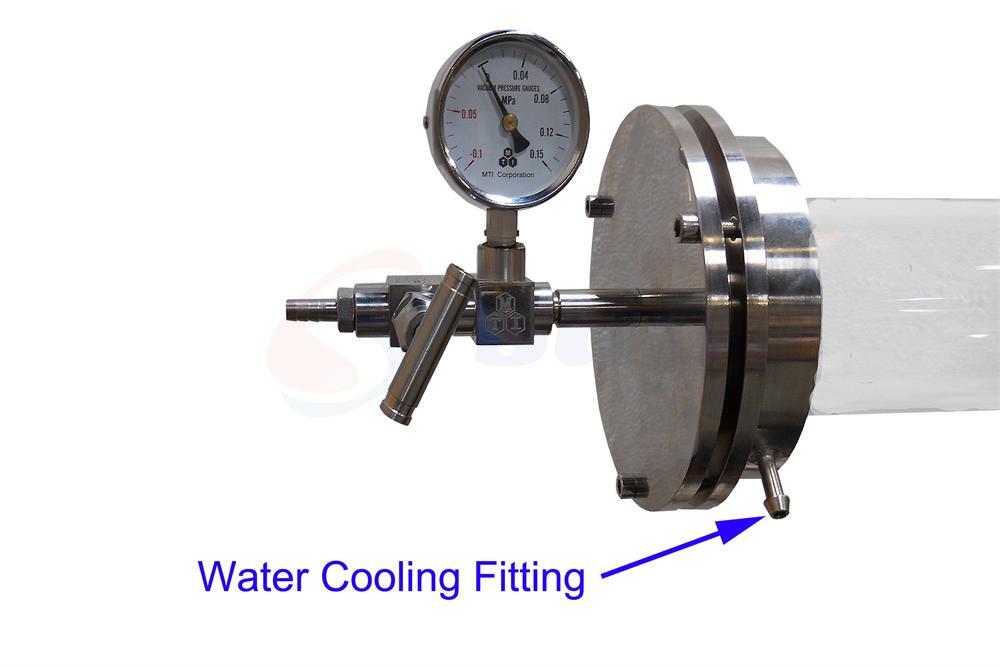

2. The digital vacuum gauge is available upon request.

Stainless steel vacuum flanges.jpg

3. Two pairs of fibrous ceramic tube blocks are included for blocking heat radiation from the inside tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating)


Sliding Rails / Table

Double sliding rail made by Cr plated steel

Sliding length: 1500 mm


Compliance

CE Certified

NRTL or CSA certification is available upon request at extra cost.

Dimensions


Dimensions:

1. furnace only: 650L × 540 W × 755 H

2. furnace + sliding: 1600L x 380W x 950 mm

Weight: 200 Kg


Warranty

One year limited manufacturer's warranty (Consumable parts such as processing tubes, O-rings and heating elements are not covered by the warranty, please order replacements at related products below).
